Control Assembly: Diagrams




Component Connector End Views

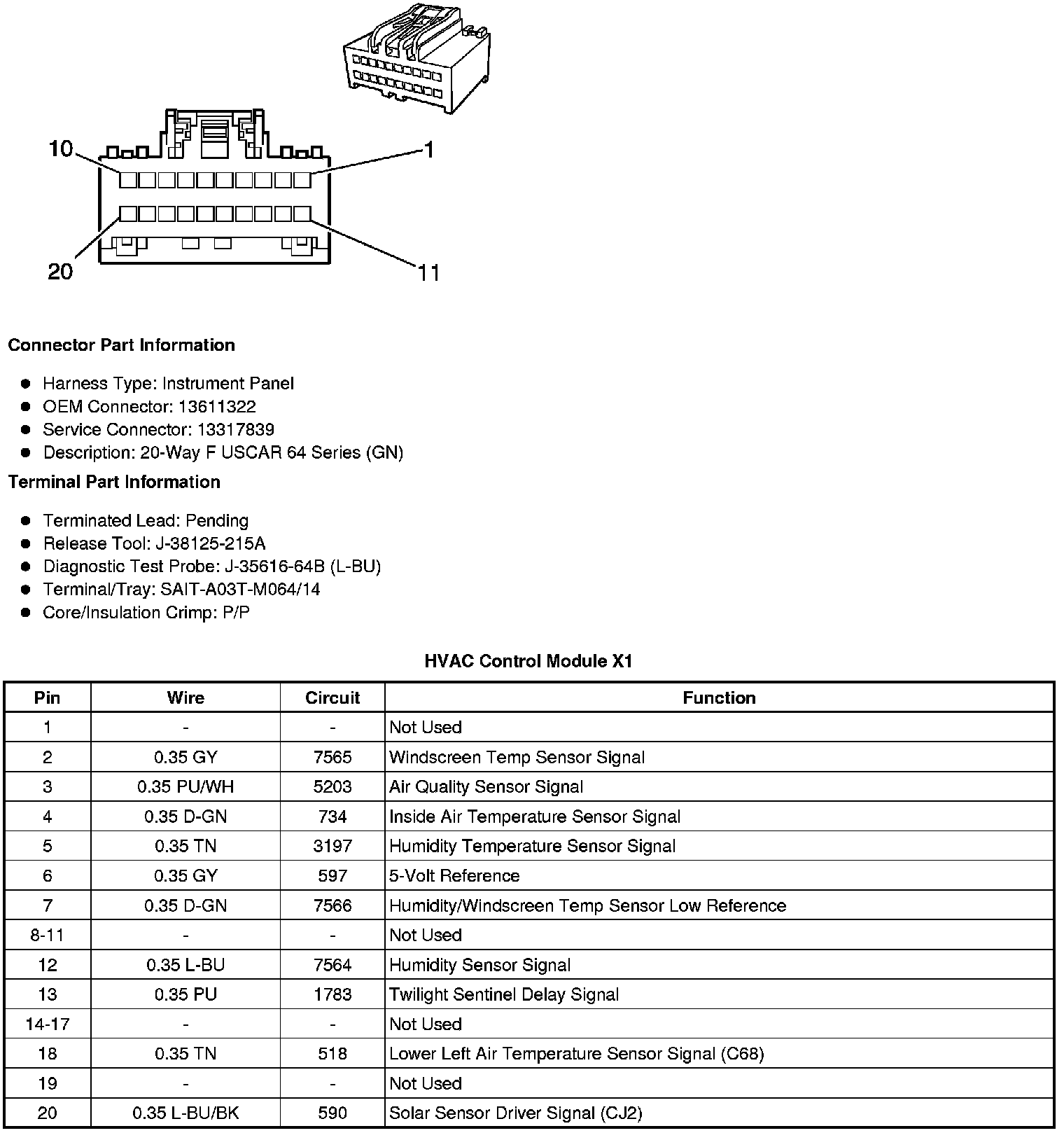

HVAC Control Module X1

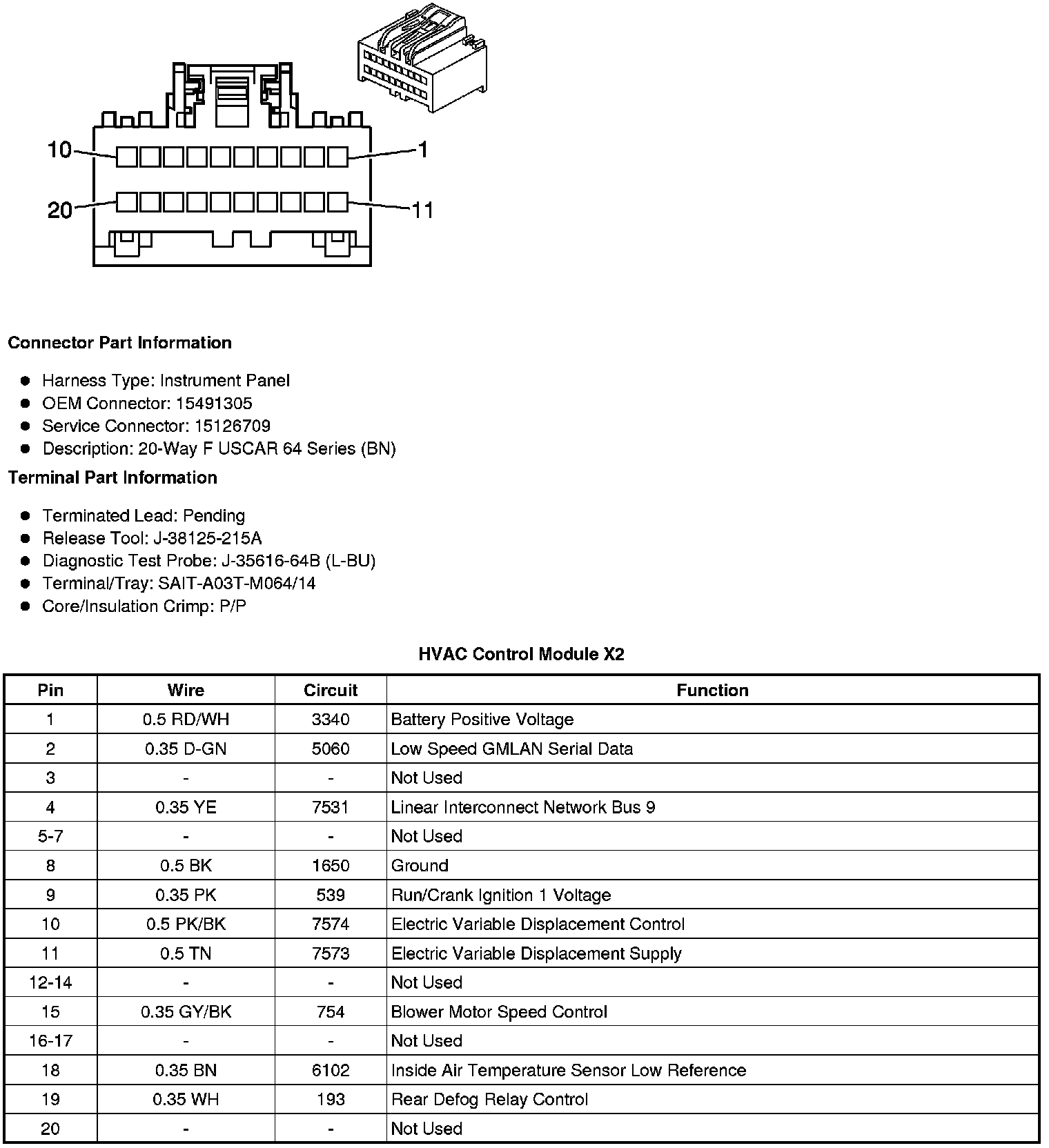

HVAC Control Module X2

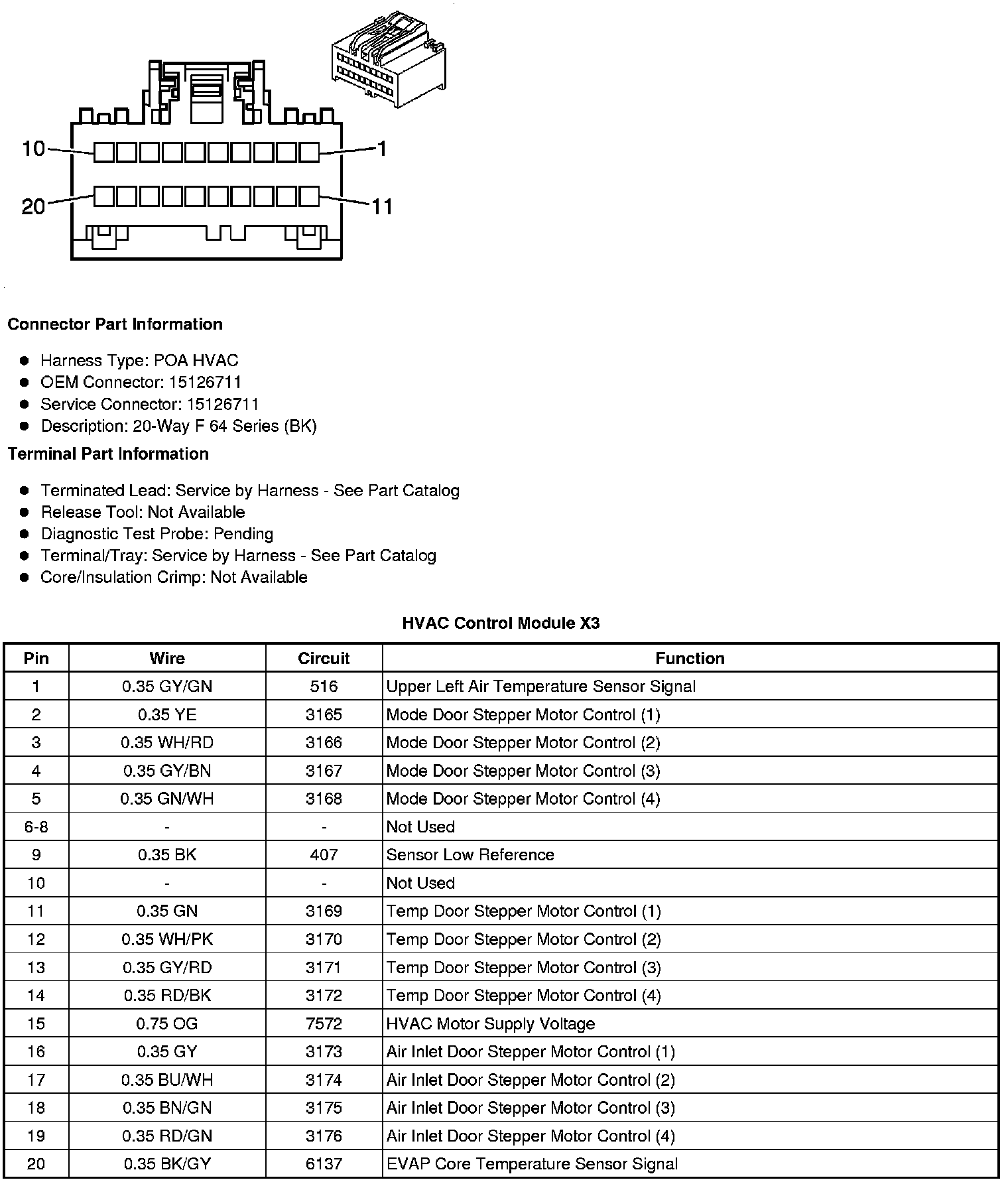

HVAC Control Module X3

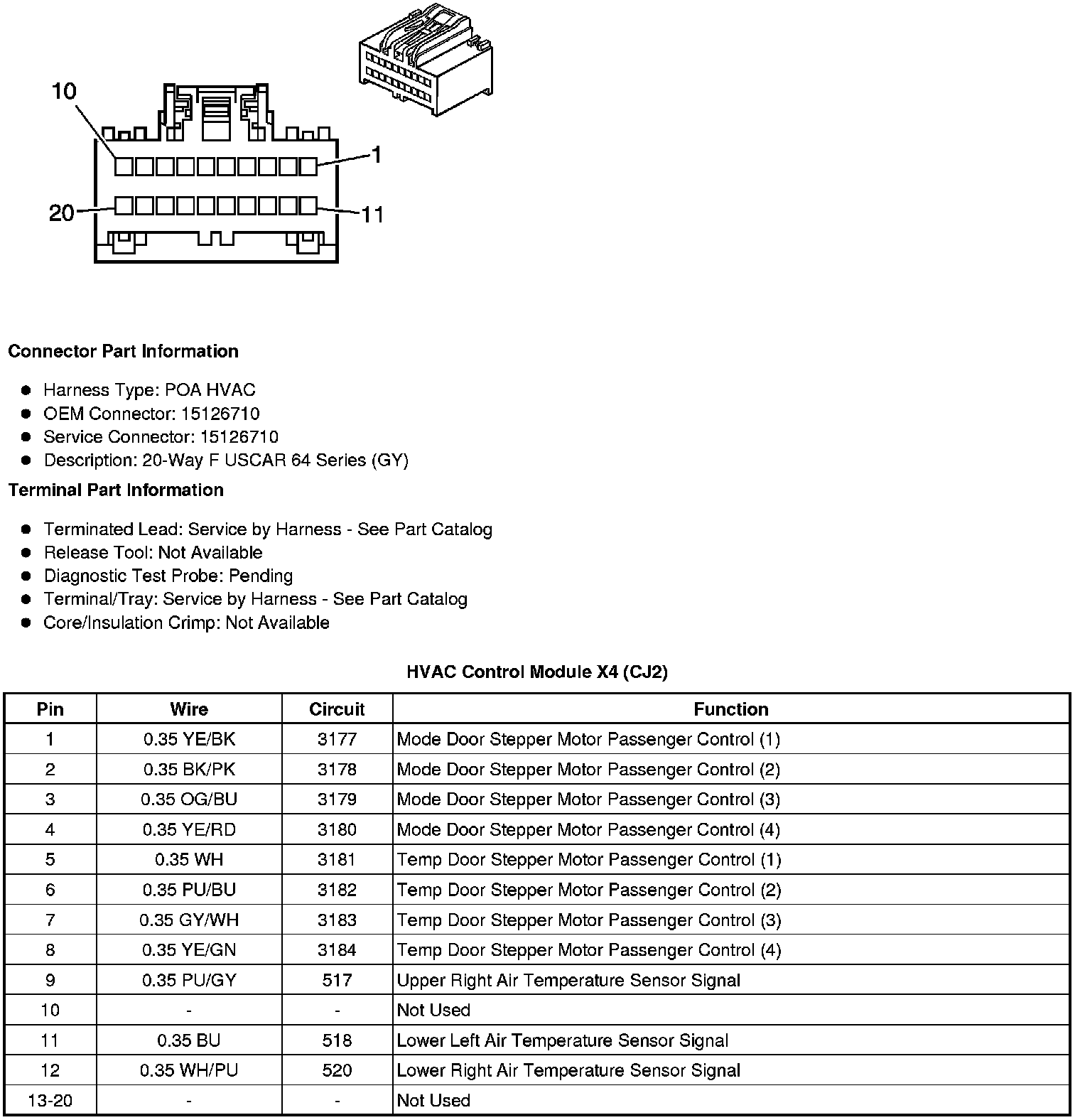

HVAC Control Module X4 (CJ2)
