Knock Sensor: Diagrams




Component Connector End Views

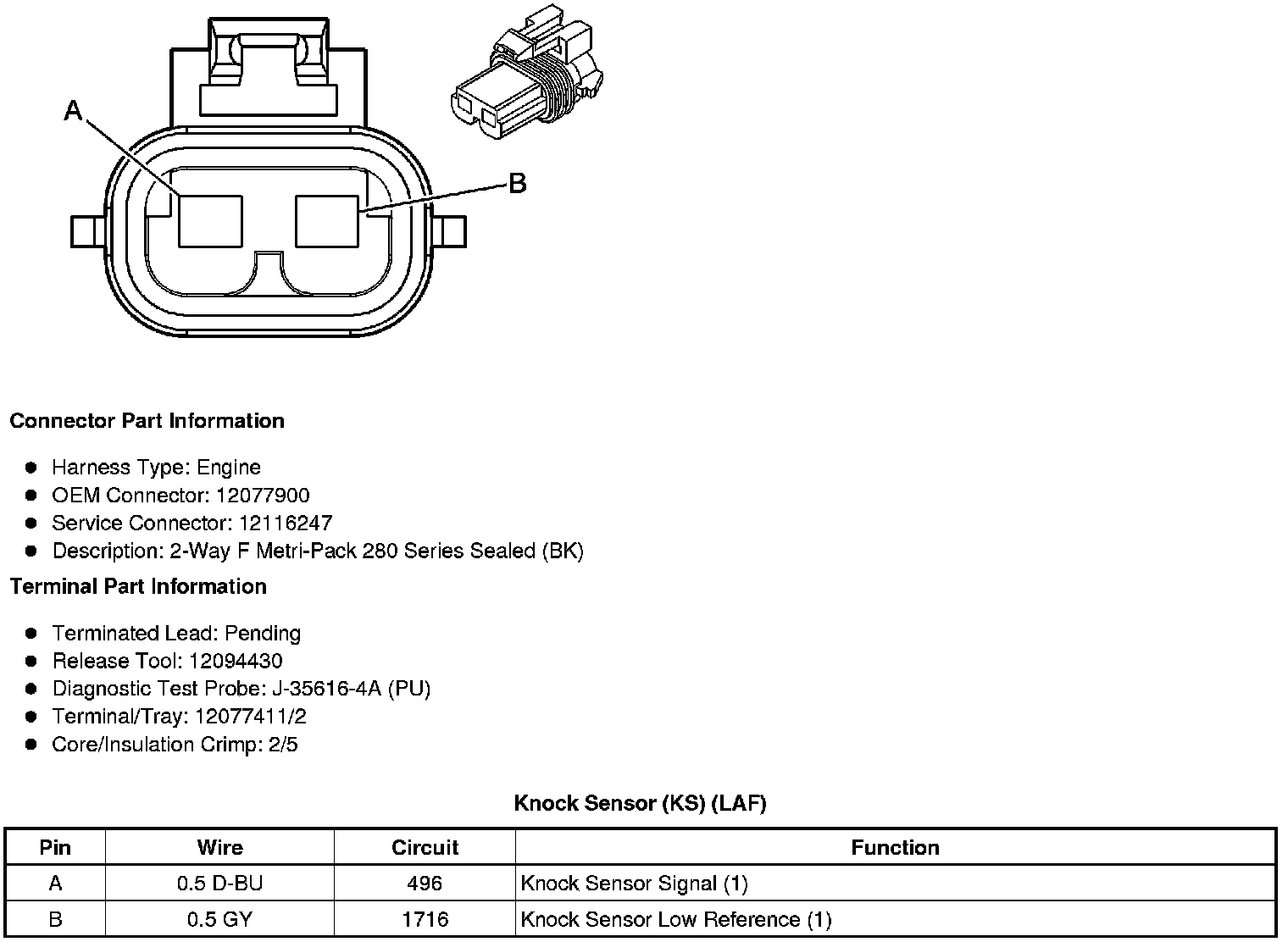

B68 Knock Sensor (KS) (LAF)





B68A Knock Sensor (KS) 1 (LF1 or LLT)

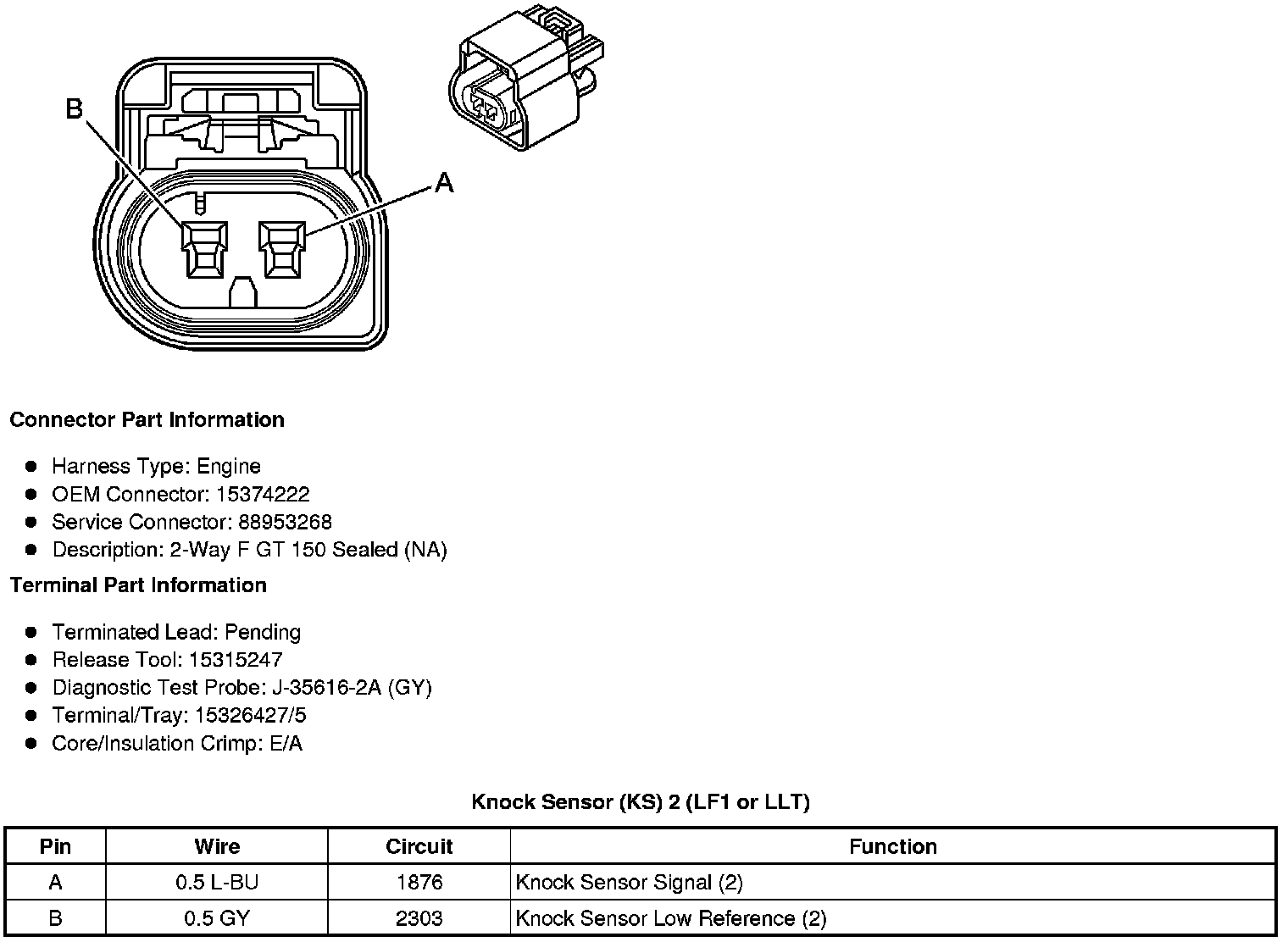

B68B Knock Sensor (KS) 2 (LF1 or LLT)
