Vertical Body Acceleration Sensor




Component Connector End Views

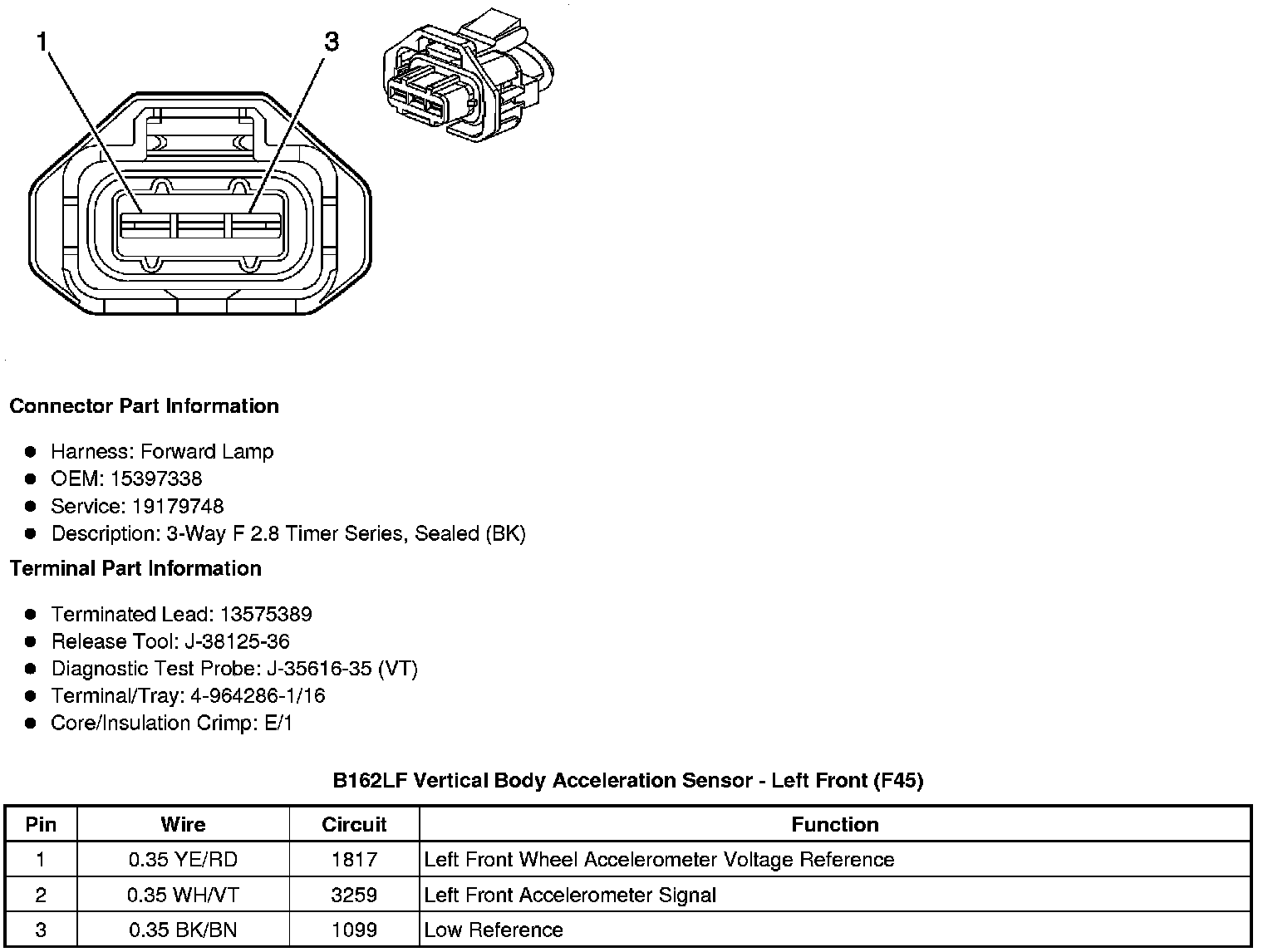

B162LF Vertical Body Acceleration Sensor - Left Front (F45)

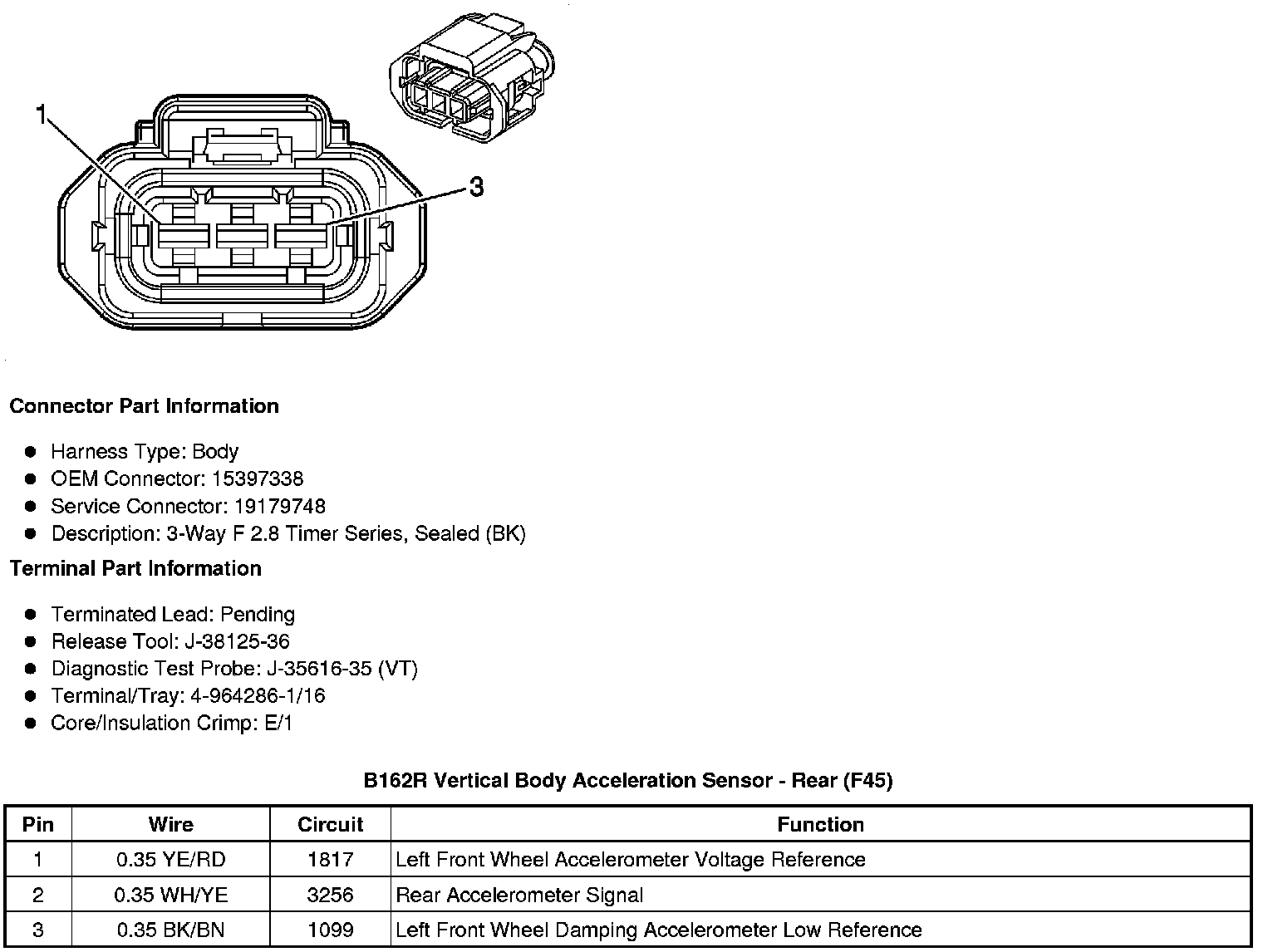

B162R Vertical Body Acceleration Sensor - Rear (F45)

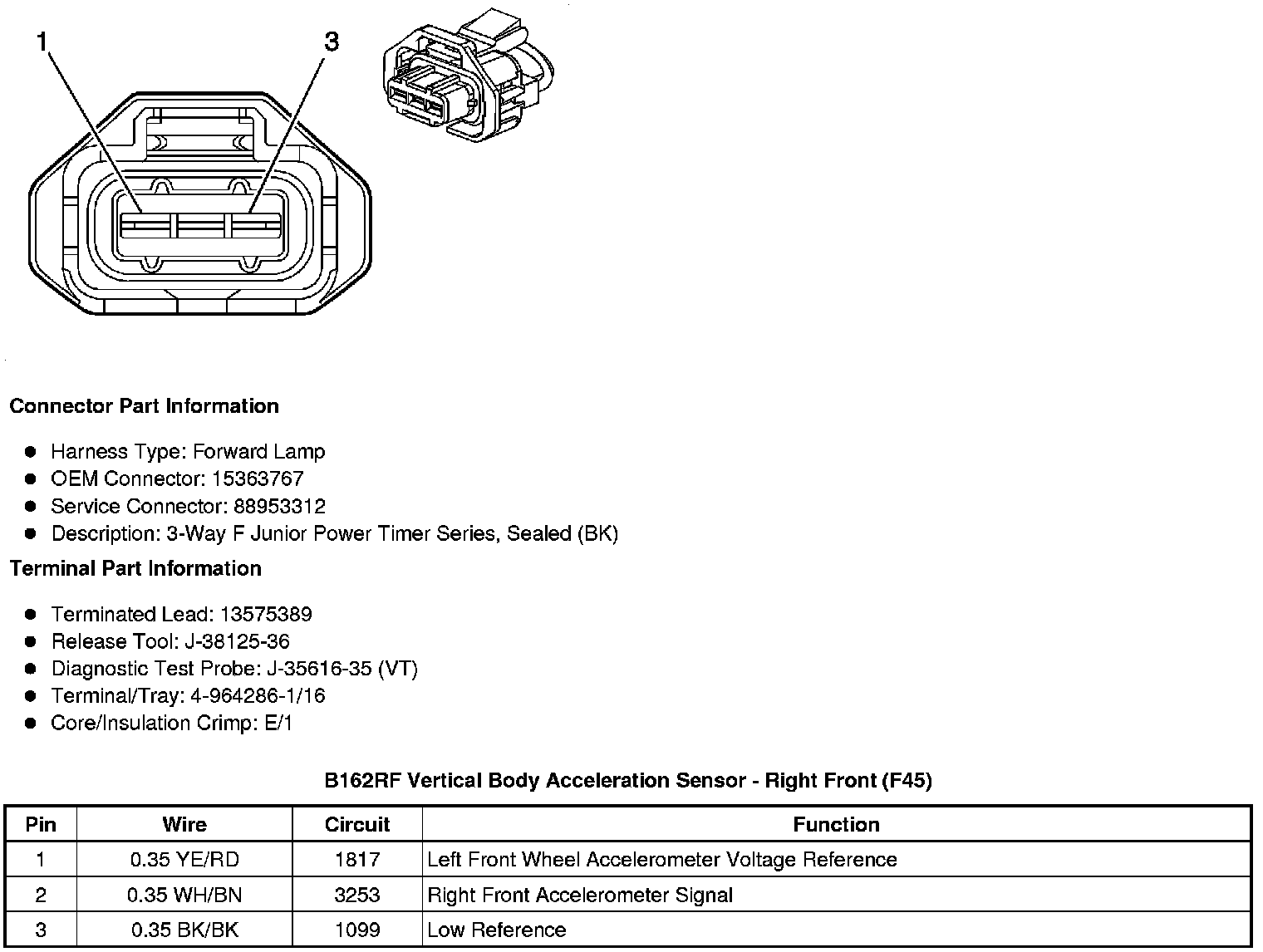

B162RF Vertical Body Acceleration Sensor - Right Front (F45)
