Power Window Motor




Component Connector End Views

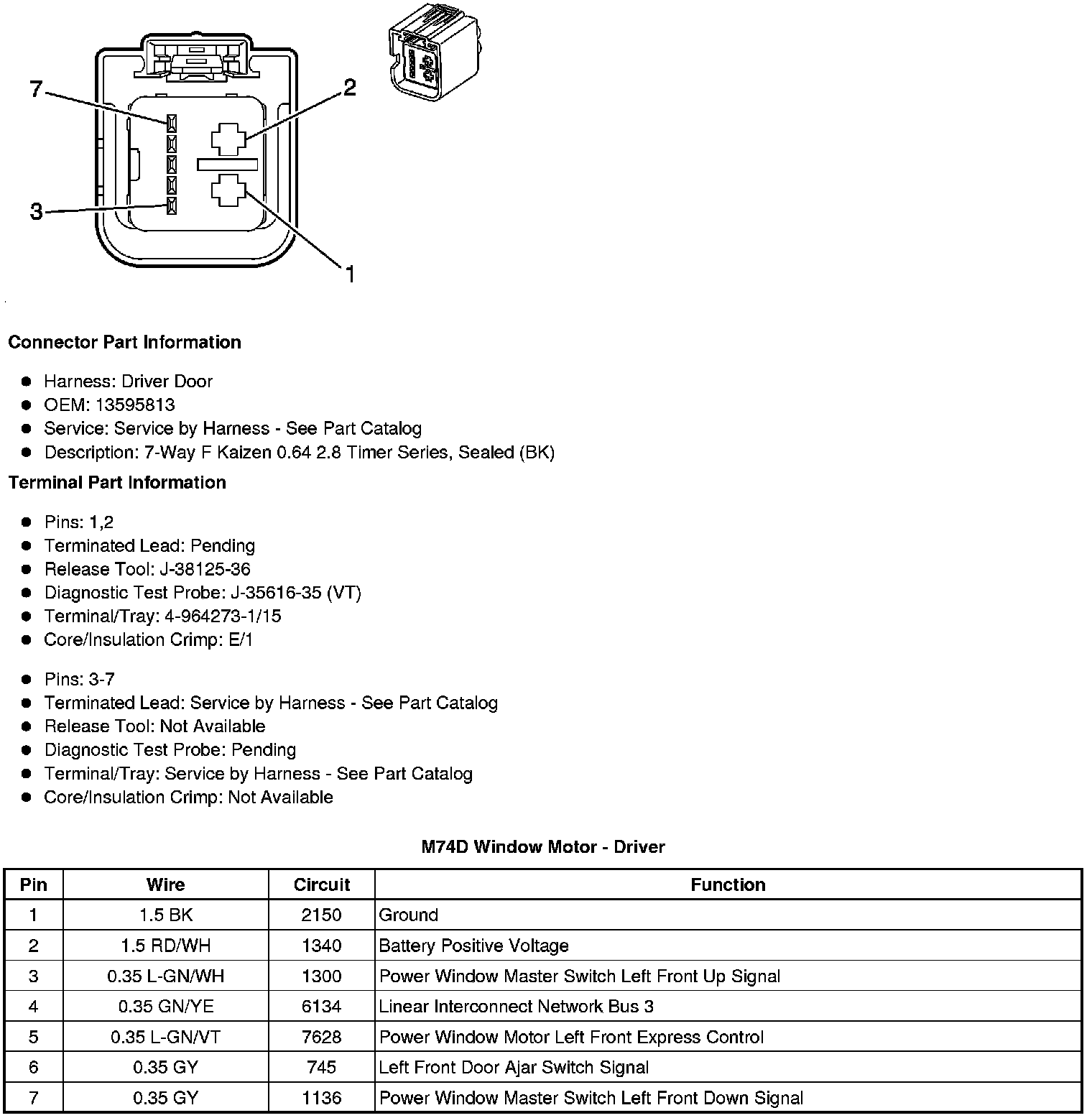

M74D Window Motor - Driver





M74LR Window Motor - Left Rear





M74P Window Motor - Passenger

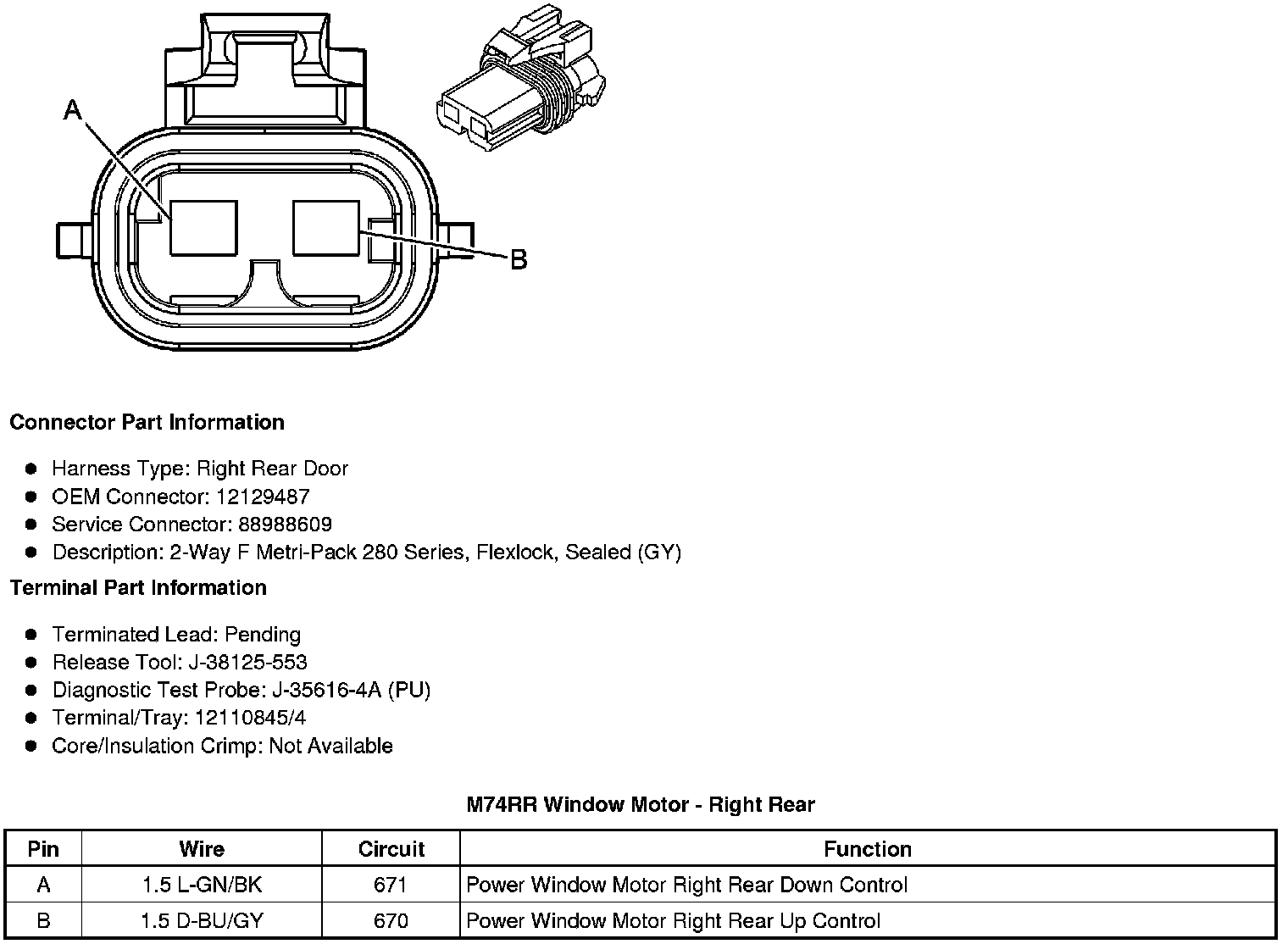

M74RR Window Motor - Right Rear
