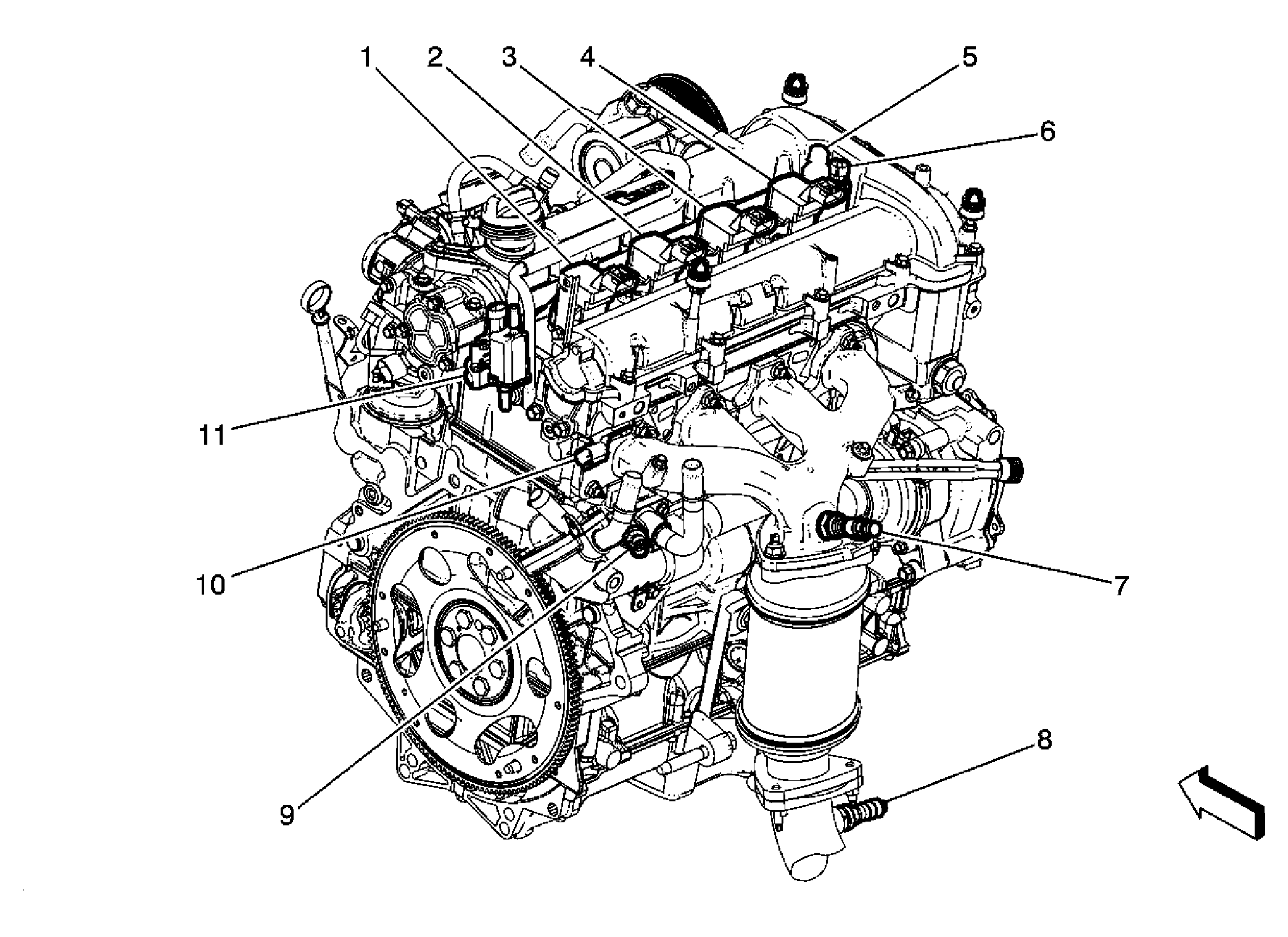

Left Rear Engine Components (LAF)
Left Rear Engine Components (LAF)
| Component Name | Callout |
|---|---|
| T8D Ignition Coil 4 | 1 |
| T8C Ignition Coil 3 | 2 |
| T8B Ignition Coil 2 | 3 |
| T8A Ignition Coil 1 | 4 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake | 5 |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust | 6 |
| B52C Heated Oxygen Sensor - Bank 1 Sensor 1 | 7 |
| B52D Heated Oxygen Sensor - Bank 1 Sensor 2 | 8 |
| B34 Engine Coolant Temperature Sensor | 9 |
| B23E Camshaft Position Sensor - Exhaust | 10 |
| Q12 Evaporative Emission Purge Solenoid Valve | 11 |
