Remote Control Door Lock Receiver Antenna Replacement

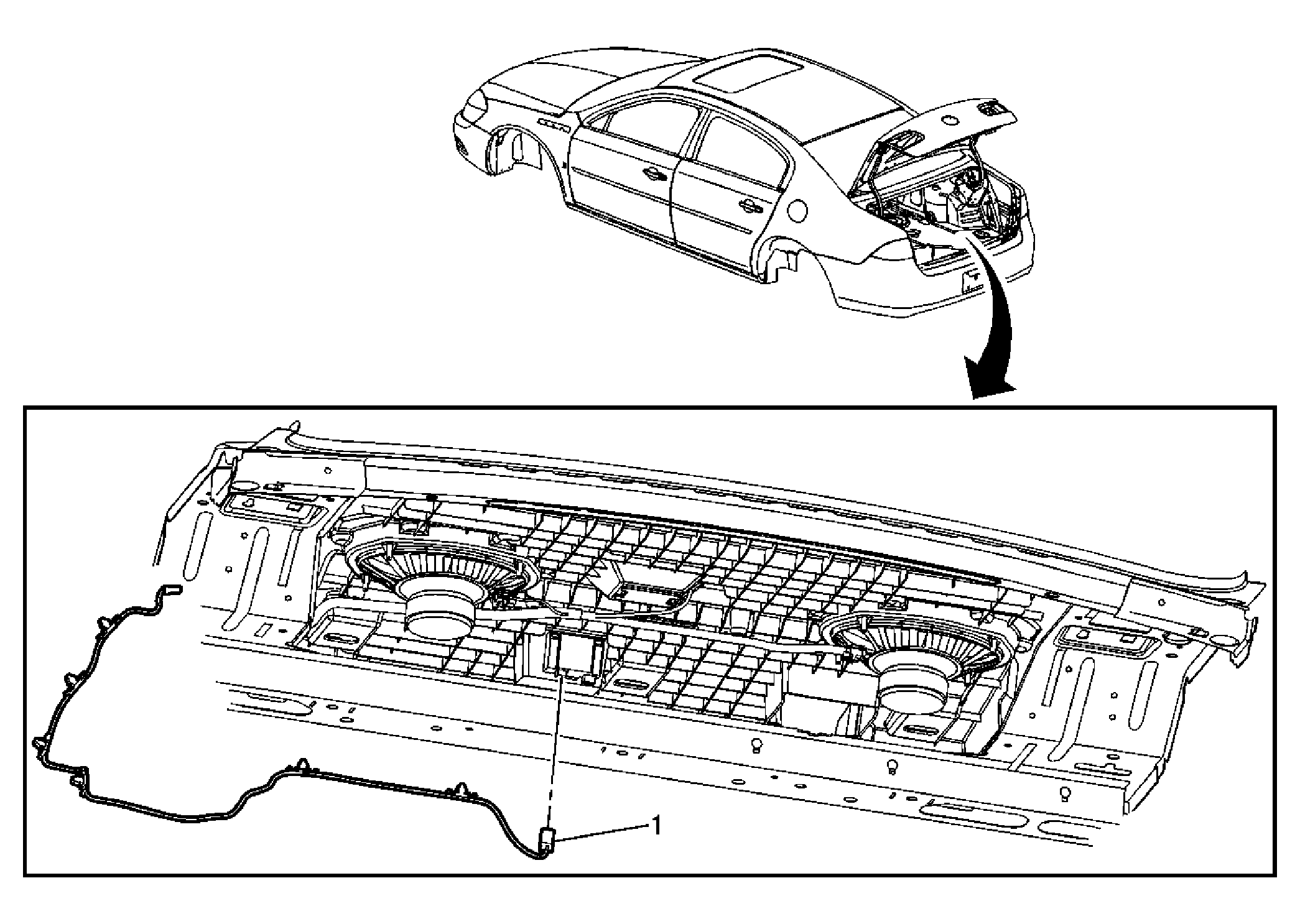

Fig 1: Locating Remote Control Door Lock Receiver Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right rear compartment side trim panel. Refer to Rear Compartment Trim Panel Replacement . Remove the left rear quarter trim panel. Refer to Quarter Upper Trim Panel Replacement .
1	Remote Control Door Lock Antenna Procedure Disconnect the antenna from the remote control door lock receiver. Note the routing of the antenna along the pillar with integral clips.

Callout

Component Name

Preliminary Procedures

Remove the right rear compartment side trim panel. Refer to Rear Compartment Trim Panel Replacement .
Remove the left rear quarter trim panel. Refer to Quarter Upper Trim Panel Replacement .

Remote Control Door Lock Antenna

Procedure
