Cornering Lamp Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

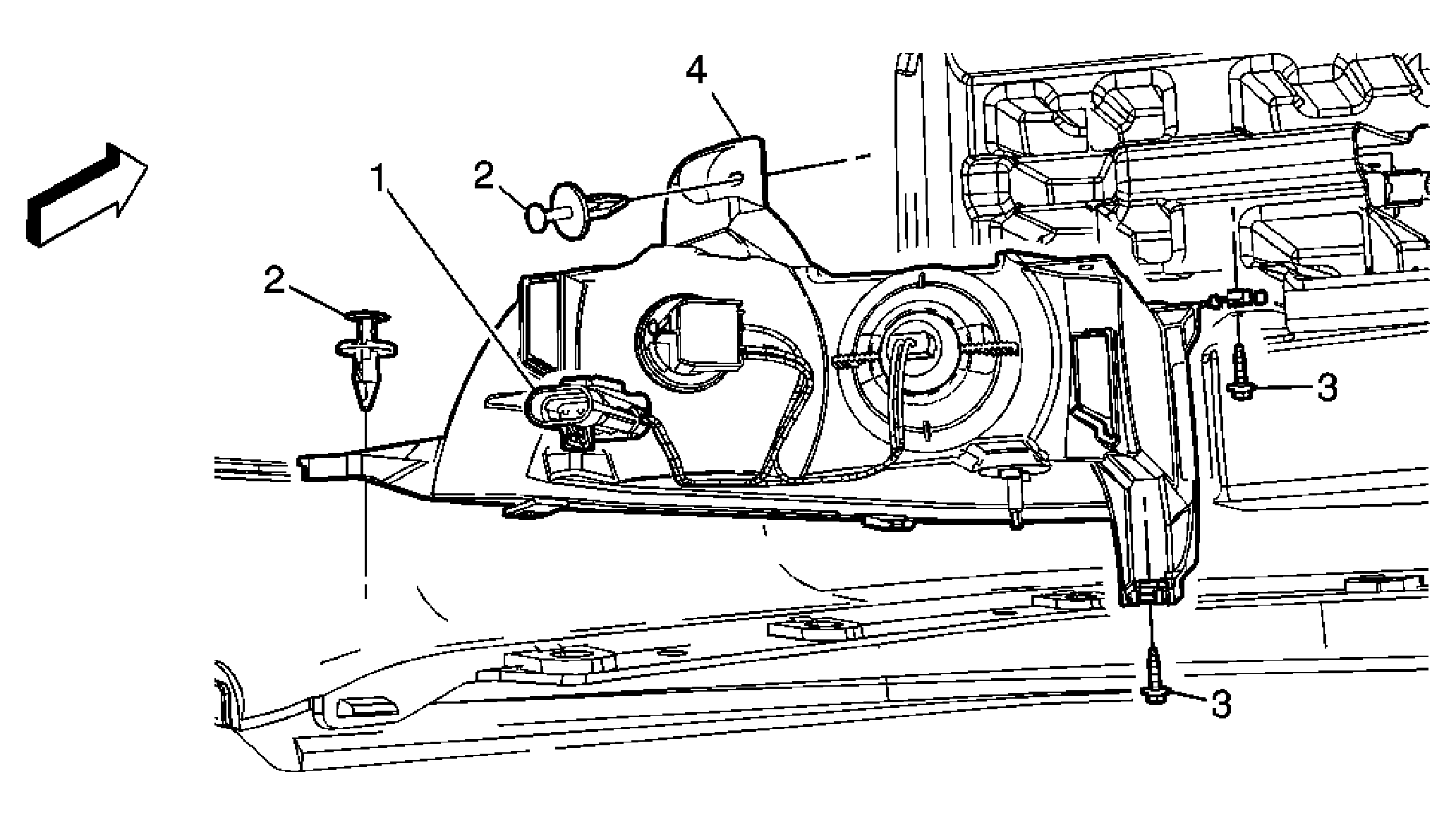

Fig 1: View Of Cornering & Front Fog Lamp Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove either the LF or RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Fog Lamp Wiring Harness Connector TIP: Disconnect the electrical harness connector from the forward lamp harness.
2	Cornering and Front Fog Lamp Assembly Retainers (Qty: 2)
3	Cornering and Front Fog Lamp Assembly Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
4	Cornering and Front Fog Lamp Assembly TIP: Rotate the rear edge of the cornering lamp inward to release the lamp from the front bumper energy absorber.
