Instrument Panel Compartment Lamp Switch Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

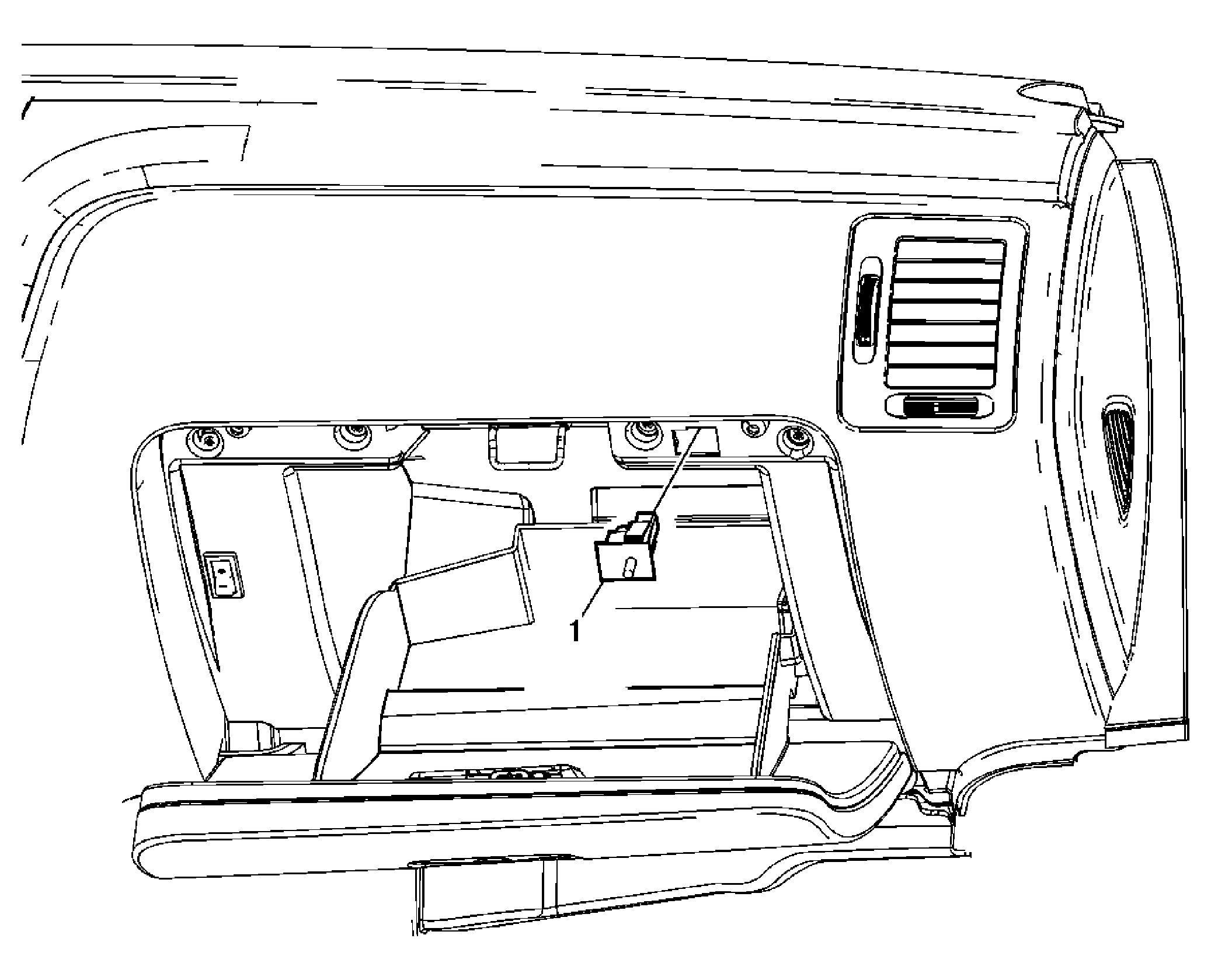

Fig 1: Instrument Panel (I/P) Compartment Lamp Switch Replacement
GM1640520Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Lamp Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Instrument Panel Compartment Lamp Switch
  1. Use a small flat bladed tool to release the switch from the storage compartment.
  2. Disconnect the electrical connector.
