LED Circuit Board Replacement

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

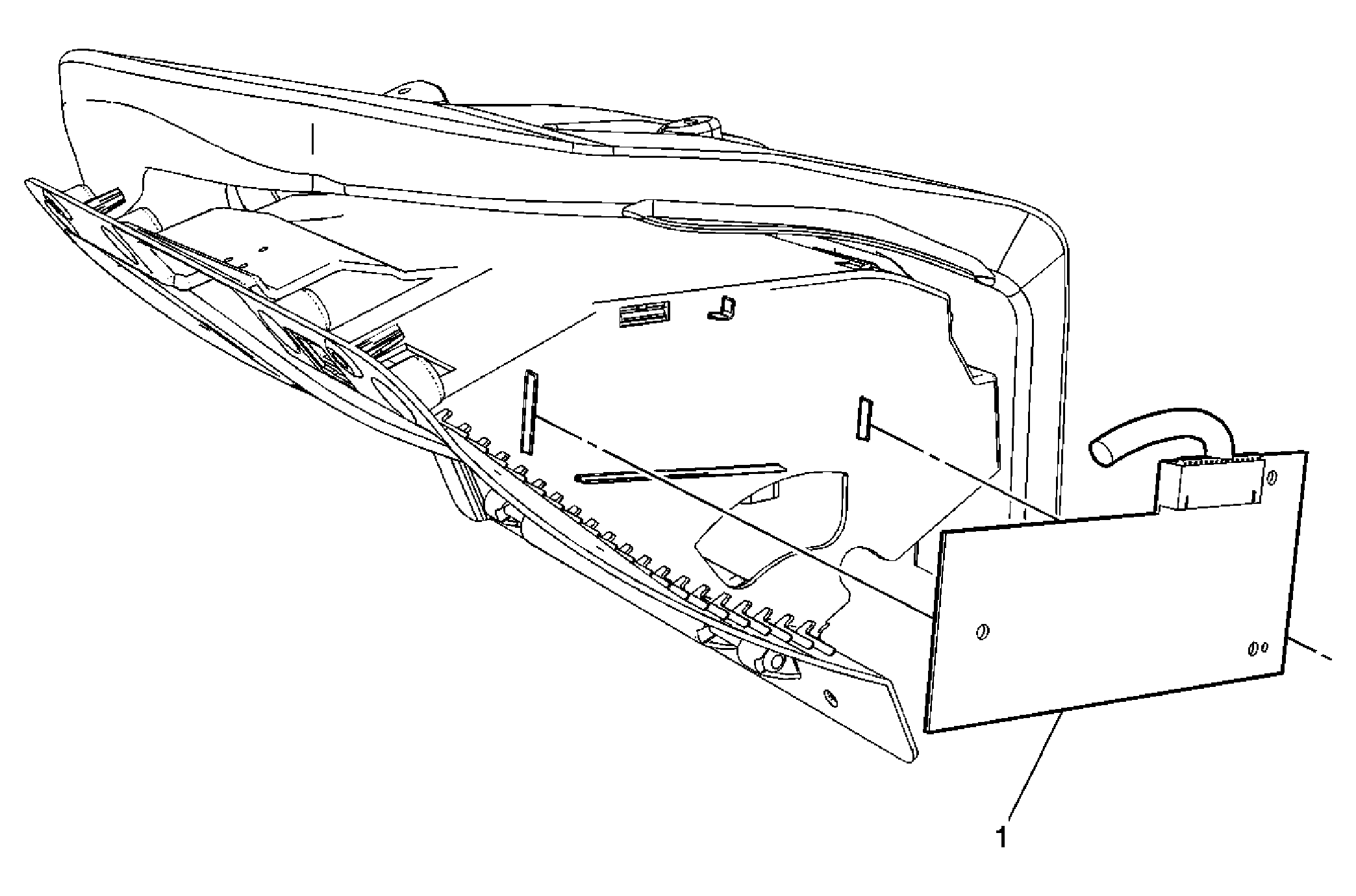

Fig 1: Locating LED Circuit Board

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel (I/P) compartment. Refer to Instrument Panel Compartment Replacement .
1	LED Circuit Board Procedure Unsnap the circuit board from the glove box. Disconnect the electrical connection.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel (I/P) compartment. Refer to Instrument Panel Compartment Replacement .

LED Circuit Board

Procedure

Unsnap the circuit board from the glove box.
Disconnect the electrical connection.
