Removal Procedure

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

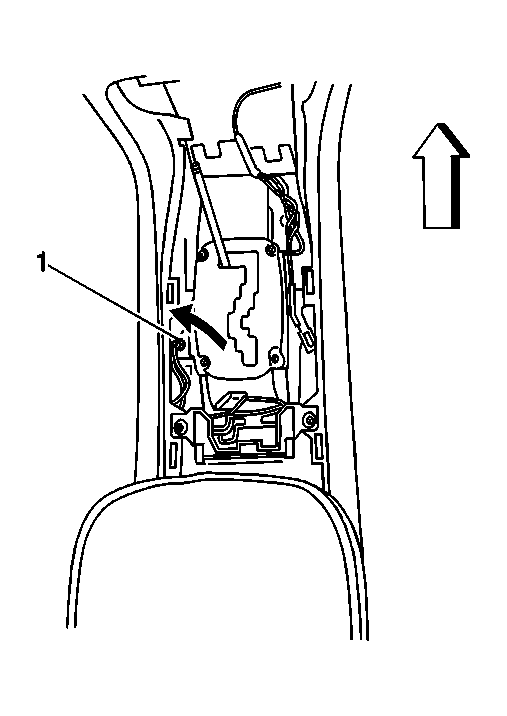

Fig 1: View of Shift Indicator Lamp Socket

Courtesy of GENERAL MOTORS COMPANY

Remove the console center trim plate. Refer to Front Floor Console Trim Plate Replacement .
Rotate the shift indicator lamp socket (1) counterclockwise in order to release the lamp and socket (1) from the shifter assembly.
Remove the lamp and socket (1) from the shifter assembly.

Fig 2: View of Shift Indicator Lamp

Courtesy of GENERAL MOTORS COMPANY

Remove then shift indicator lamp (1) from the lamp socket.
