HVAC Module Components (C67)

HVAC Module Components (C67)

Component Name Callout
Blower Motor 1
Blower Motor Control Module 2
Recirculation Actuator 3
EVAP Temperature Sensor 4
Air Temperature Actuator 5
Mode Actuator 6

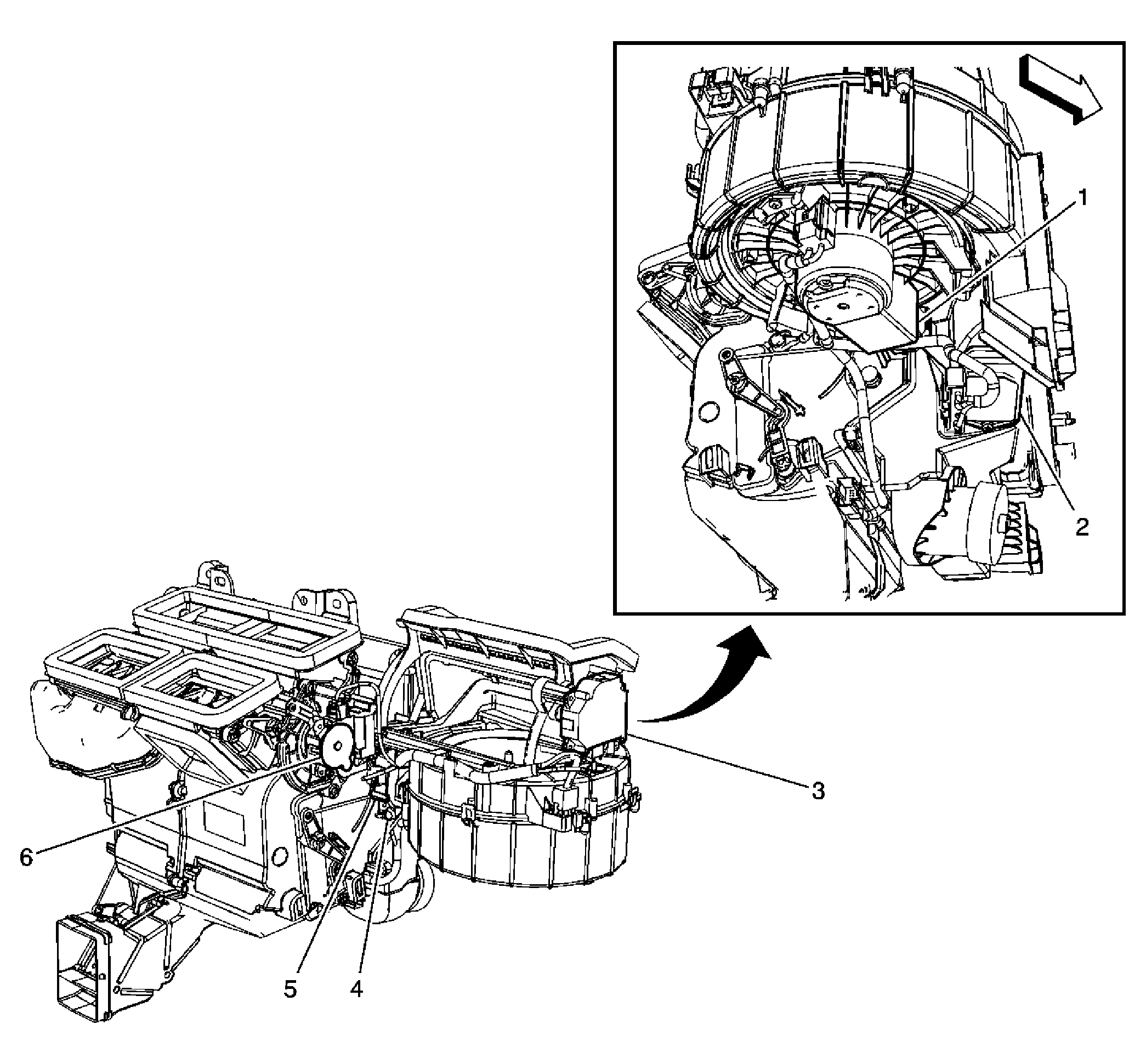

Fig 1: HVAC Module Components (C67)
GM1707697Courtesy of GENERAL MOTORS COMPANY
