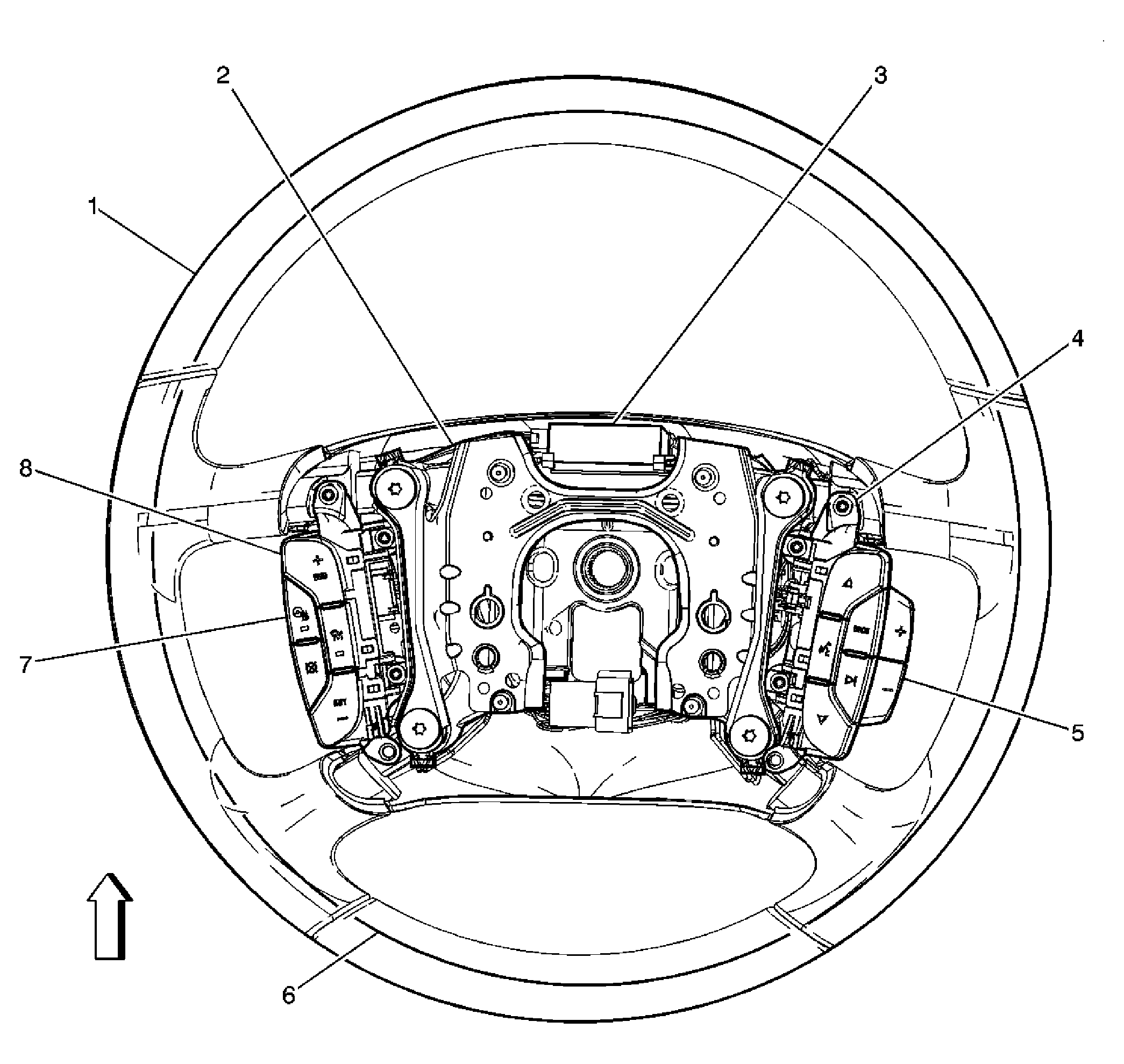

Steering Wheel Assembly Components
Steering Wheel Assembly Components
| Component Name | Callout |
|---|---|
| Heated Steering Wheel Element - Left (NR7/NSH) | 1 |
| Horn Switch | 2 |
| Heated Steering Wheel Module (NR7/NSH) | 3 |
| Steering Wheel Control Switch - Right | 4 |
| Radio Volume Switch | 5 |
| Heated Steering Wheel Element (NR7/NSH) | 6 |
| Heated Steering Wheel Switch (NR7/NSH) | 7 |
| Cruise Control Switch | 8 |
