Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

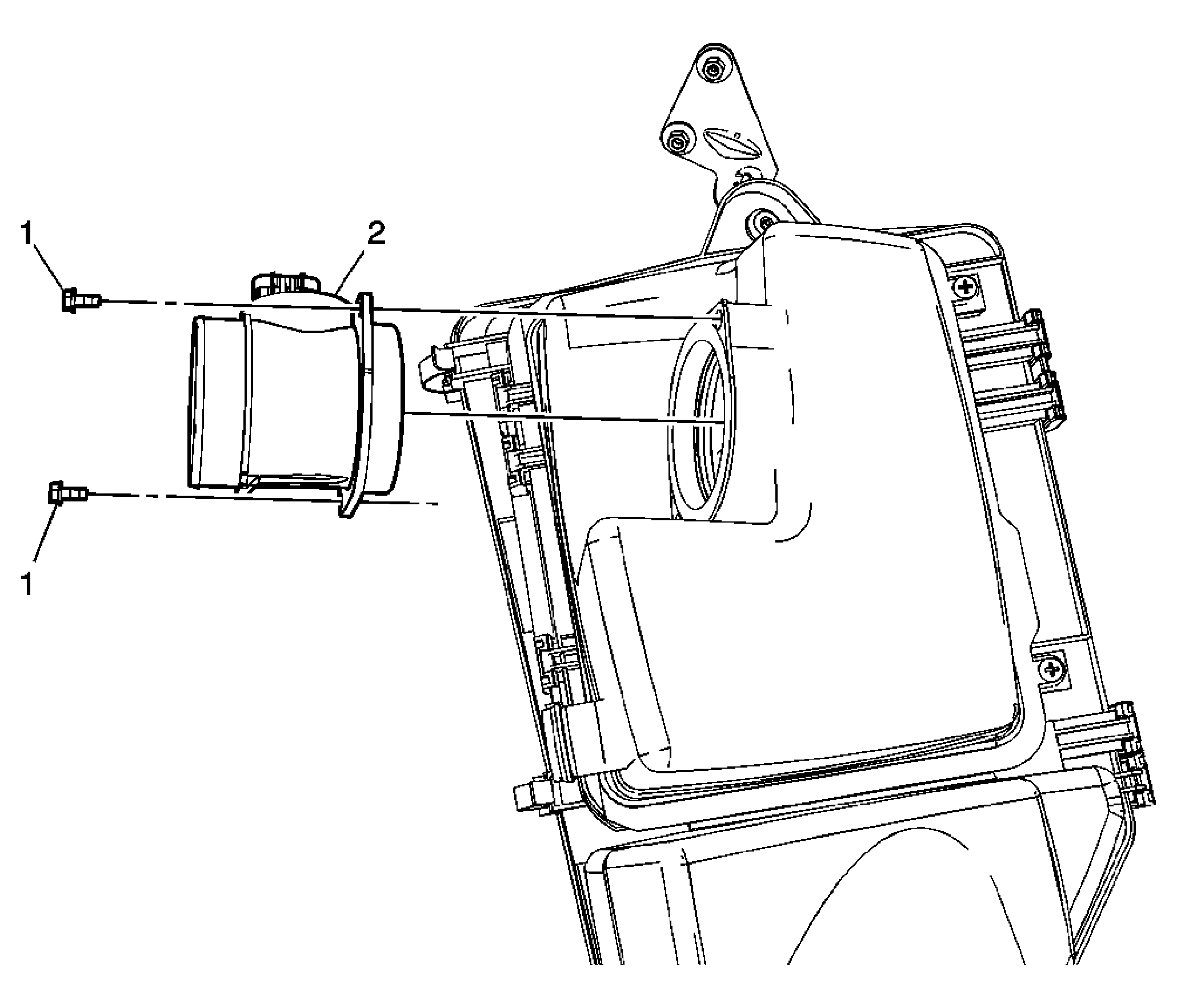

Fig 1: Identifying Mass Airflow Sensor/Intake Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout	Component Name
Preliminary Procedure  Disconnect the air outlet duct from the mass air flow sensor. Refer to Air Cleaner Outlet Duct Replacement .
1	Mass Airflow Sensor/Intake Air Temperature Sensor Bolt (Qty: 2) Tighten  4 N.m (35 lb in)
2	Mass Airflow Sensor/Intake Air Temperature Sensor Procedure  Disconnect the electrical connector.
