Front of Engine Components (L37 1of 2)

Front of Engine Components (L37 1of 2)

Component Name Callout
Valve Cover 1
Ignition Coil/Module 2 2
Ignition Coil/Module 4 3
Ignition Coil/Module 6 4
Ignition Coil/Module 8 5
Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 6
Engine Oil Pressure (EOP) Switch 7

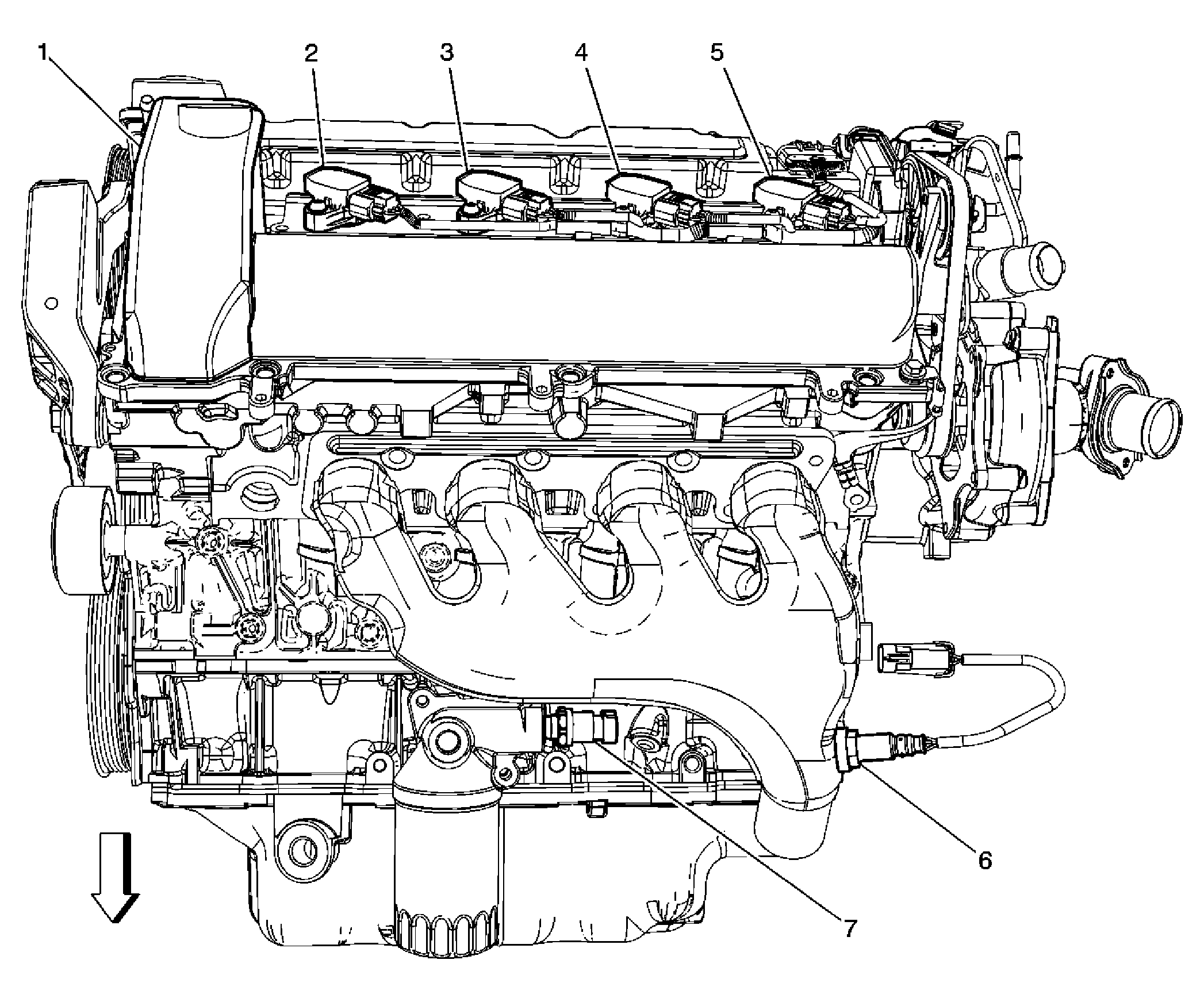

Fig 1: Front of Engine (L37/LD8) Component Views
GM1657286Courtesy of GENERAL MOTORS COMPANY
