Air Injection Control Valve

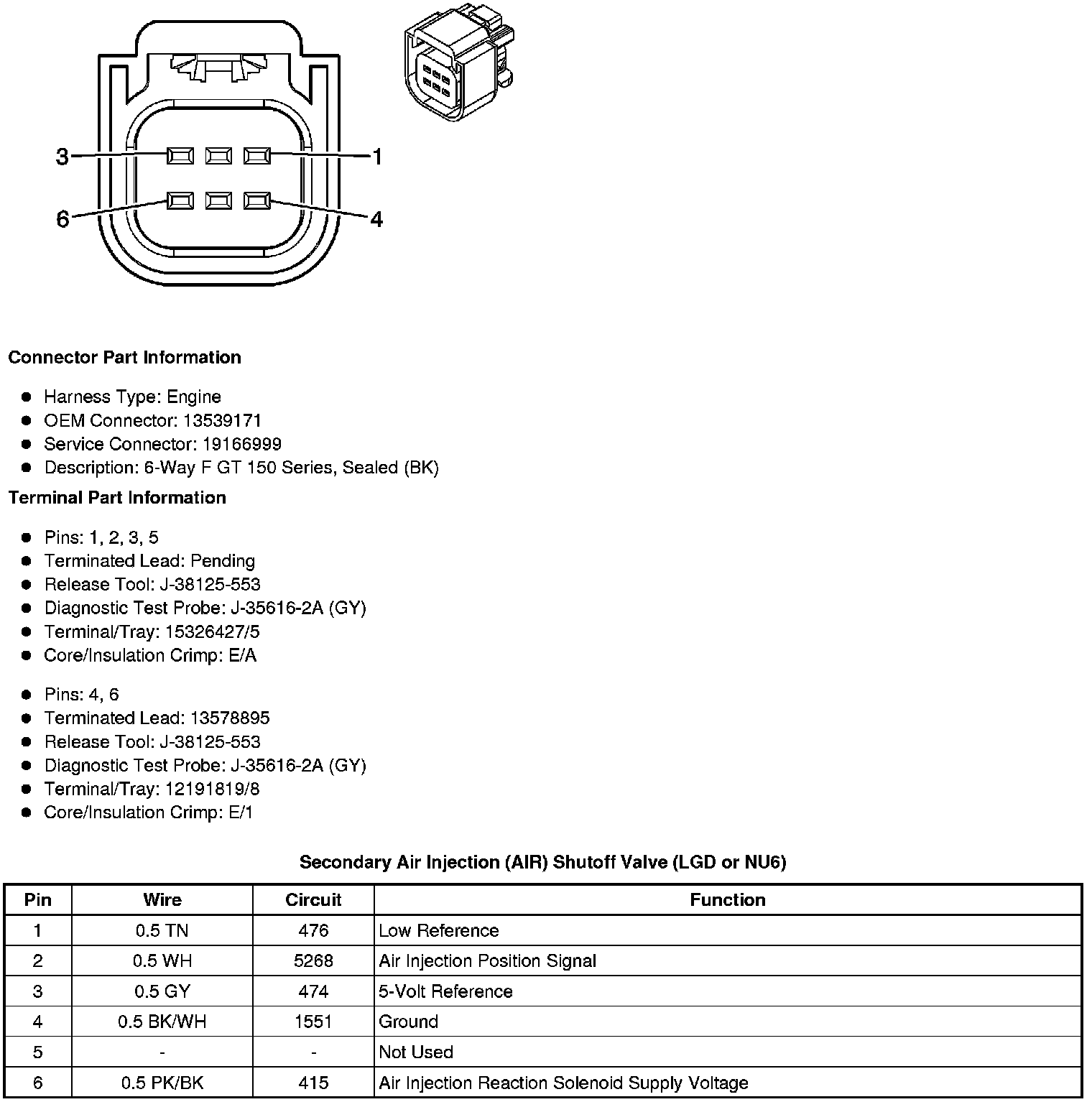

Component Connector End Views
Secondary Air Injection (AIR) Shutoff Valve (LGD or NU6)
