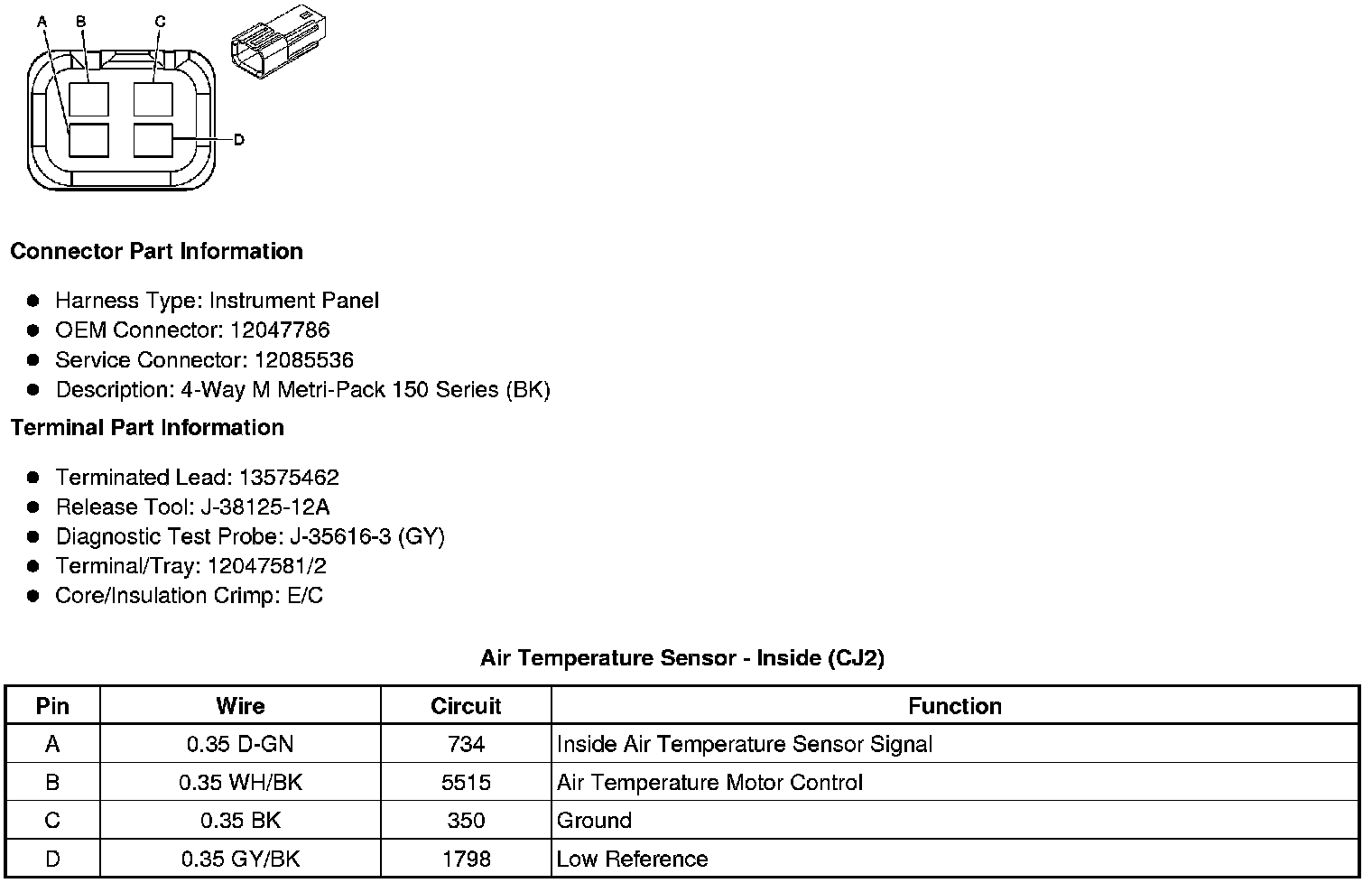

Cabin Temperature Sensor / Switch
Component Connector End Views
Air Temperature Sensor - Inside (CJ2)
