Automatic Transmission Components (MH1)

Powertrain Component Views

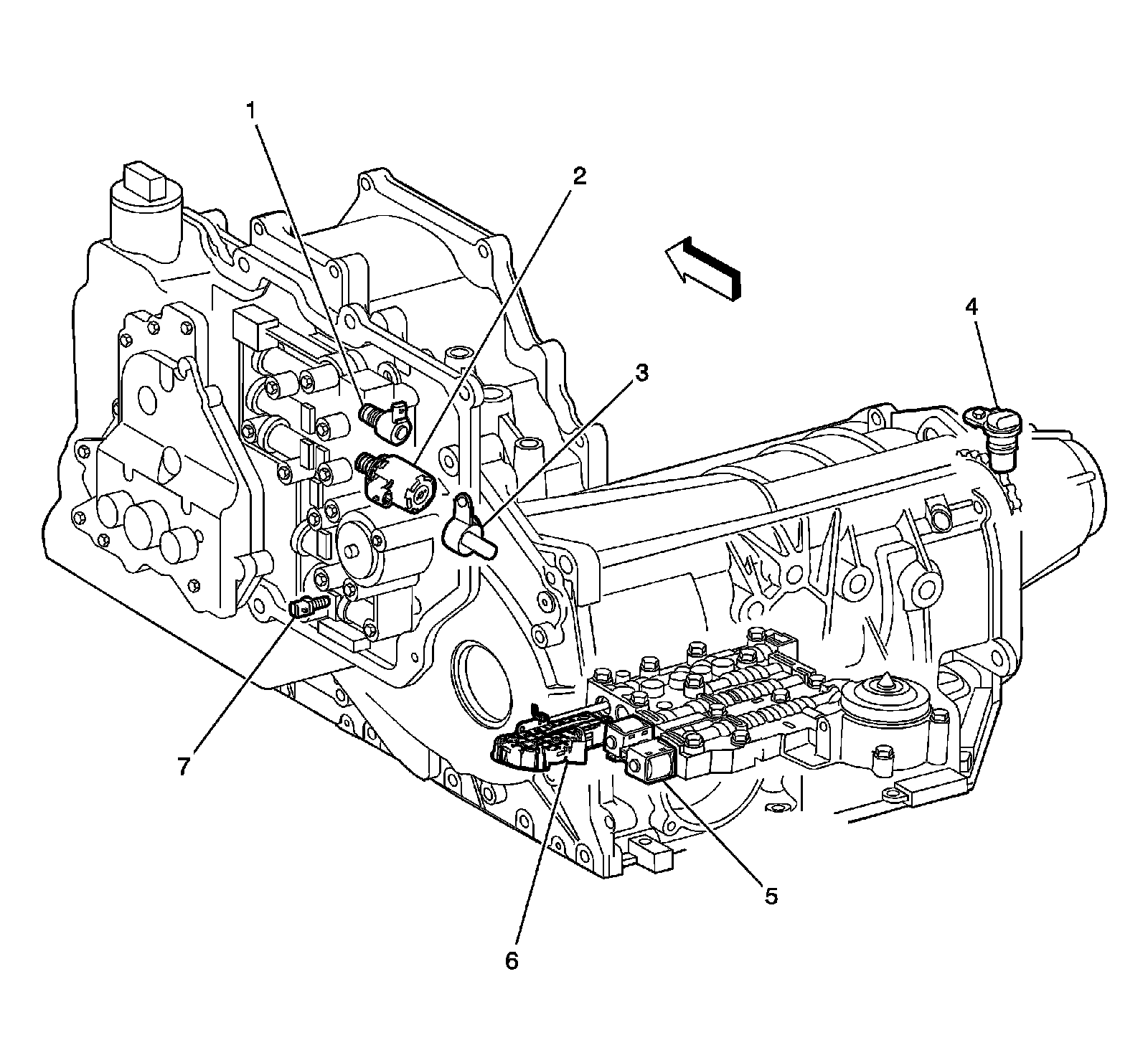

Automatic Transmission Components (MH1)




1 - Torque Converter Clutch (TCC) Pulse Width Modulated (PWM) Solenoid Valve
2 - Pressure Control Solenoid (PCS) Valve
3 - Automatic Transmission Input Shaft Speed (ISS) Sensor
4 - Automatic Transmission Output Shaft Speed (OSS) Sensor
5 - 1-2 and 2-3 Shift Solenoid (1-2 SS) (2-3 SS) Valves
6 - Automatic Transmission Internal Mode Switch (IMS)
7 - Automatic Transmission Fluid Temperature (TFT) Sensor
