Oxygen Sensor: Diagrams




Component Connector End Views

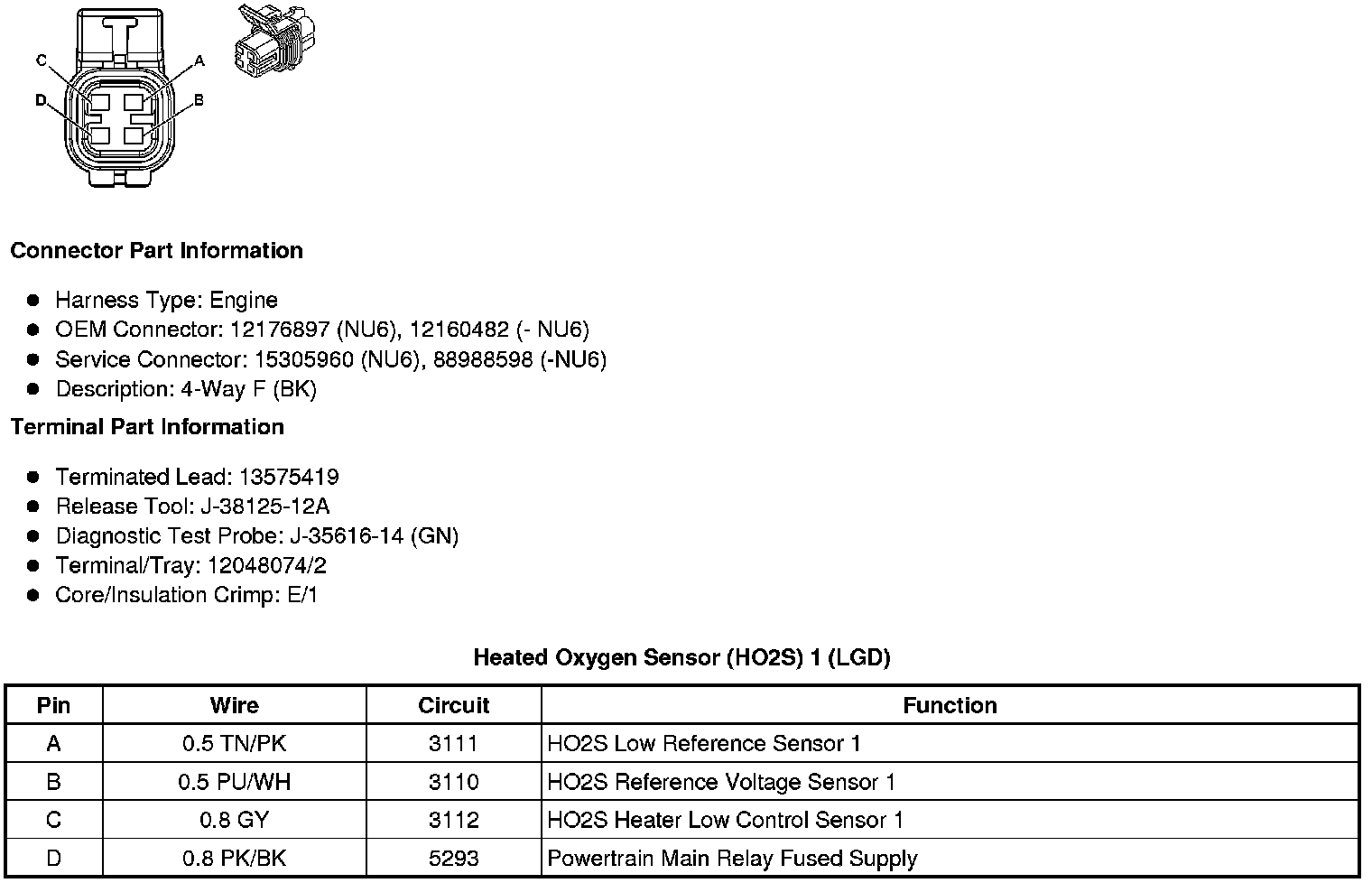

Heated Oxygen Sensor (HO2S) 1 (LGD)

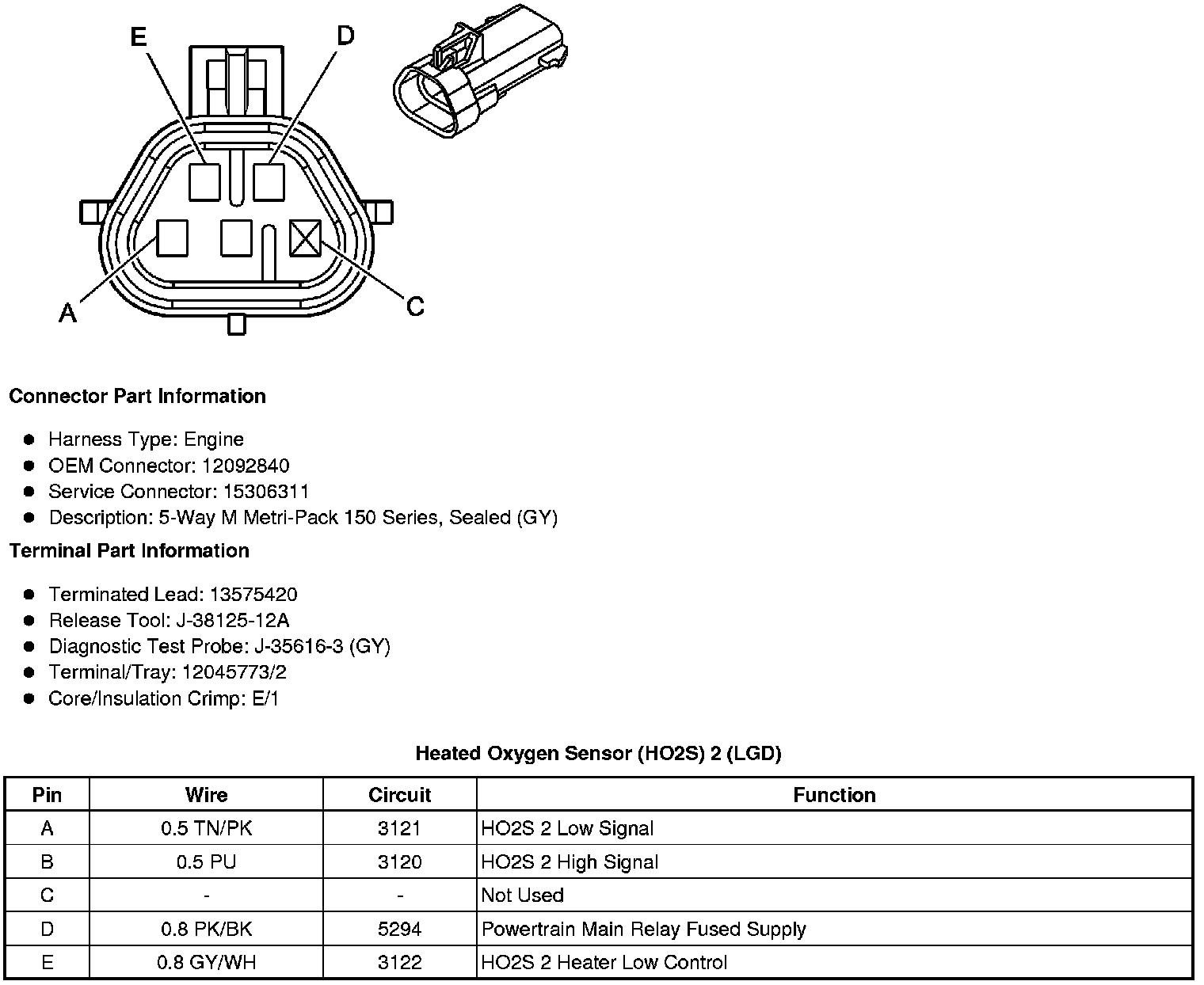

Heated Oxygen Sensor (HO2S) 2 (LGD)
