Central Control Module: Locations

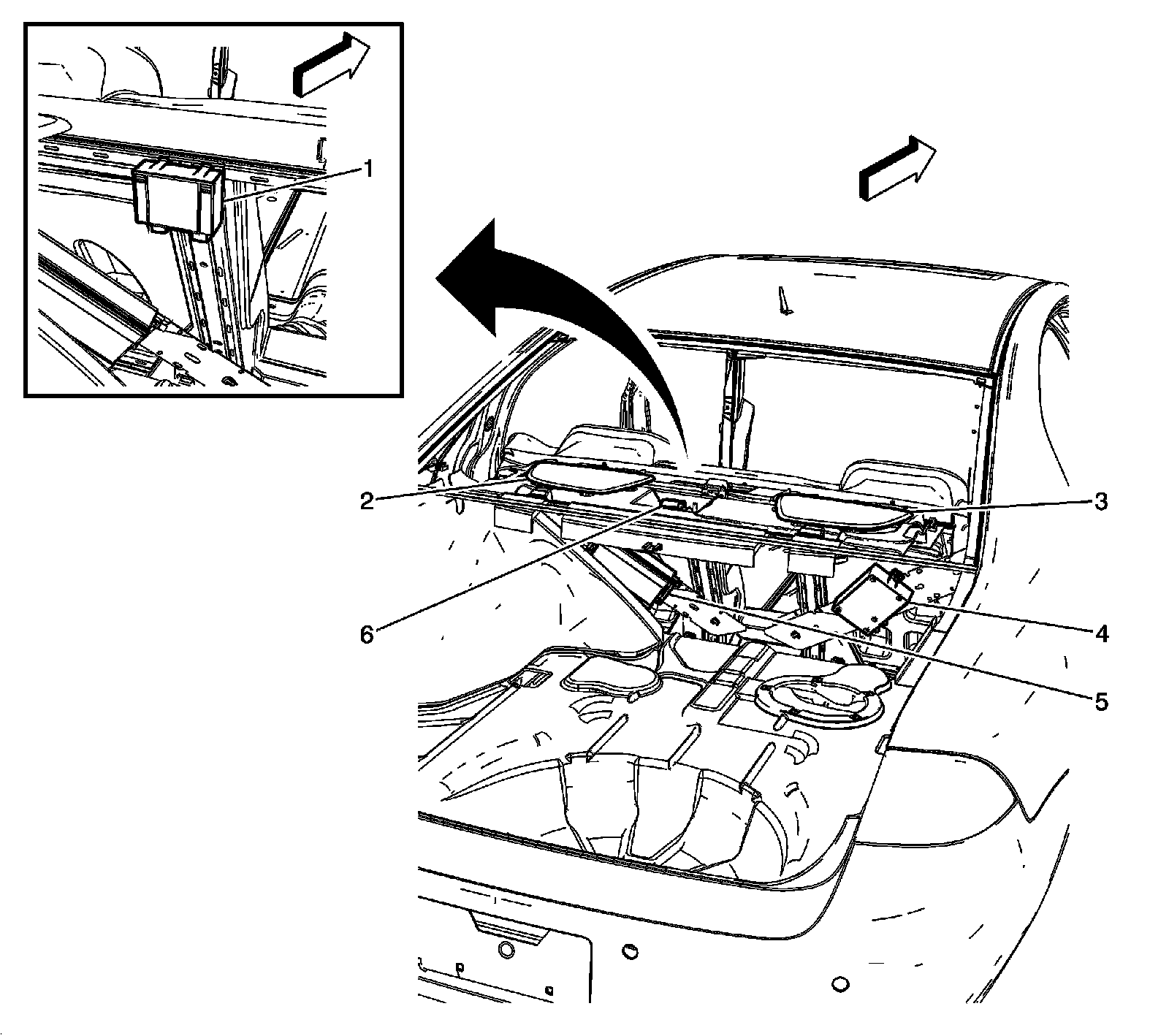

Luggage Compartment/Rear of Vehicle Component Views

Behind the Rear Seat Components




1 - Remote Control Door Lock Receiver (RCDLR)
2 - Speaker - Left Rear Compartment
3 - Speaker - Right Rear Compartment
4 - Vehicle Communication Interface Module (VCIM) (UE1)
5 - Audio Amplifier (UQA)
6 - Rear Compartment Courtesy Lamp
