Fuel Injector




Component Connector End Views

Fuel Injector 1 (L37)






Fuel Injector 2 (L37)






Fuel Injector 3 (L37)

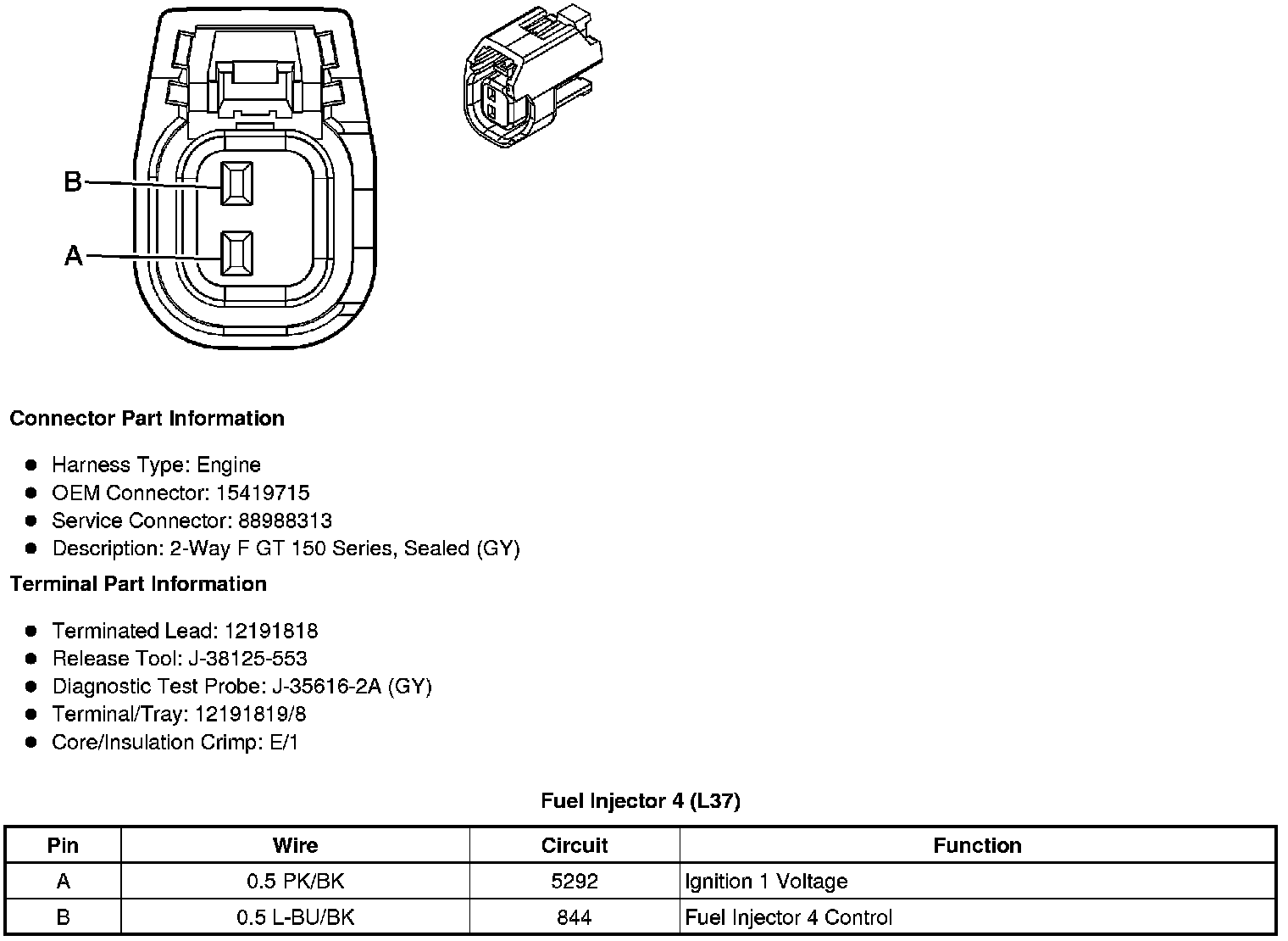

Fuel Injector 4 (L37)






Fuel Injector 5 (L37)






Fuel Injector 6 (L37)

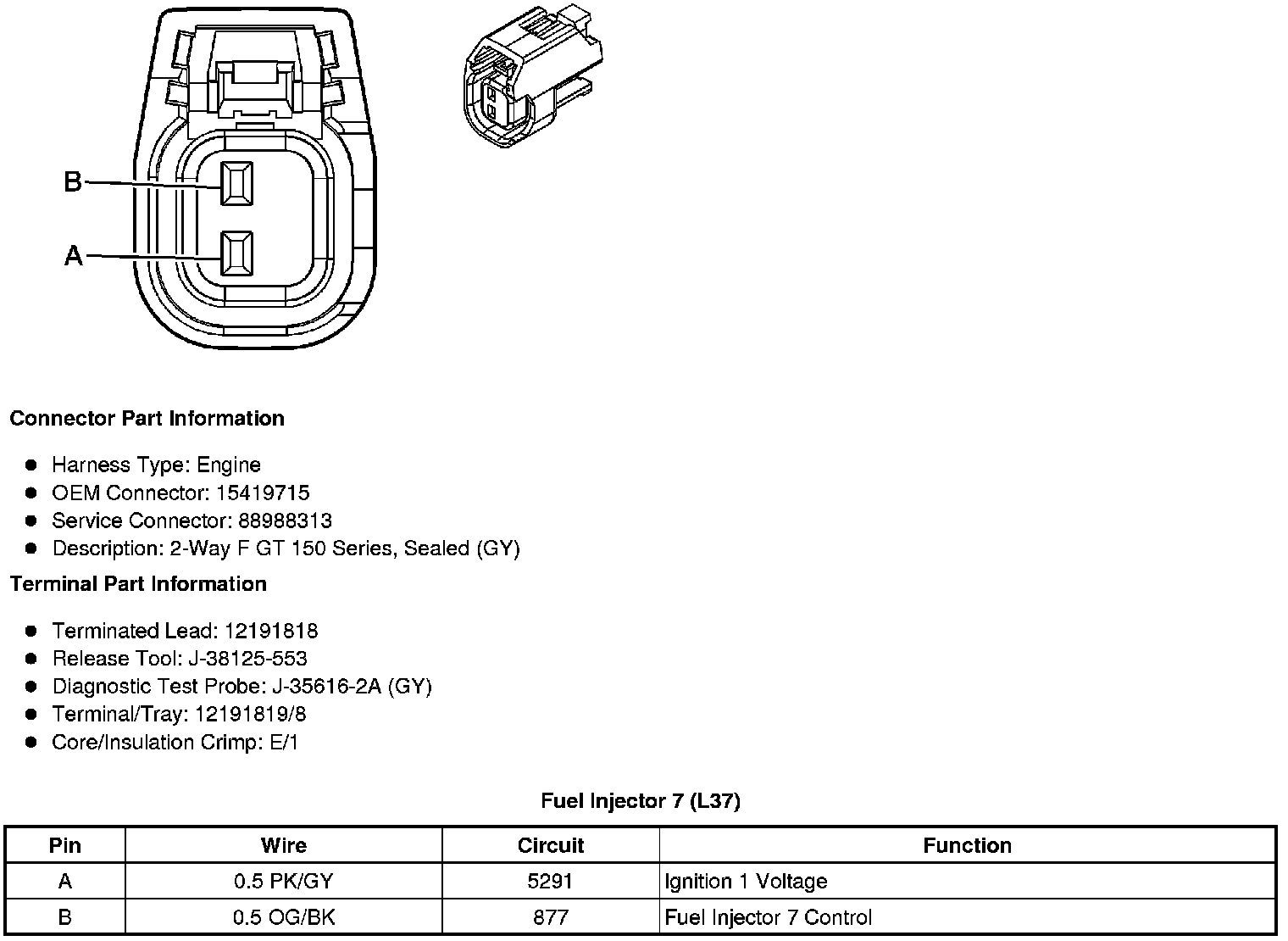

Fuel Injector 7 (L37)

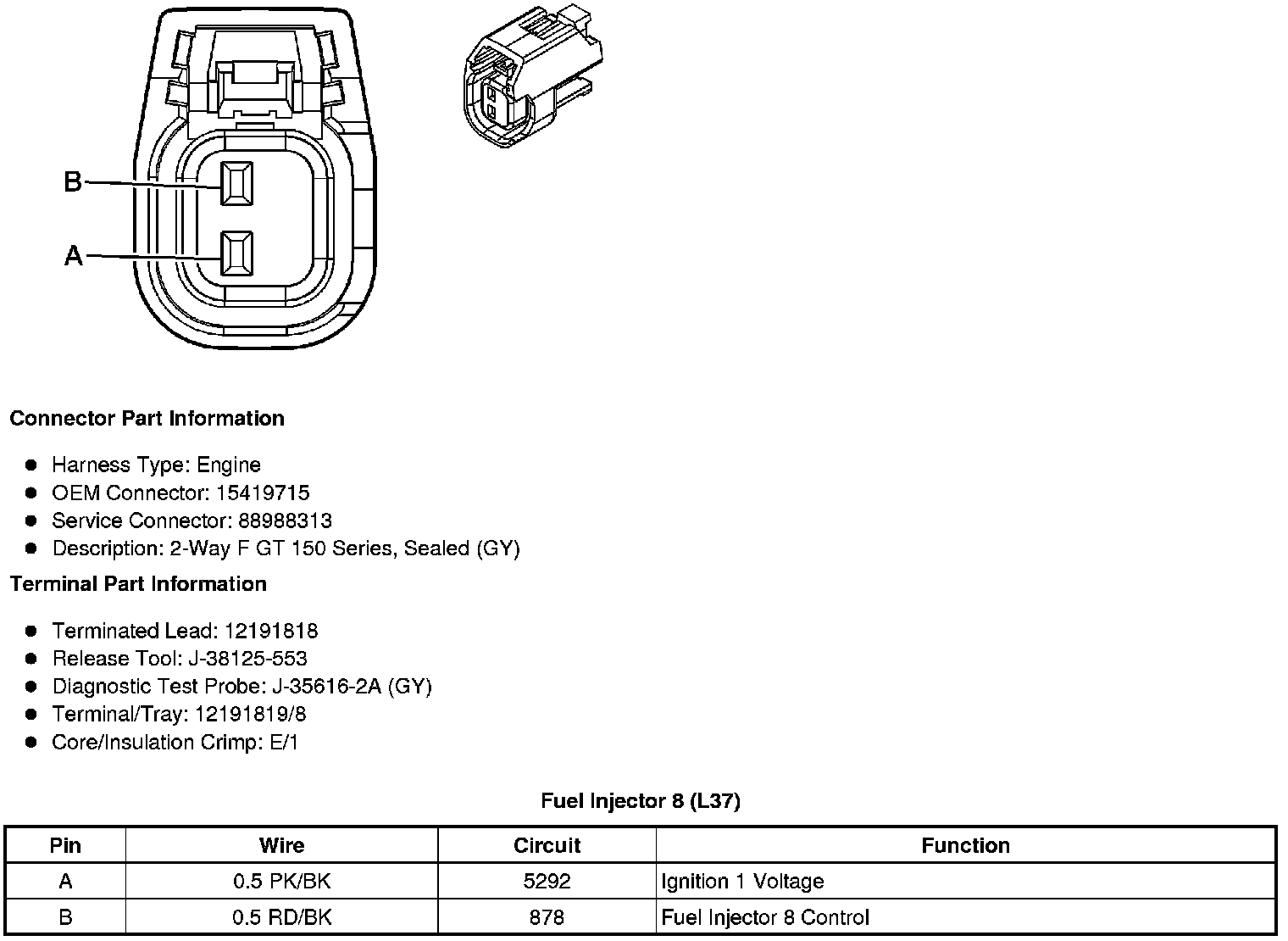

Fuel Injector 8 (L37)
