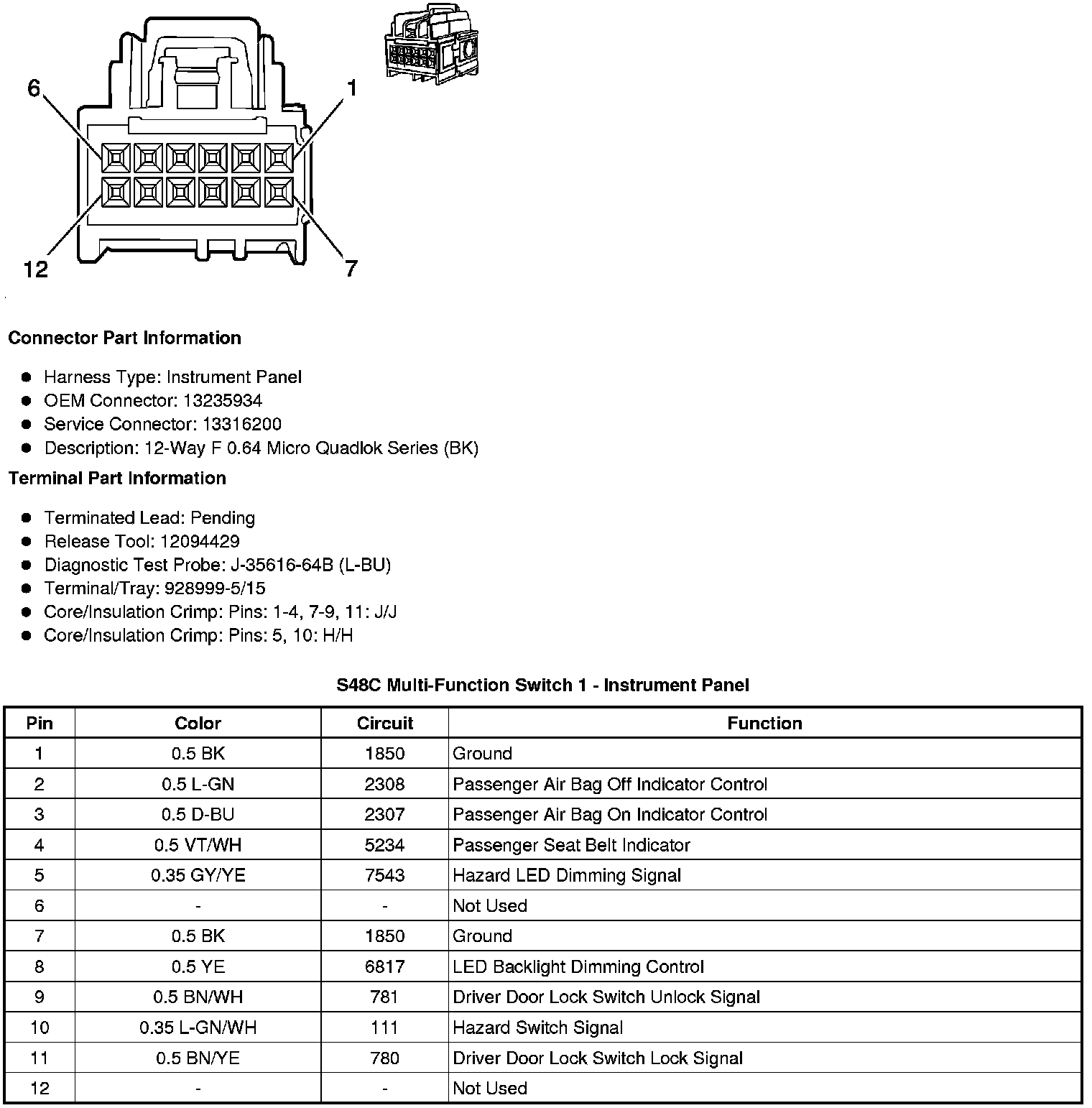

Multi-Function Switch 1 - Instrument Panel S48C
Component Connector End Views
S48C Multi-Function Switch 1 - Instrument Panel
