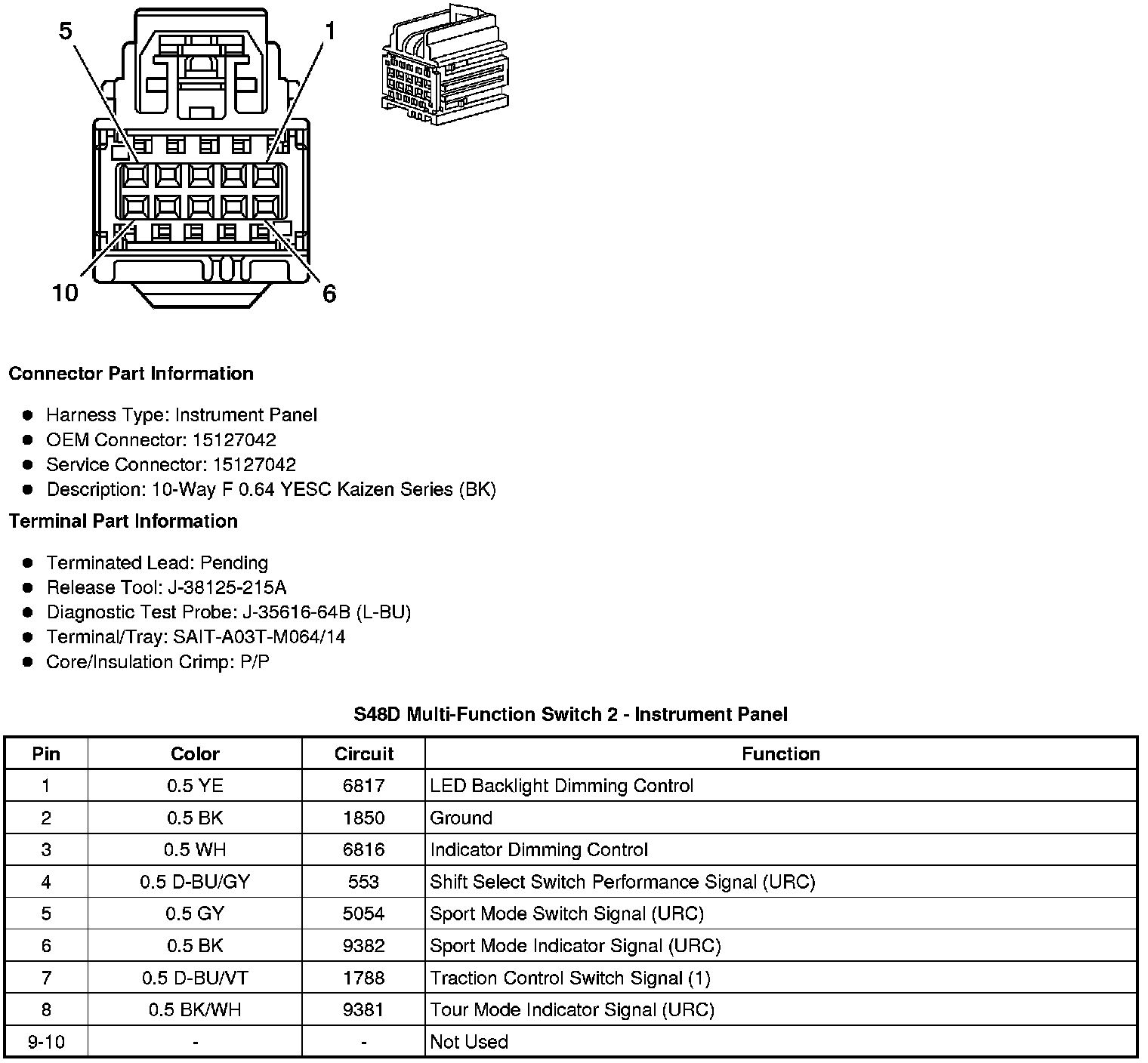

Multi-Function Switch 2 - Instrument Panel S48D




Component Connector End Views

S48D Multi-Function Switch 2 - Instrument Panel
