Fuse Block - Instrument Panel




Electrical Center Identification Views

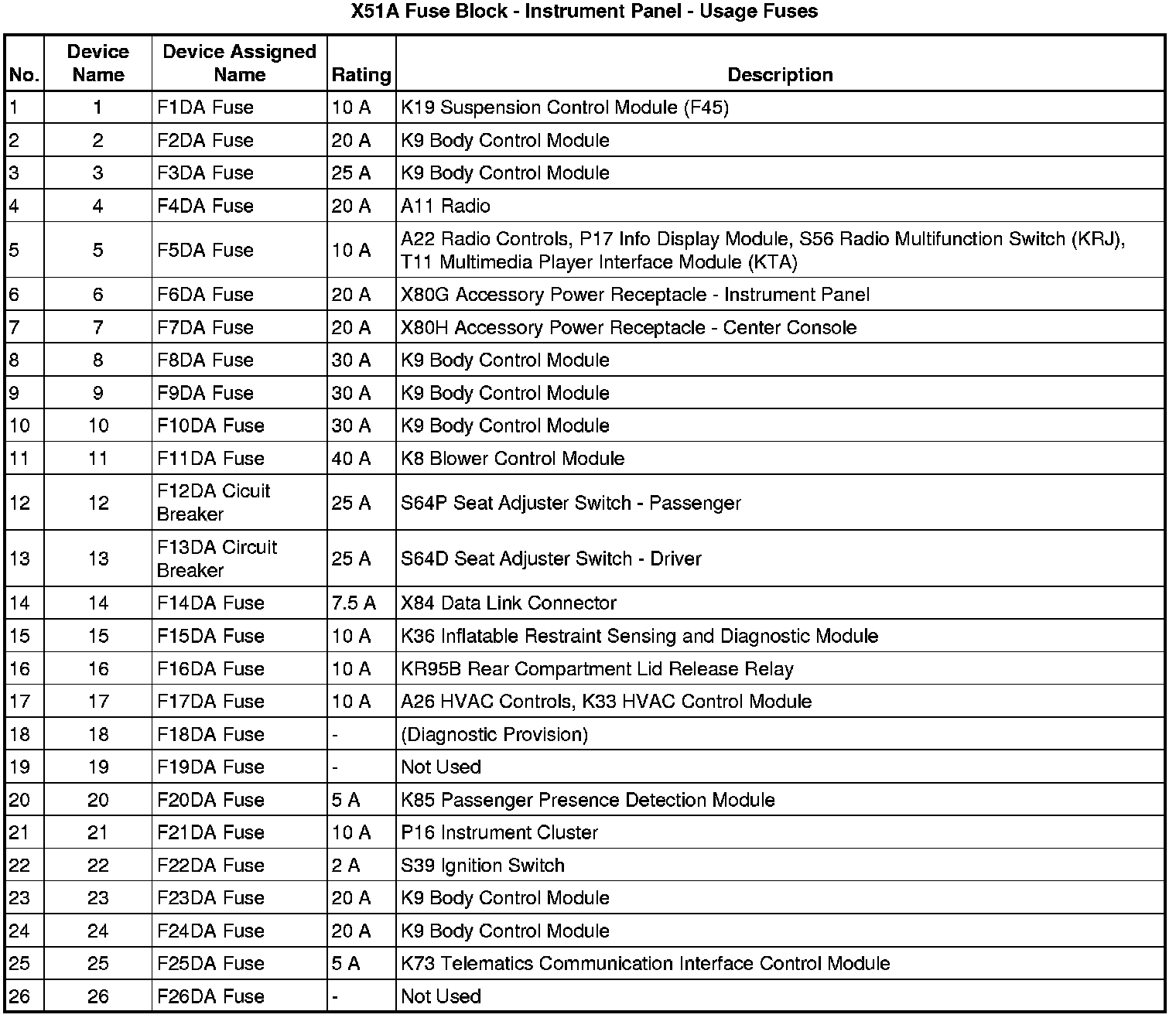

X51A Fuse Block - Instrument Panel - Top View Fuses










X51A Fuse Block - Instrument Panel - Top View Relays

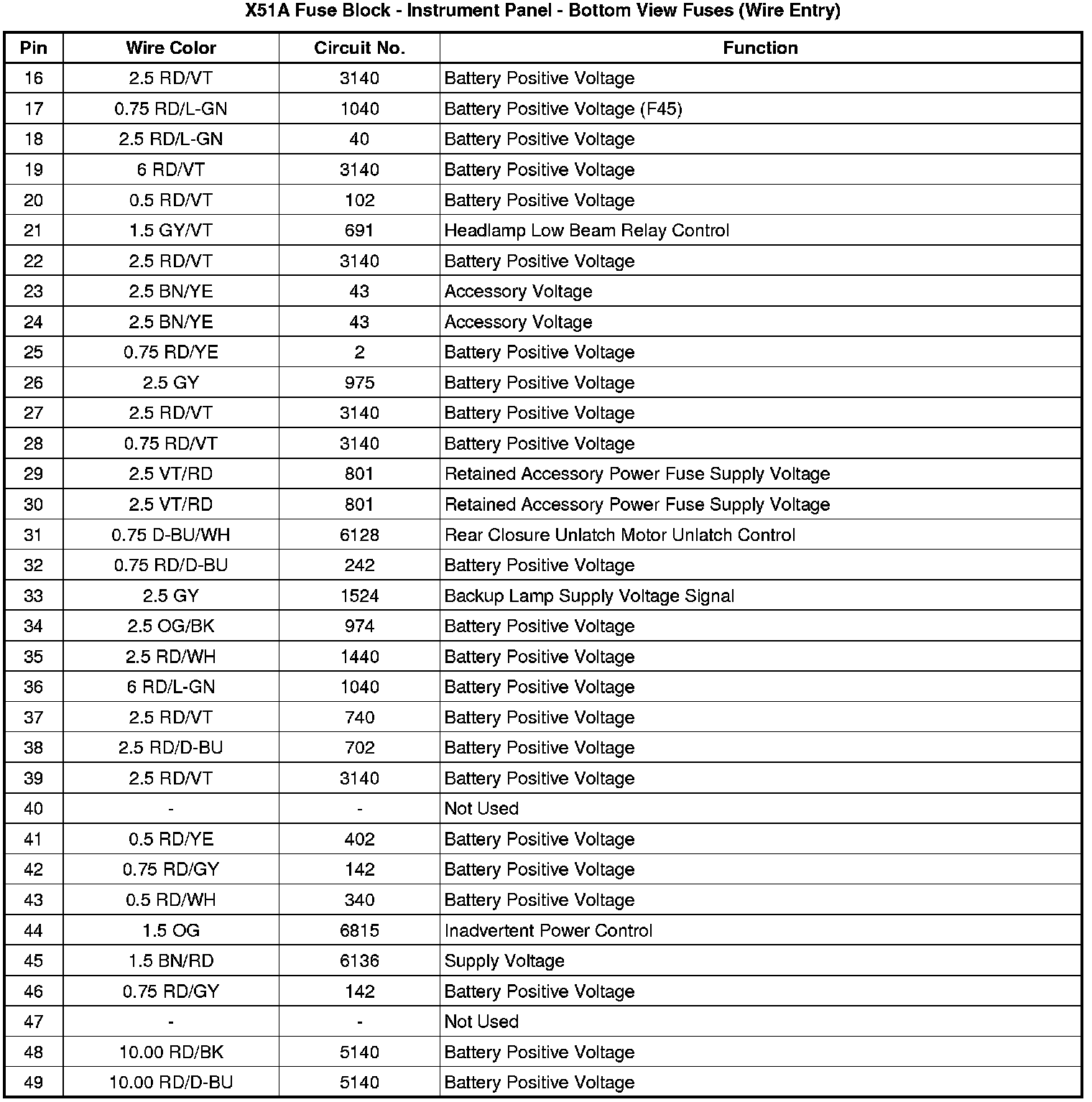

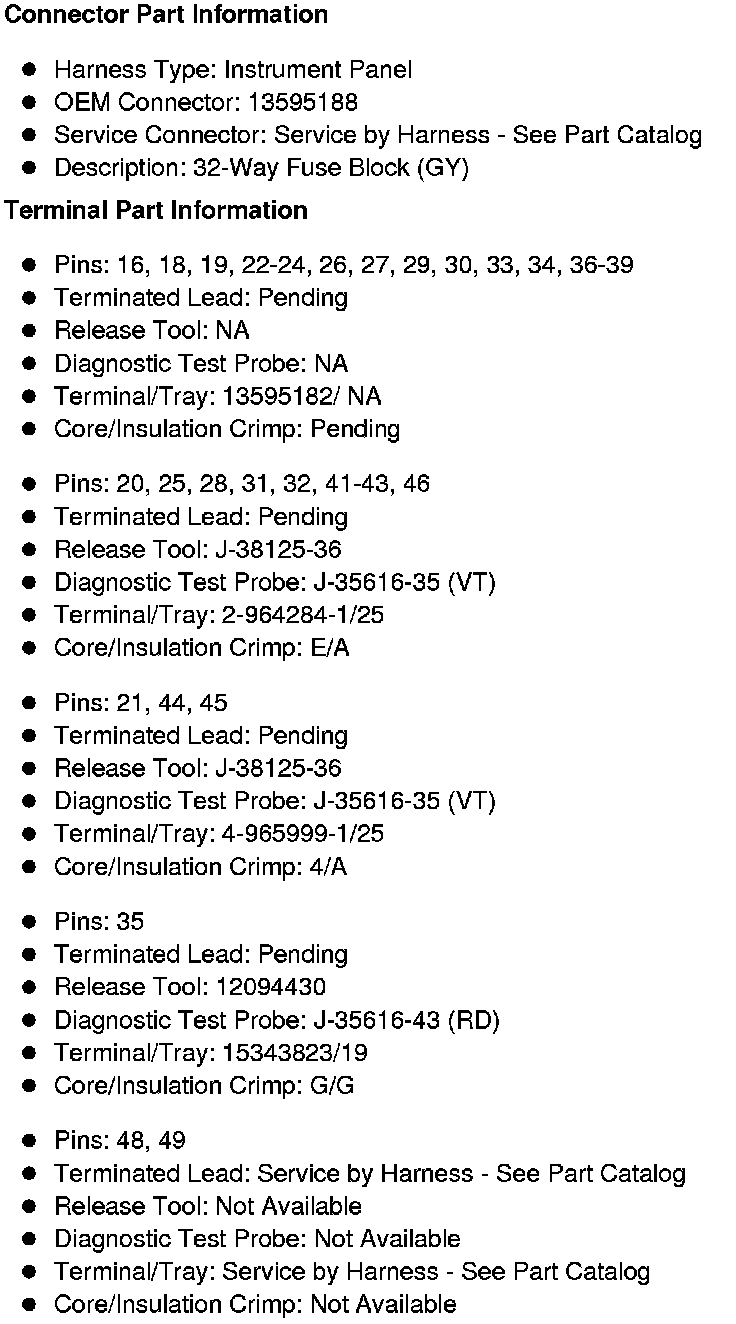

X51A Fuse Block - Instrument Panel - Bottom View Fuses

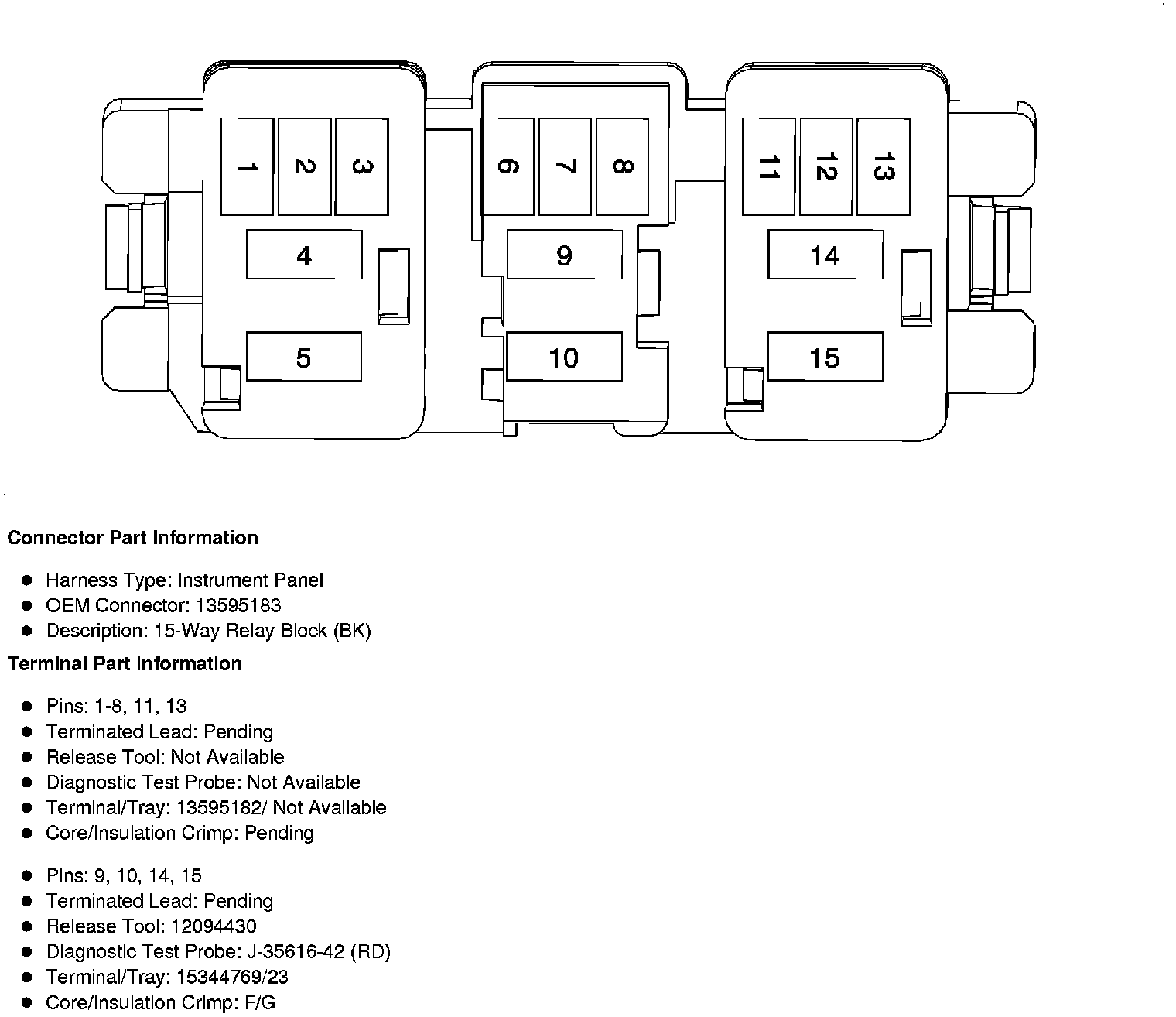

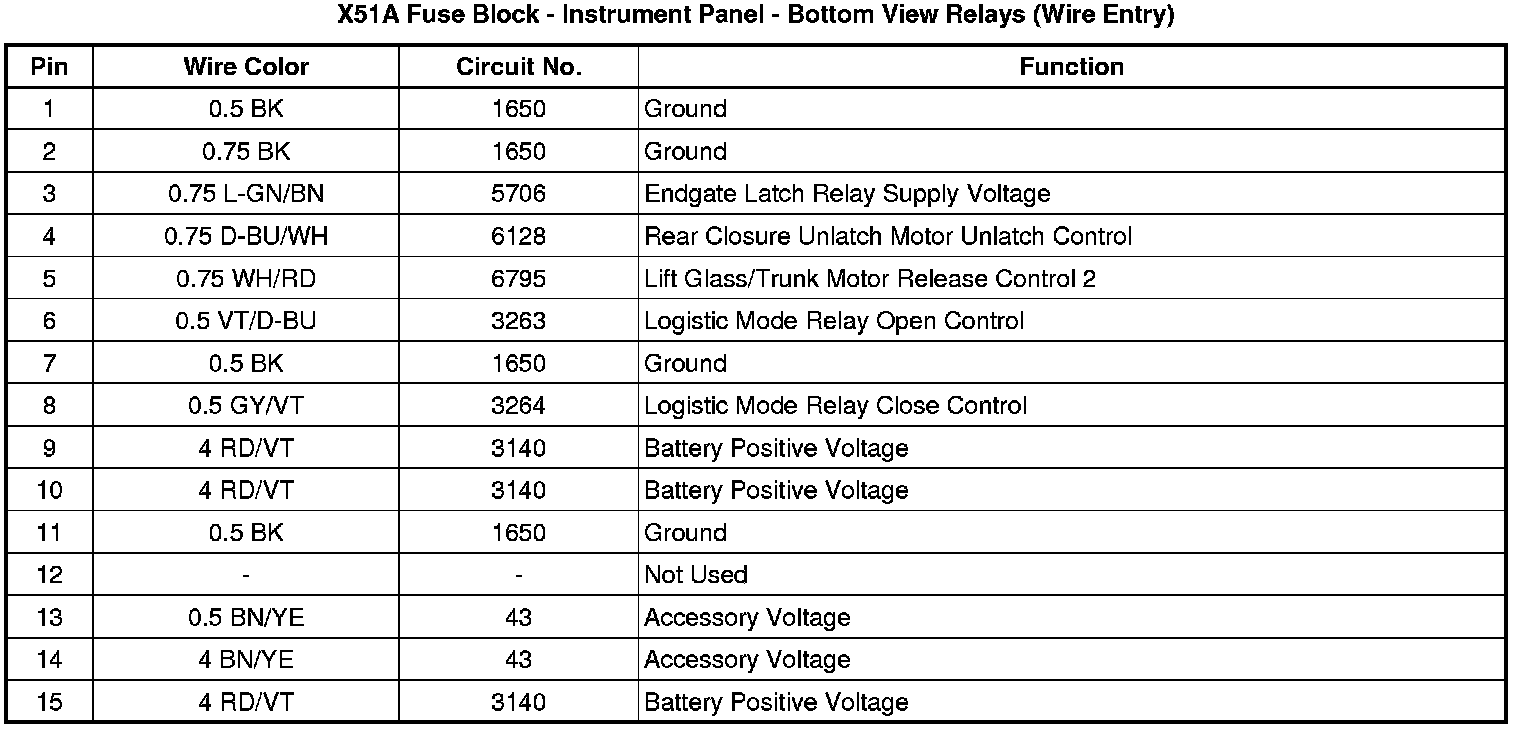

X51A Fuse Block - Instrument Panel - Bottom View Relays
