Front Brake Shield Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

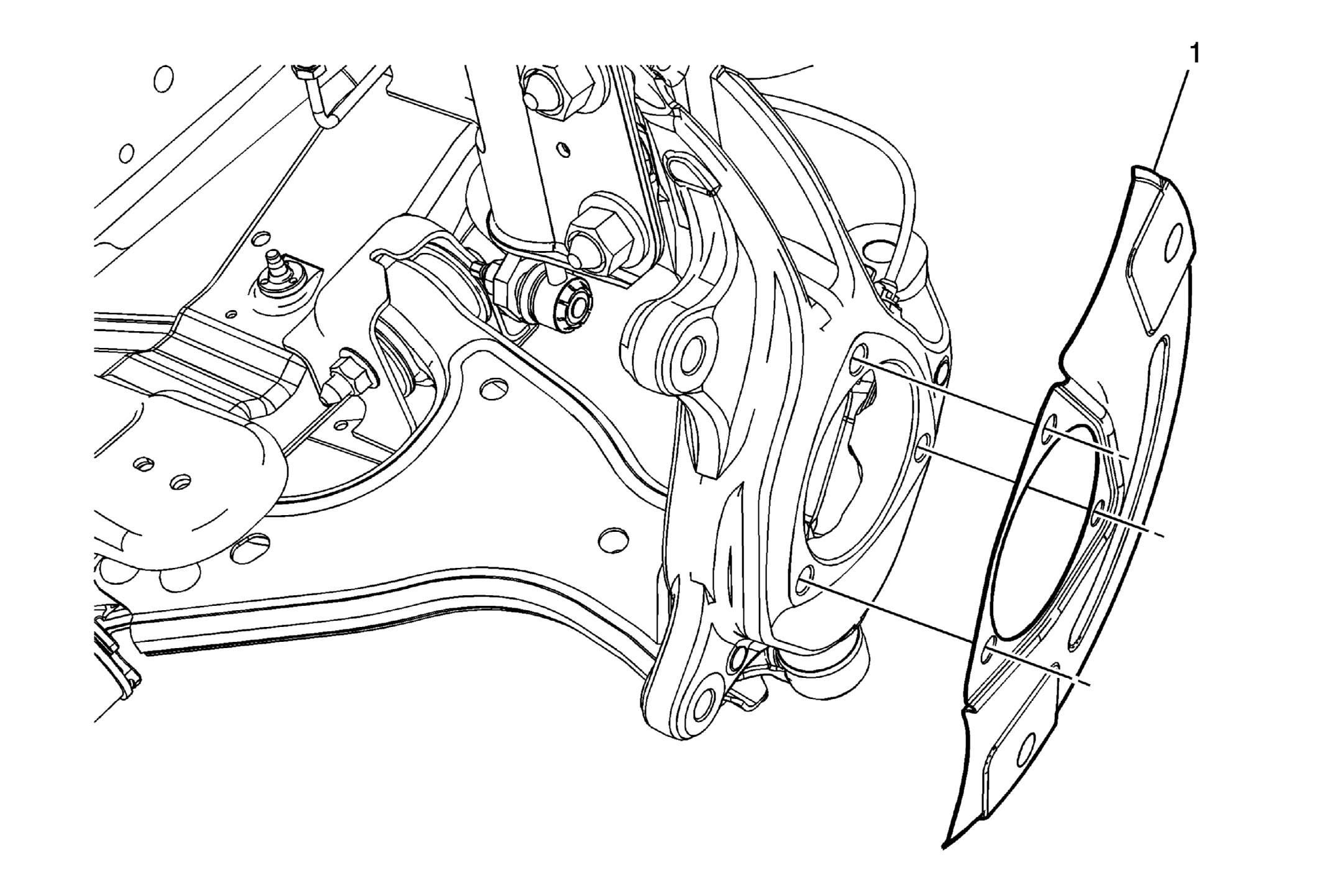

Fig 1: Front Brake Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Dust Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the disc brake rotor. Refer to Front Brake Rotor Replacement . Remove the wheel hub and bearing assembly. Refer to Front Wheel Bearing and Hub Replacement .
1	Disc Brake Shield

Callout

Component Name

WARNING:

Refer to Brake Dust Warning .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the disc brake rotor. Refer to Front Brake Rotor Replacement .
Remove the wheel hub and bearing assembly. Refer to Front Wheel Bearing and Hub Replacement .

Disc Brake Shield
