Parking Brake Control Module: Locations

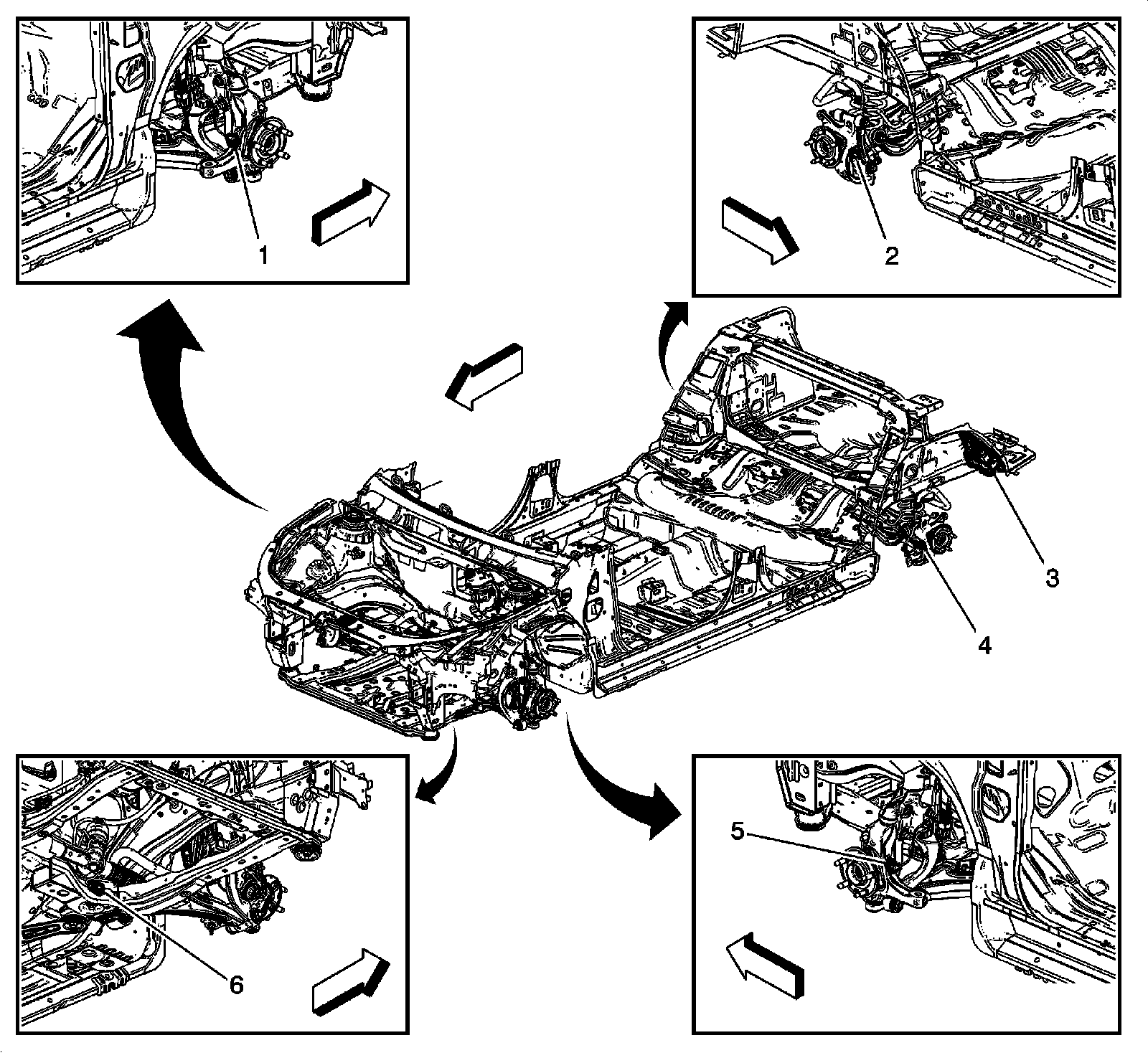

Wheels/Vehicle Underbody Component Views

Wheels/Underbody Components




1 - B5RF Wheel Speed Sensor - Right Front
2 - B5RR Wheel Speed Sensor - Right Rear
3 - K83 Parking Brake Control Module
4 - B5LR Wheel Speed Sensor - Left Rear
5 - B5LF Wheel Speed Sensor - Left Front
6 - M72 Variable Power Steering Solenoid Valve (NV7)
