Sunroof/Overhead Console Components

Passenger Compartment/Roof Component Views

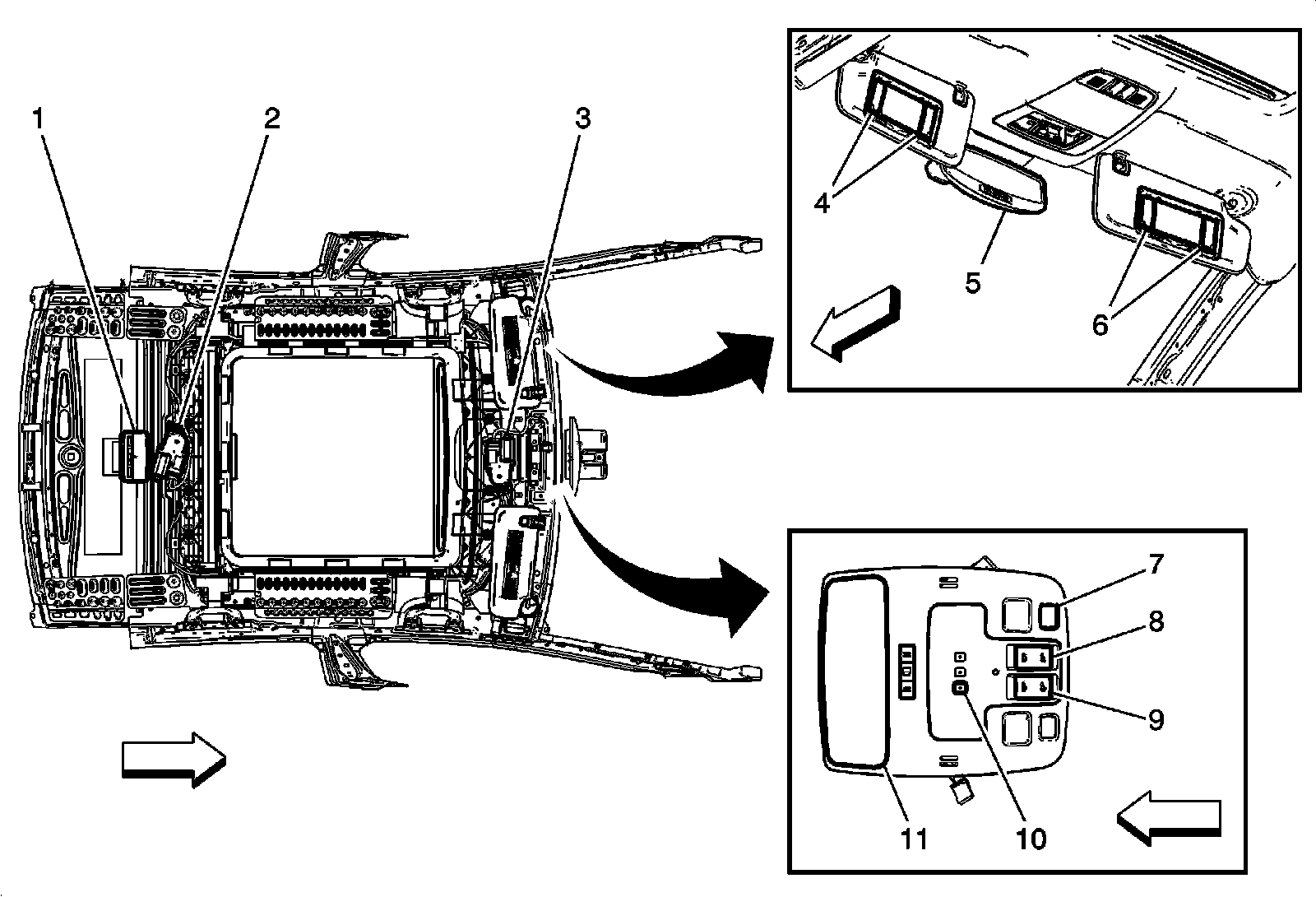

Sunroof/Overhead Console Components




1 - E37B Dome/Reading Lamps - 2nd Row
2 - K62 Sunroof Sunshade Motor Module (C3U)
3 - K61 Sunroof Control Module (C3U)
4 - E31L Sunshade Mirror Lamp - Left
5 - S51 Telematics Button Assembly (UF1)
6 - A10 Inside Rearview Mirror (DD8)
7 - E31R Sunshade Mirror Lamp - Right
8 - B24 Cellular Phone Microphone (UE1)
9 - S90 Sunroof Sunshade Switch (C3U)
10 - S72 Sunroof Switch (C3U)
11 - S25 Garage Door Opener (UG1)
12 - E37F Dome/Reading Lamps - Front
