Front Engine Compartment Components

Front Engine Compartment Components

Component Name Callout
B1 A/C Refrigerant Pressure Sensor 1
G10R Cooling Fan Motor - Right 2
G10L Cooling Fan Motor - Left 3
P13 Horn Assembly 4
B118B Windshield Washer Fluid Level Switch 5
G24 Windshield Washer Pump 6

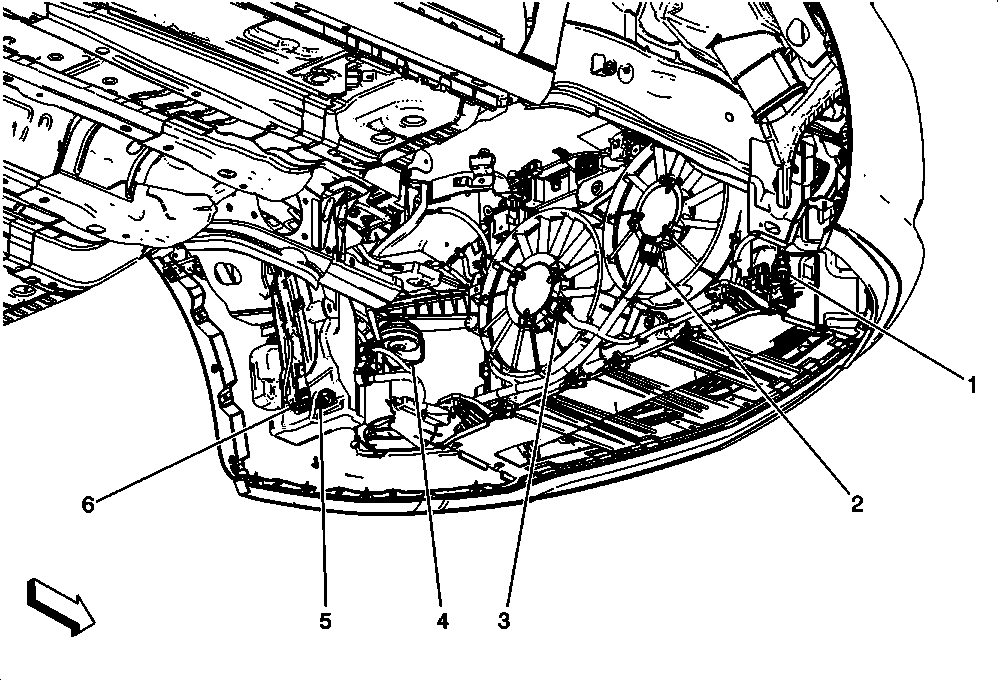

Fig 1: Front Engine Compartment Components
GM2365674Courtesy of GENERAL MOTORS COMPANY
