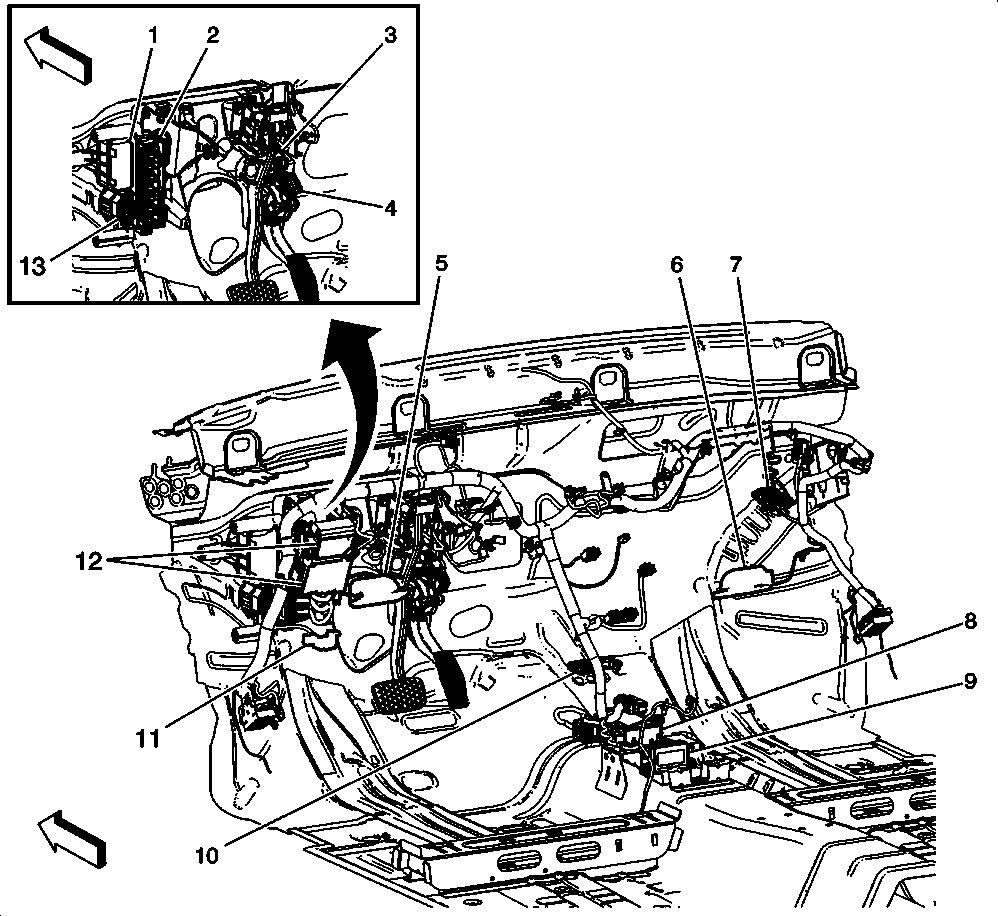

Behind the Instrument Panel Components
Behind the Instrument Panel Components
| Component Name | Callout |
|---|---|
| K26 Headlamp Control Module (T4F) | 1 |
| K9 Body Control Module | 2 |
| B22 Brake Pedal Position Sensor | 3 |
| B107 Accelerator Pedal Position Sensor | 4 |
| E8J Instrument Panel Courtesy Lamp - Left | 5 |
| E8K Instrument Panel Courtesy Lamp - Right | 6 |
| E27 Instrument Panel Compartment Lamp | 7 |
| K36 Inflatable Restraint Sensing and Diagnostic Module | 8 |
| B119 Multi-axis Acceleration Sensor | 9 |
| T10J Keyless Entry Antenna - Center Console Front (BTM) | 10 |
| X84 Data Link Connector | 11 |
| X51A Fuse Block - Instrument Panel | 12 |
| K43 Power Steering Control Module (NV7) | 13 |
