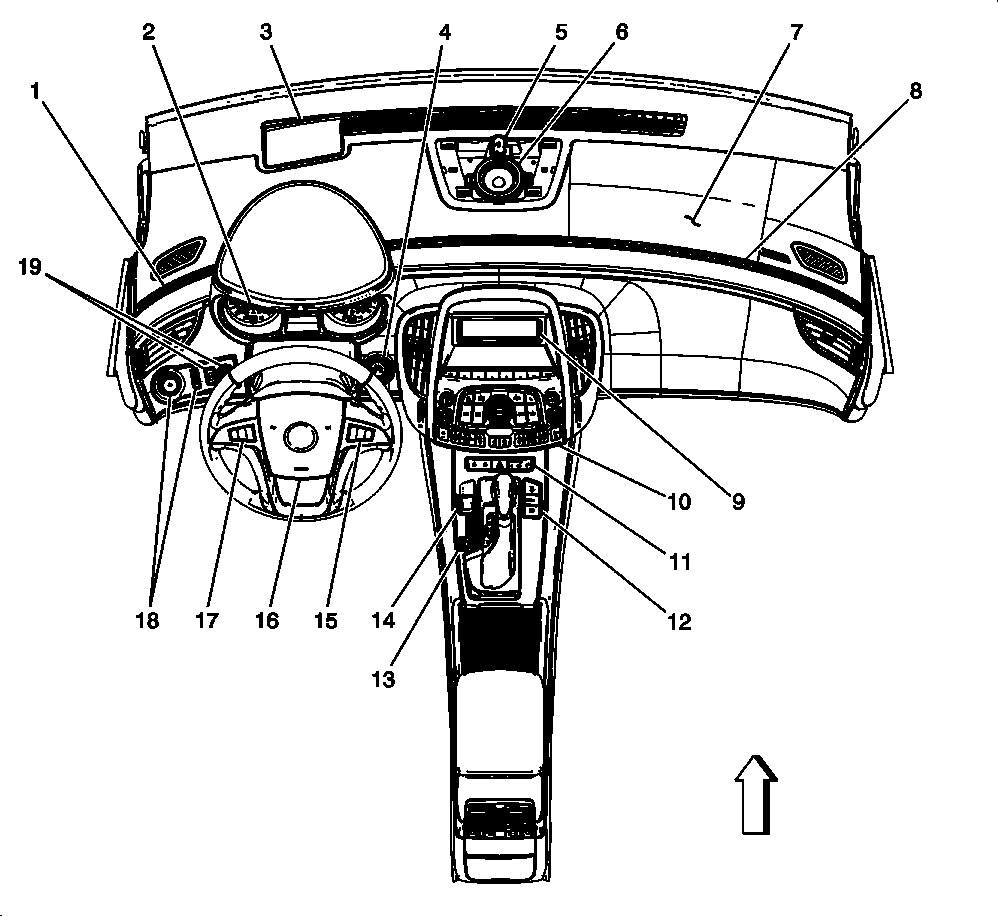

Instrument Panel and Floor Console Components
Instrument Panel and Floor Console Components
| Component Name | Callout |
|---|---|
| E1G Accent Lamp - Left Instrument Panel | 1 |
| P16 Instrument Cluster | 2 |
| P29 Head-Up Display (UV6) | 3 |
| S38 Ignition Mode Switch (BTM) or S39 Ignition Switch (without BTM) | 4 |
| B10B Ambient Light/Sunload Sensor | 5 |
| P19B Speaker - Center Instrument Panel | 6 |
| F101 Passenger Instrument Panel Air Bag | 7 |
| E1H Accent Lamp - Right Instrument Panel | 8 |
| P17 Info Display Module | 9 |
| A20 Radio/HVAC Controls | 10 |
| S48C Multifunction Switch 1 - Instrument Panel | 11 |
| S48D Multifunction Switch 2 - Instrument Panel | 12 |
| P2 Transmission Shift Lever Position Indicator | 13 |
| S91 Park Brake Control Switch | 14 |
| S70R Steering Wheel Controls Switch - Right | 15 |
| F107 Steering Wheel Air Bag | 16 |
| S70L Steering Wheel Controls Switch - Left | 17 |
| S30 Headlamp Switch | 18 |
| S27 Head-Up Display Switch (UV6) | 19 |
