Fuse Block Replacement

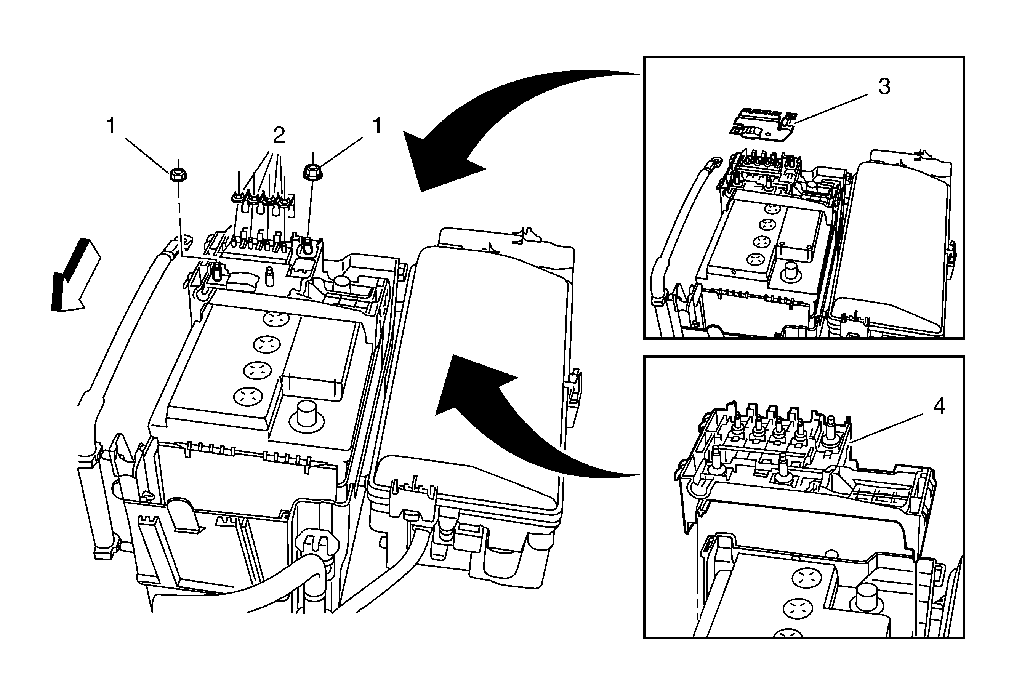

Fig 1: Fuse Block

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Replacement . Disconnect the battery positive cable. Refer to Battery Positive Cable Replacement .
1	Front Compartment Fuse Block Positive Cable and Engine Power Supply Cable Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Fuse Block Terminal Wiring Harness (Qty: 2) Tighten 4.7 N.m (3.5 lb in)
3	Master Fuse Fuse Block Procedure Remove the master fuse from the battery positive splitter.
4	Fuse Block Procedure Unclip and remove the battery positive splitter housing from the battery.
