Front Seat Heater Control Module Replacement (Base)

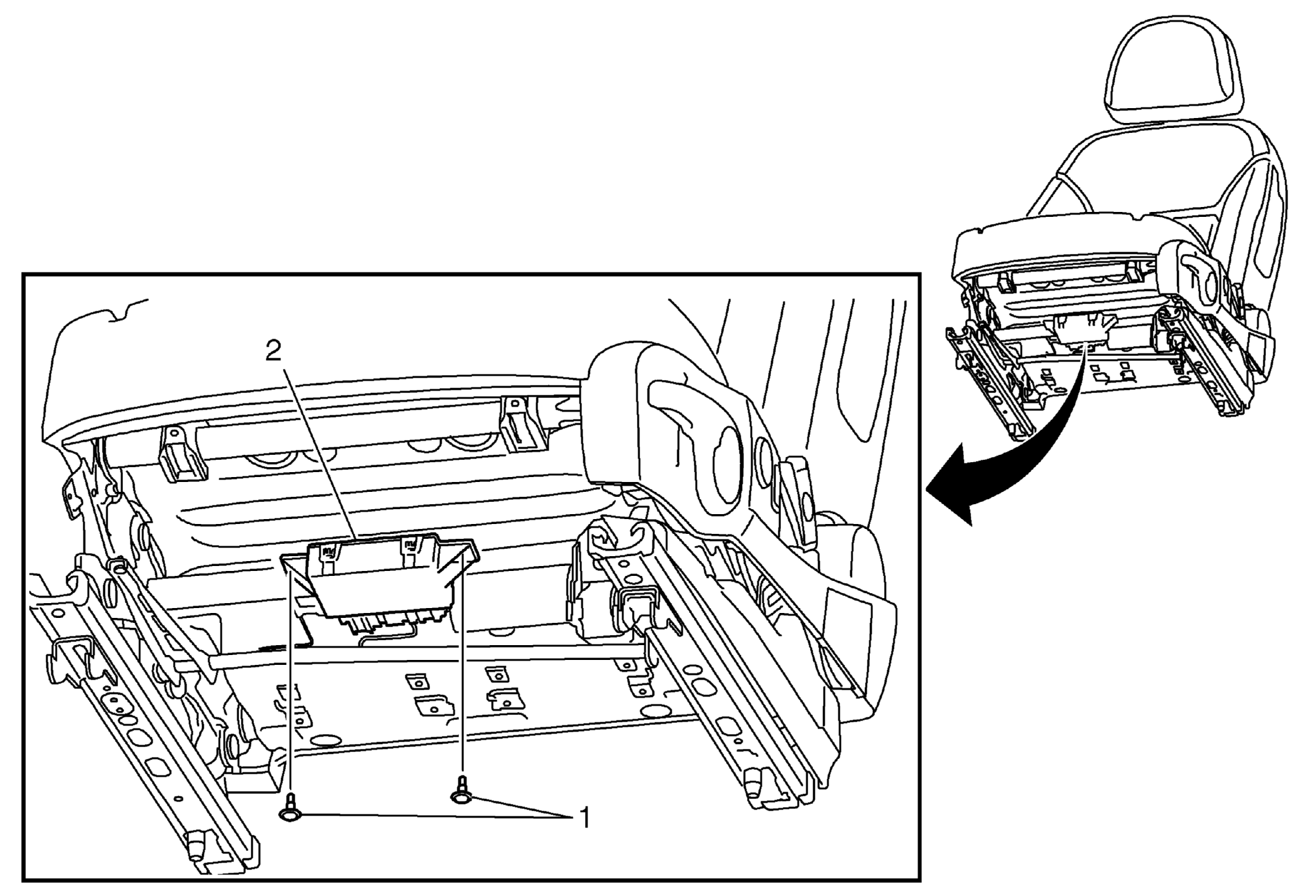

Fig 1: Front Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Heater Control Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Move the front seat full backward. Move the front seat in upper position. Turn Off the ignition. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect wiring harness connectors. Tighten 3.5 N.m (31 lb in)
2	Front Seat Heater Control Module

Callout

Component Name

Front Seat Heater Control Fastener (Qty: 2)

CAUTION:

Procedure

Move the front seat full backward.
Move the front seat in upper position.
Turn Off the ignition.
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Disconnect wiring harness connectors.

Tighten
3.5 N.m (31 lb in)

Front Seat Heater Control Module
