Electronic Parking Brake Control Module Replacement

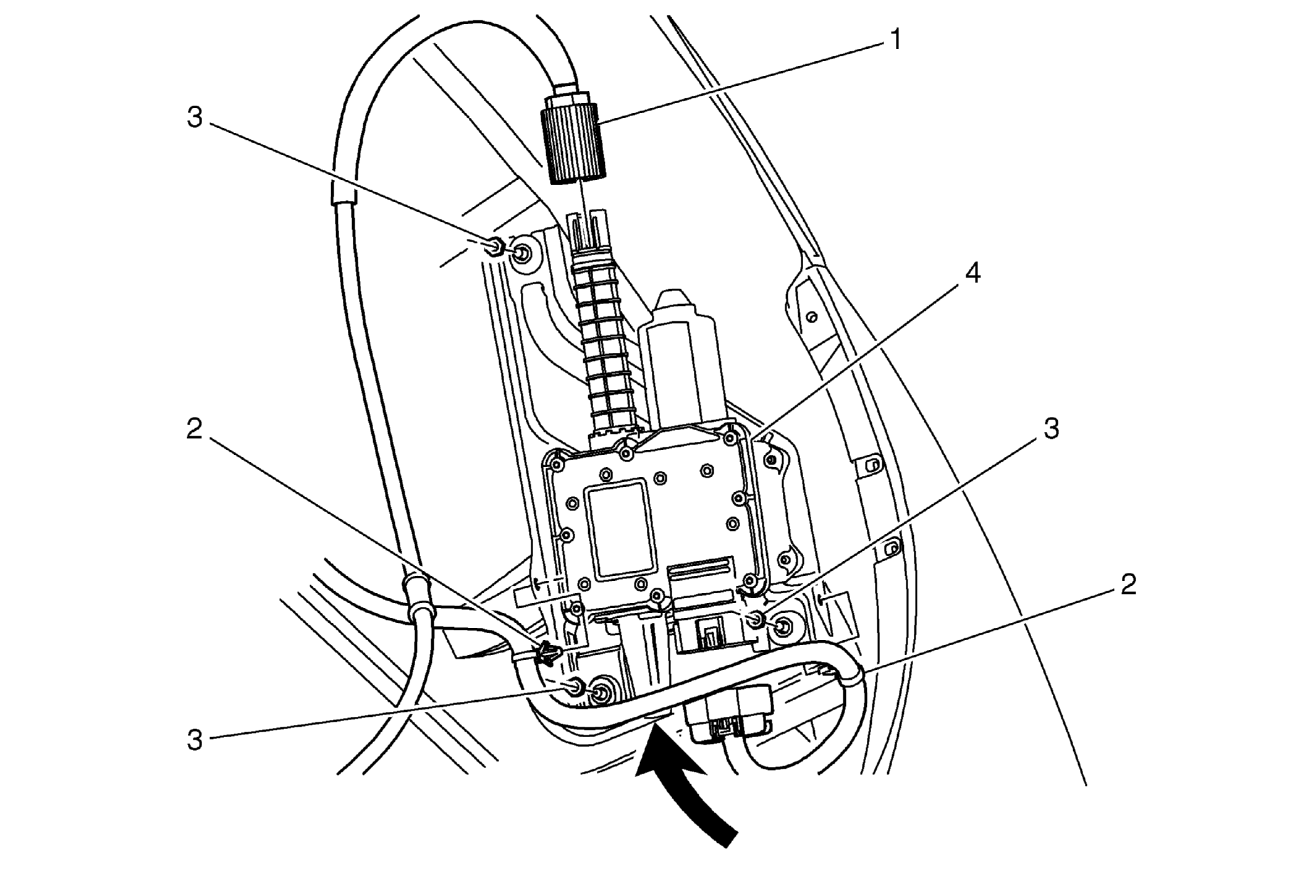

Fig 1: Electronic Parking Brake Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Block the drive wheels. Disable the electronic parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Disabling . Turn the ignition to the OFF position. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the left rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the left rear wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement .
1	Electronic Parking Brake Rear Cable Nut CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Electronic Parking Brake Rear Cable Clip
3	Electronic Parking Brake Control Module Nut (Qty: 3) Tighten 10 N.m (89 lb in)
4	Electronic Parking Brake Control Module Procedure NOTE: To ensure proper operation, the electronic parking brake control module must be programmed after replacement. After the installation is complete, program the electronic parking brake control module. Refer to Electronic Parking Brake Control Module Programming and Setup . After the installation is complete, enable the electronic parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Enabling .
