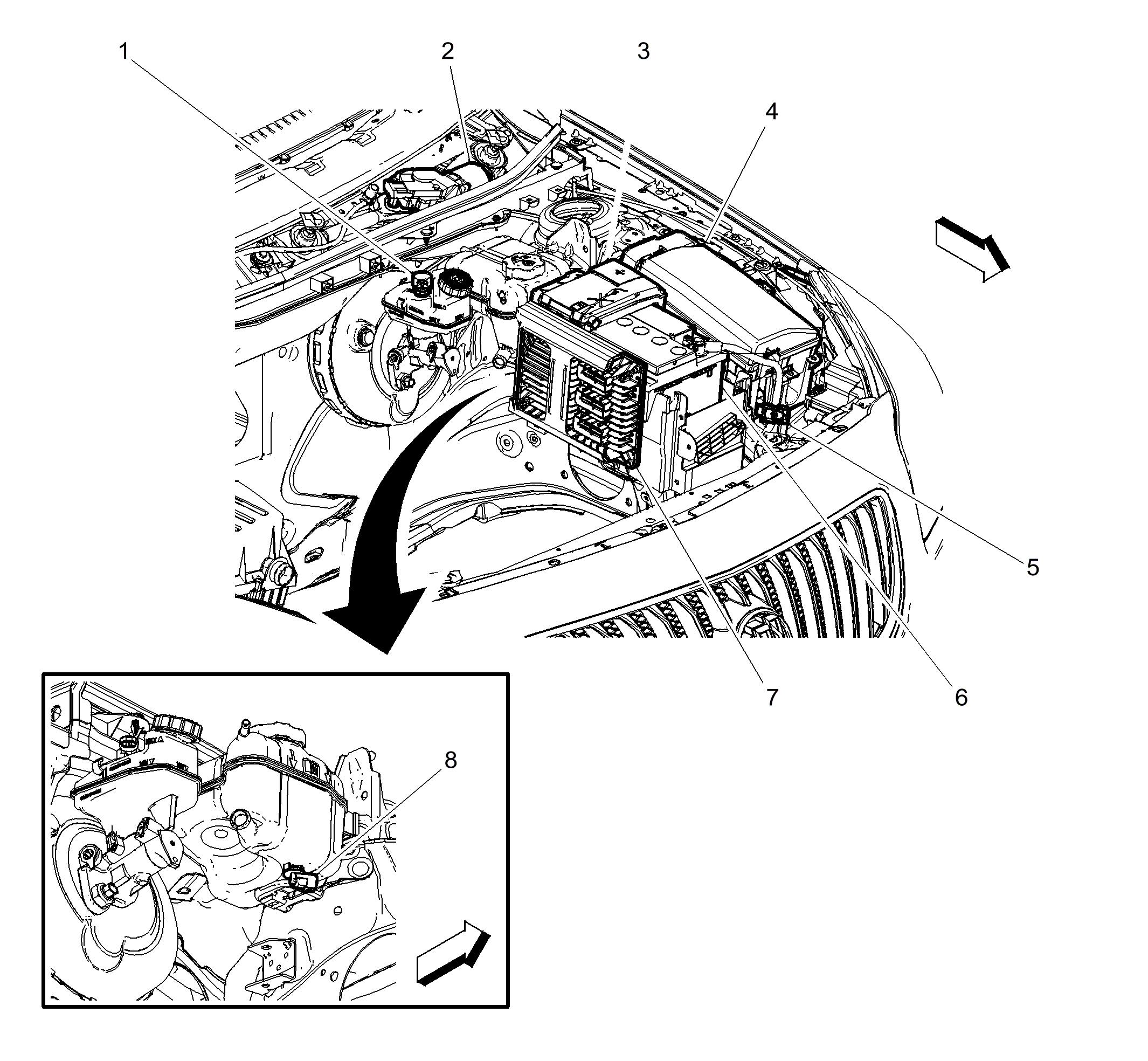

Left Side of Engine Compartment Components

GM2401421Courtesy of
Left Side of Engine Compartment Components

Component Name Callout
M75 Windshield Wiper Motor 1
B20 Brake Fluid Level Switch 2
X50D Fuse Block - Battery 3
X50A Fuse Block - Underhood 4
B18 Battery Current Sensor 5
C1 Battery 6
K20 Engine Control Module 7
B33 Engine Coolant Level Switch 8
