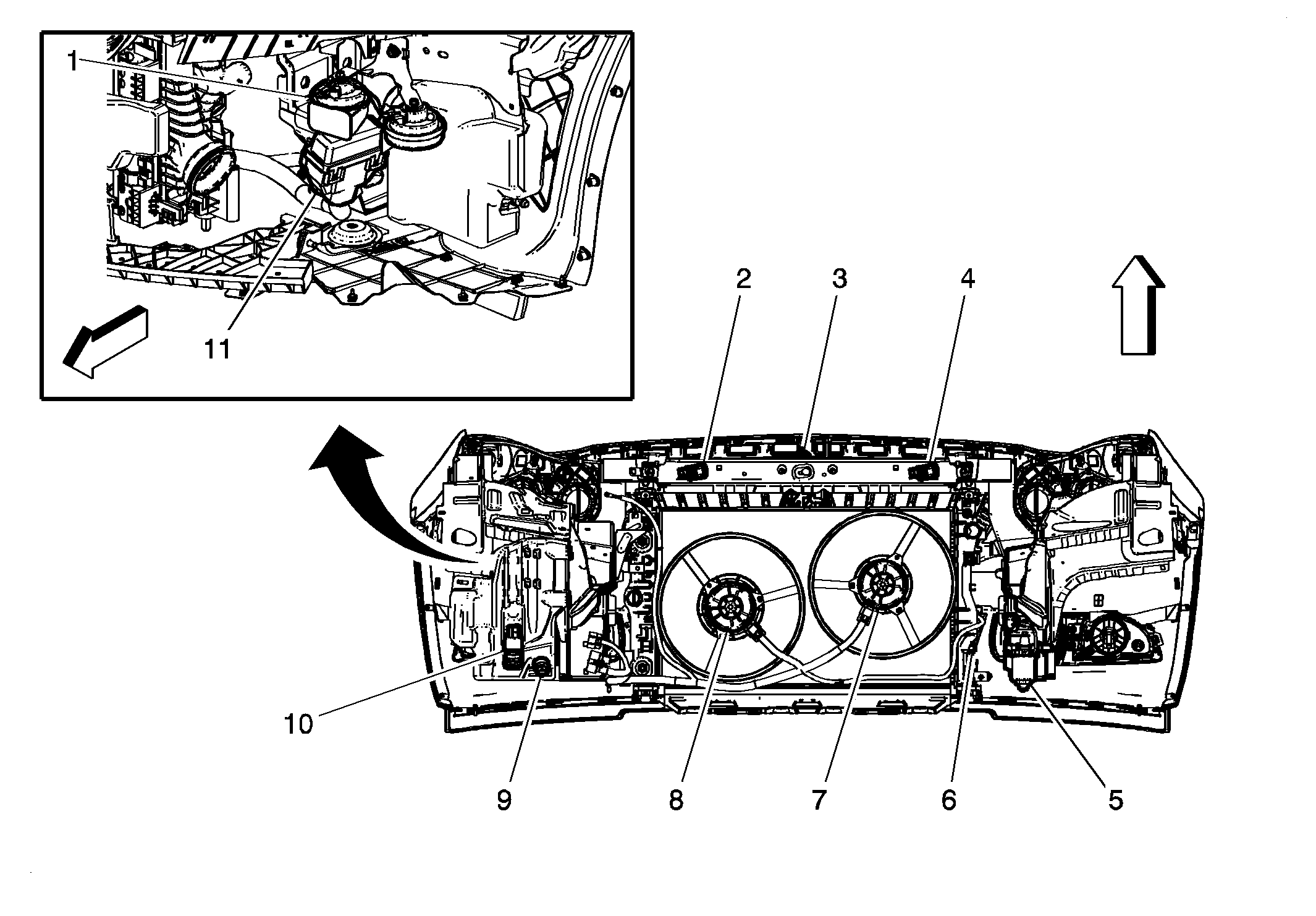

Radiator Support Components
Radiator Support Components
| Component Name | Callout |
|---|---|
| P13 Horn Assembly | 1 |
| B59L Front Impact Sensor - Left | 2 |
| B55 Hood Ajar Switch | 3 |
| B59R Front Impact Sensor - Right | 4 |
| M9 Brake Booster Pump Motor | 5 |
| B1 A/C Refrigerant Pressure Sensor | 6 |
| G10R Cooling Fan Motor - Right (LAF) | 7 |
| G10L Cooling Fan Motor - Left (LAF) | 8 |
| B118B Windshield Washer Fluid Level Switch | 9 |
| G24 Windshield Washer Pump | 10 |
| X70A Relay Block - Underhood | 11 |
