Theft Deterrent Module Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

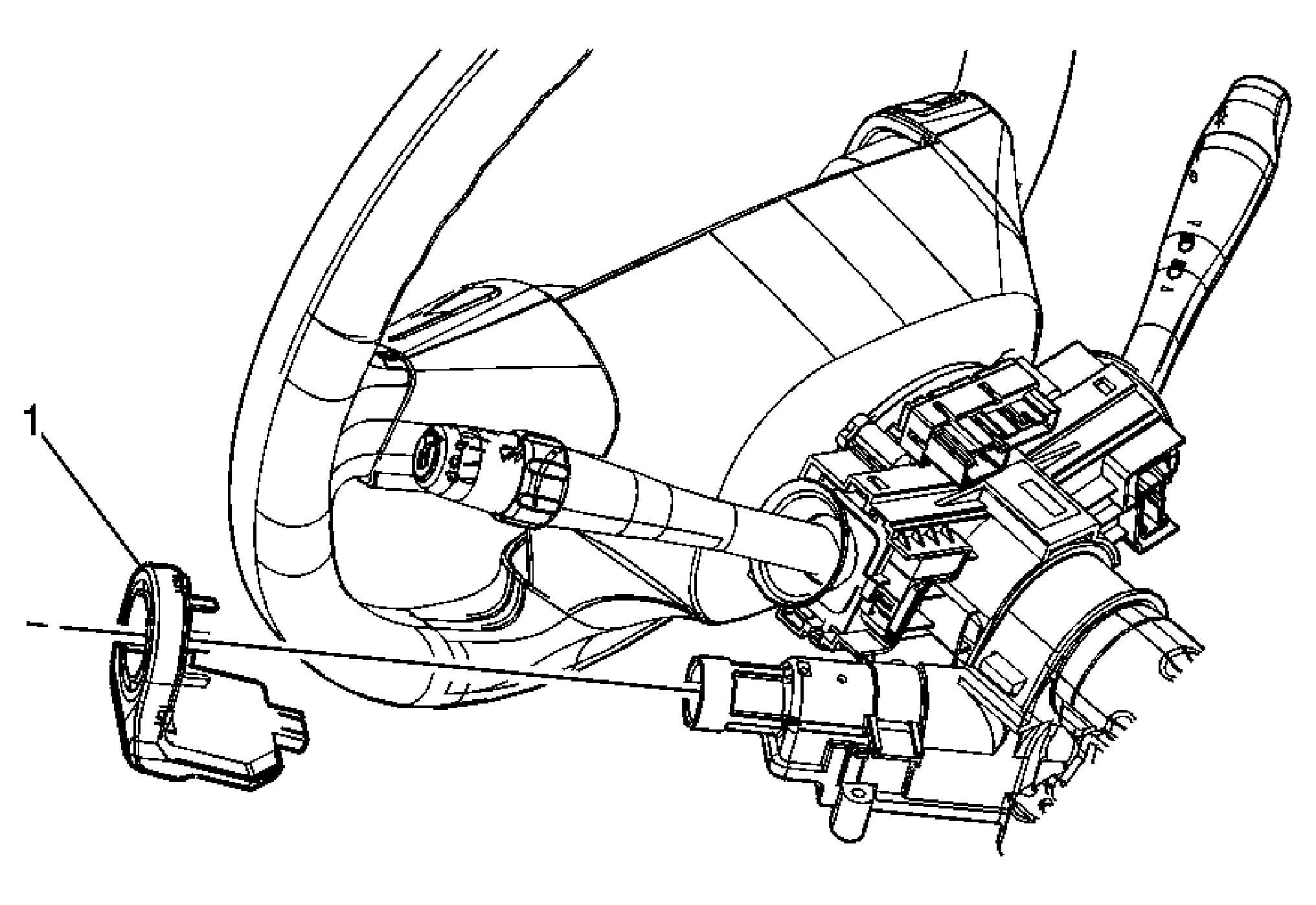

Fig 1: Replacing Theft Deterrent Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement . Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement Program the theft deterrent control module after replacement. Refer to Control Module References .
1	Theft Deterrent Control Module

Callout

Component Name

Preliminary Procedure

Disable the SIR. Refer to SIR Disabling and Enabling .
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement
Program the theft deterrent control module after replacement. Refer to Control Module References .

Theft Deterrent Control Module
