Ground Views

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

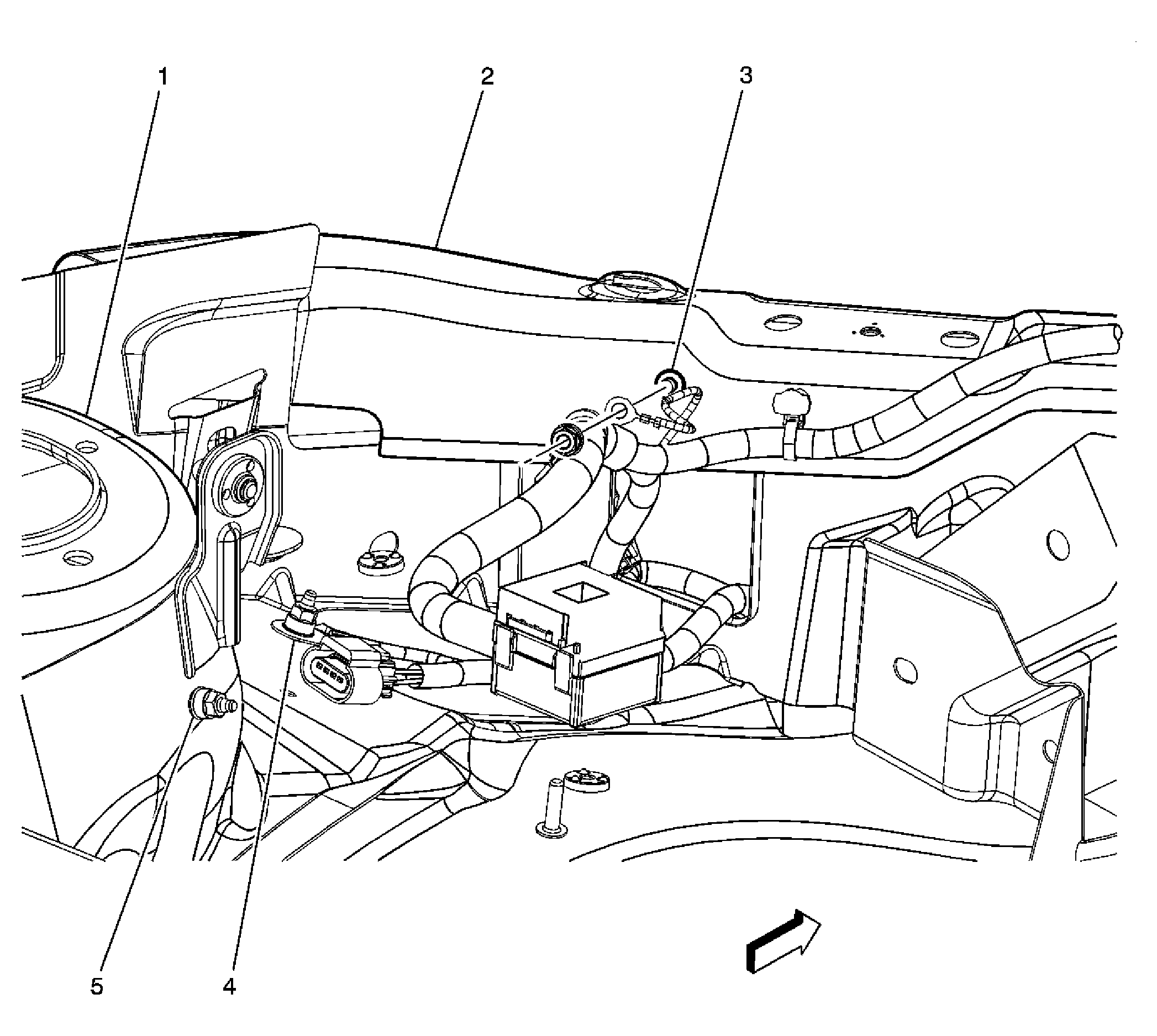

Fig 1: G101, G102, and G109

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Front Strut Tower
2	Upper Tie Bar
3	G102
4	G101
5	G109

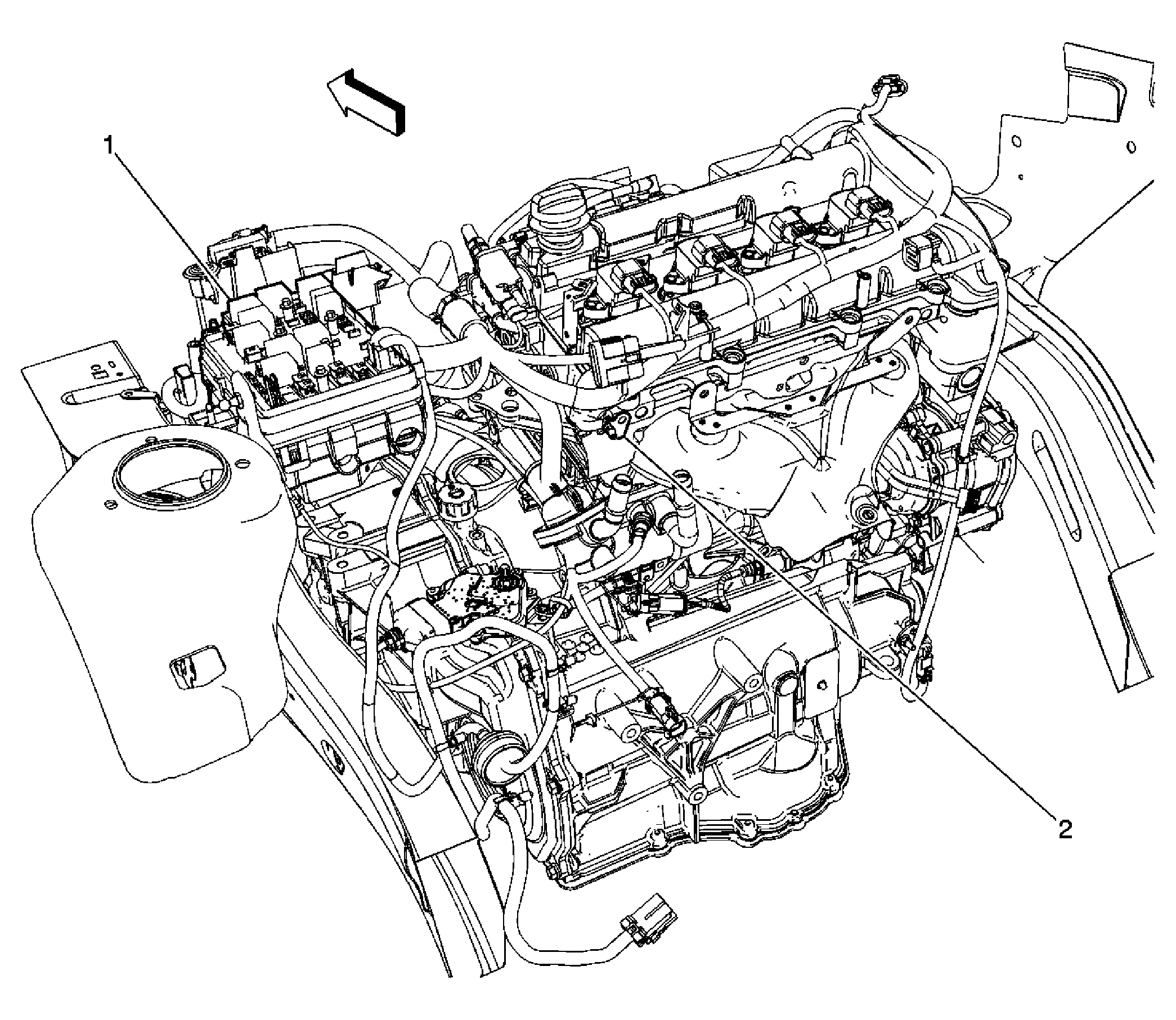

Fig 2: G105

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Case
2	X100
3	G105
4	Engine Harness

Fig 3: G107

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	G107

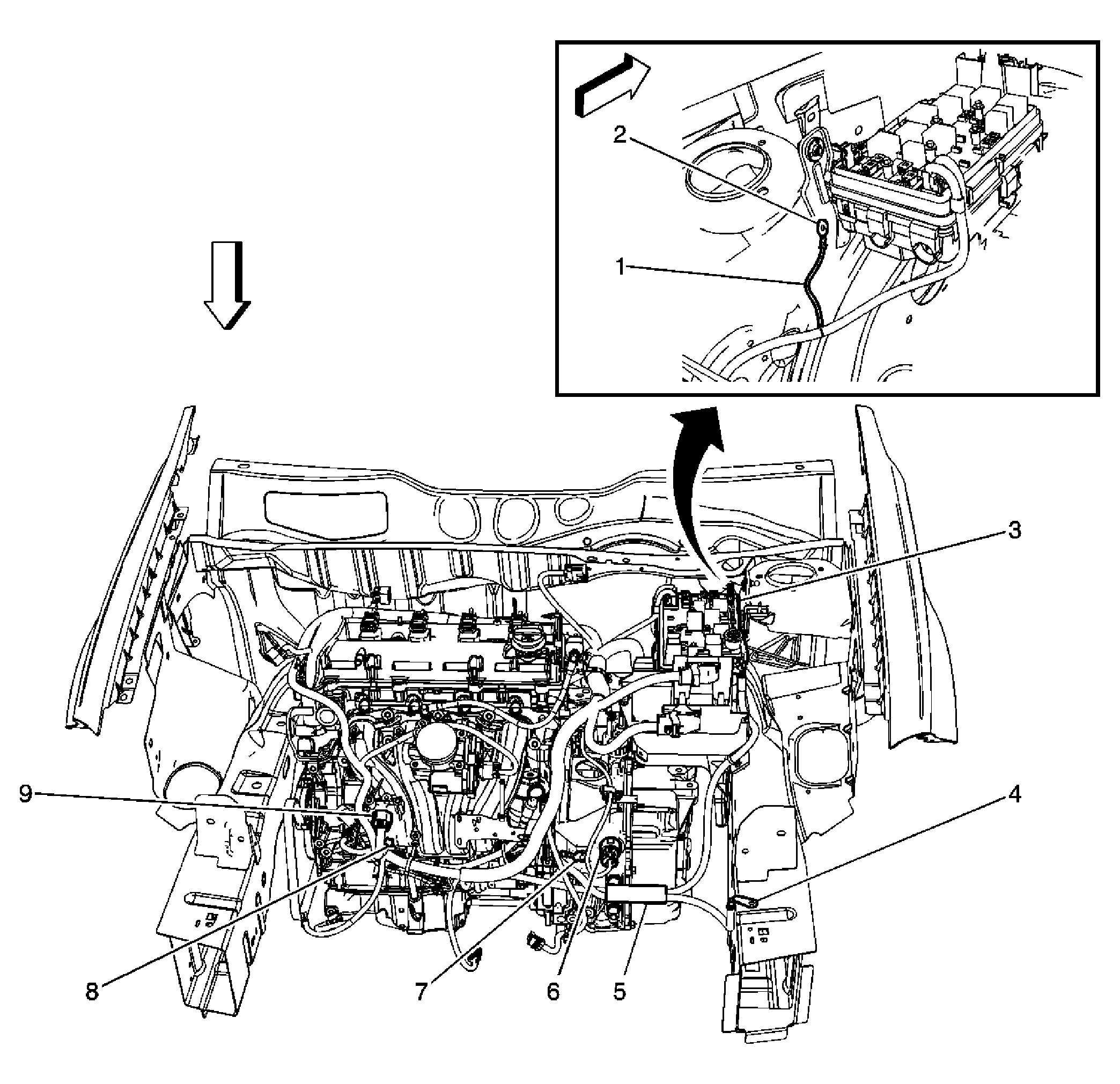

Fig 4: G103, G105, G109, and G111 (L61 and LAP)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electric Power Steering (EPS) Harness
2	G109
3	Fuse Block - Underhood
4	G103
5	Battery Cable Harness
6	X100 (MN5)
7	G105
8	G111
9	X160

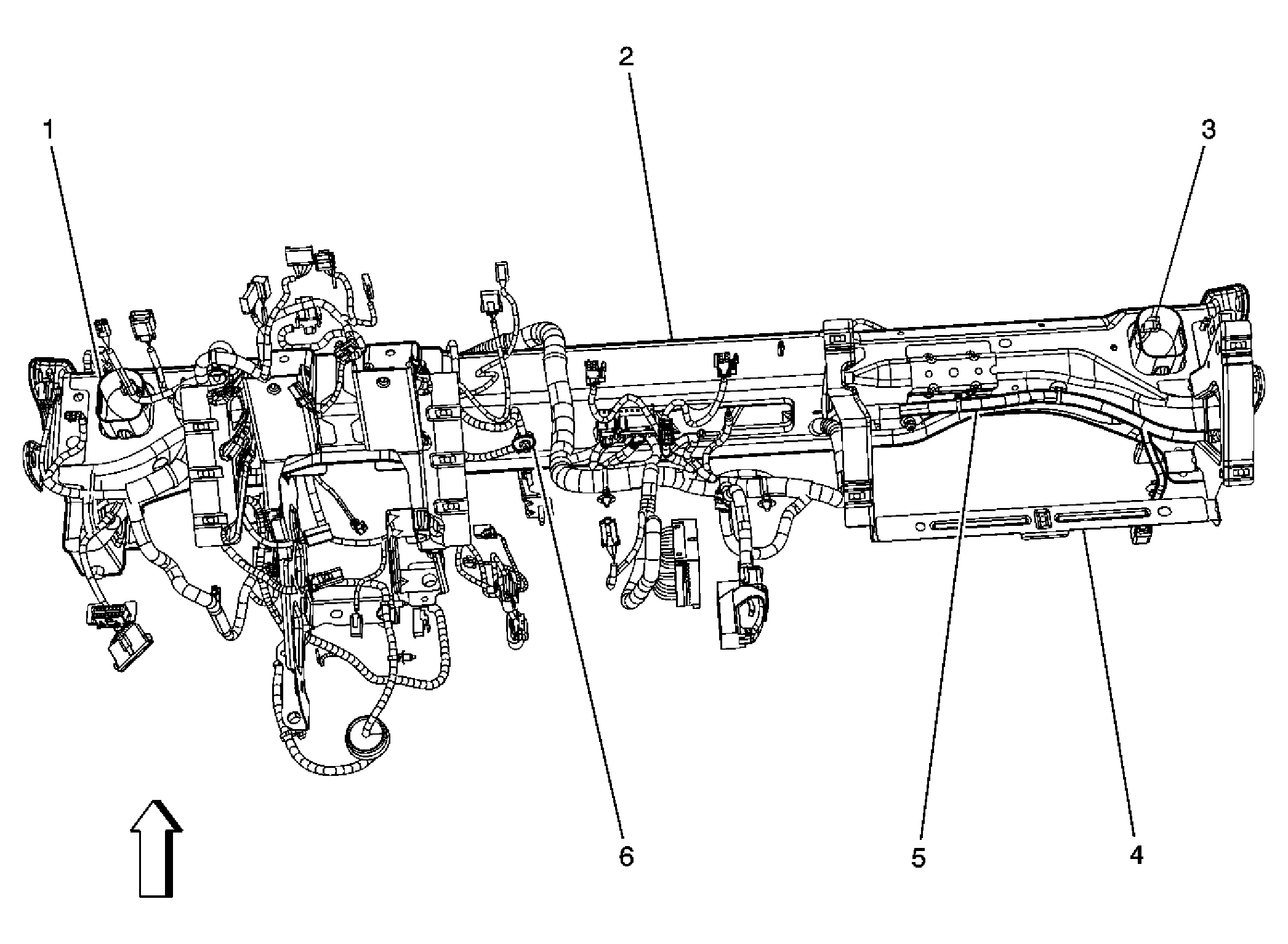

Fig 5: G201 and G203

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Outlet - Driver
2	I/P Tie Bracket
3	Air Outlet - Passenger
4	I/P Carrier Trim
5	G203
6	G201

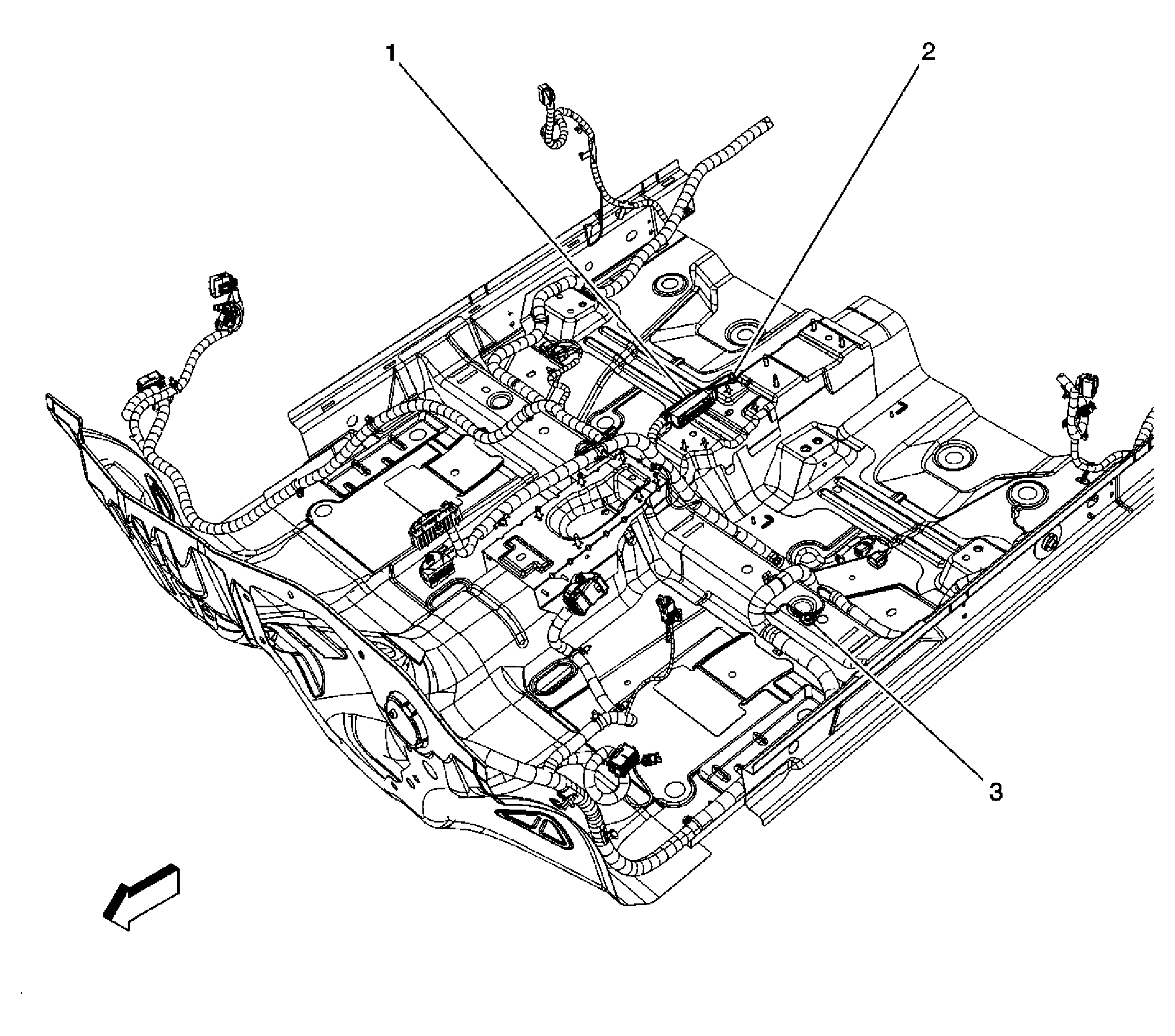

Fig 6: G301 and G306

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
2	G306
3	G301

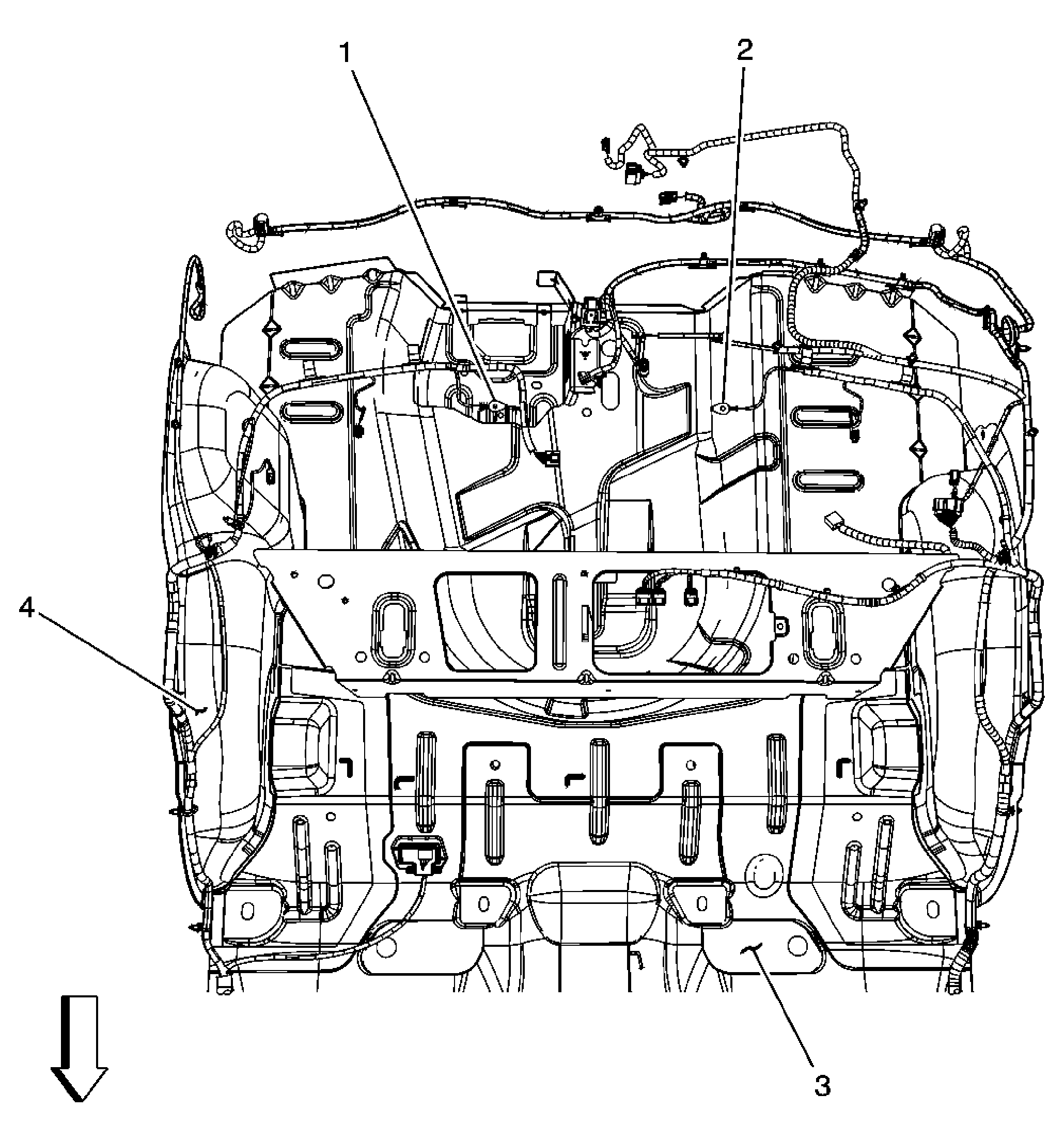

Fig 7: G401 and G402

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G402 (Coupe)
2	G401
3	Floor Panel
4	Wheel Well

Fig 8: G403

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Fuse Holder 50A
3	Battery Current Sensor
4	G403
5	X400
6	Spare Tire Well
