Radiator Support Bracket Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

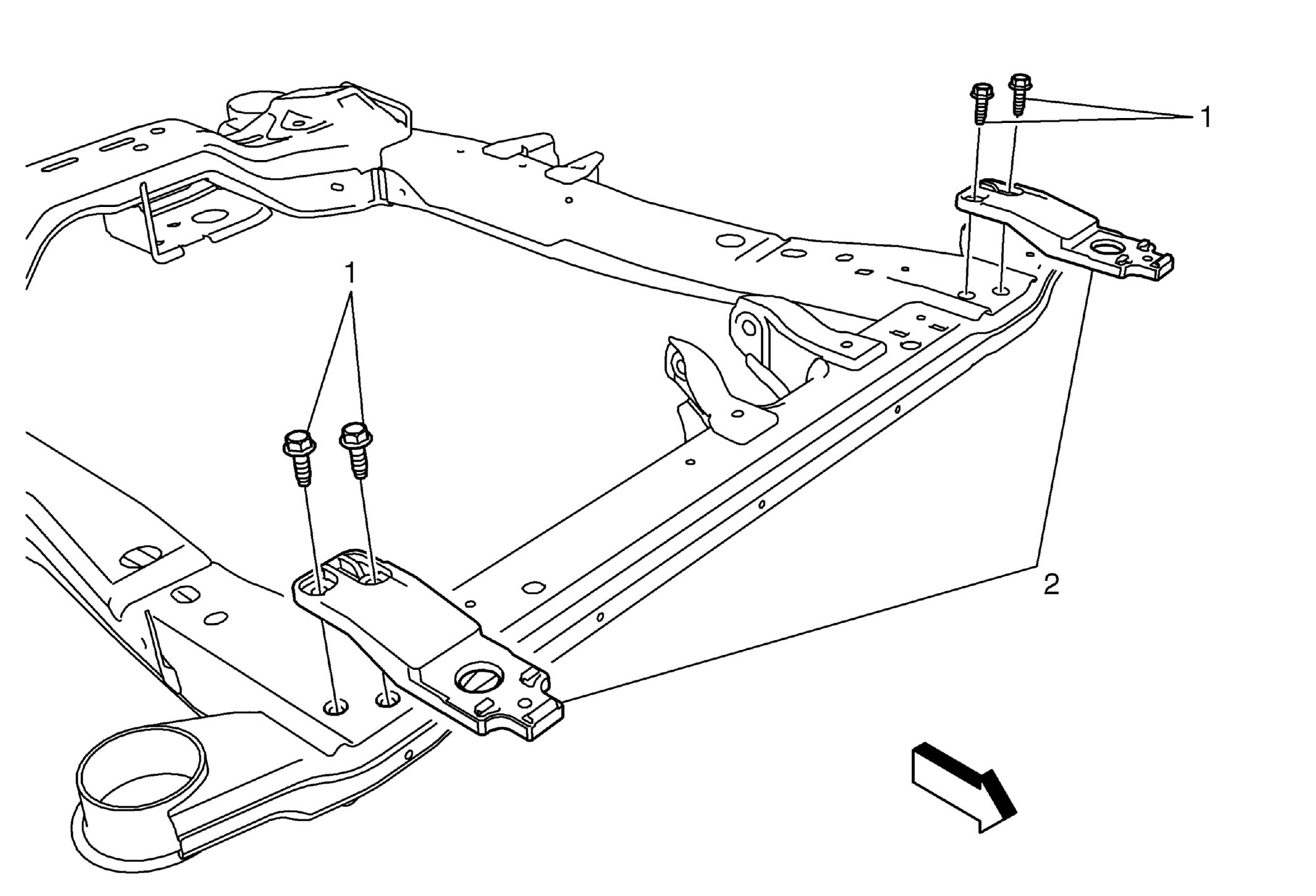

Fig 1: Radiator Support Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Support the radiator.
1	Radiator Support Bracket Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Radiator Support Bracket (Qty: 2)

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
Support the radiator.

Radiator Support Bracket Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 25 N.m (18 lb ft)

Radiator Support Bracket (Qty: 2)
