Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

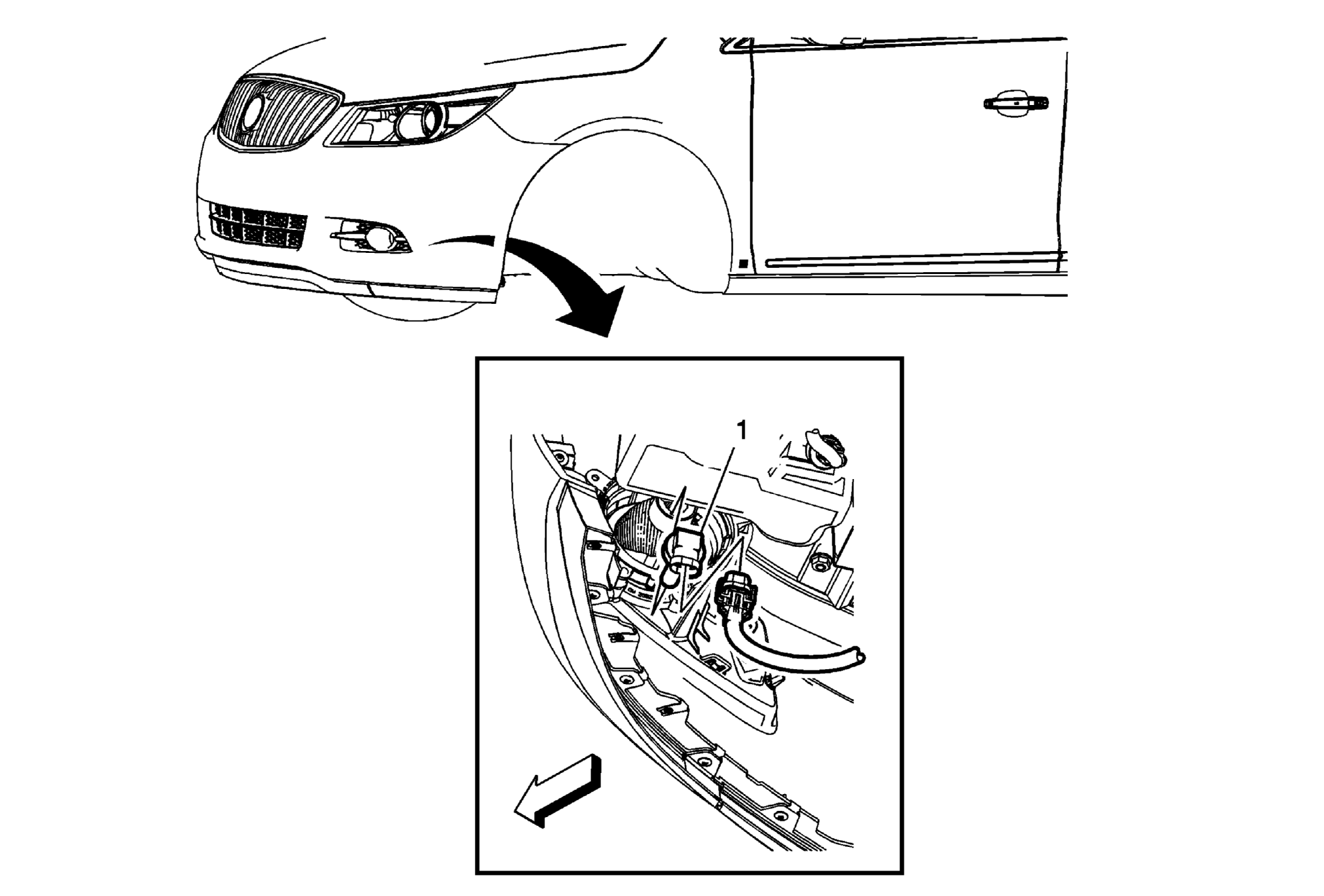

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheel house liner on the side the front fog lamp bulb will be serviced. Refer to Front Wheelhouse Front Liner Replacement Disconnect the front fog lamp bulb electrical connector.
1	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Tip: Rotate the bulb socket a quarter turn counter-clockwise in order to remove the bulb from the fog lamp projector.

Callout

Component Name

Preliminary Procedures

Remove the front wheel house liner on the side the front fog lamp bulb will be serviced. Refer to Front Wheelhouse Front Liner Replacement
Disconnect the front fog lamp bulb electrical connector.

Front Fog Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Tip: Rotate the bulb socket a quarter turn counter-clockwise in order to remove the bulb from the fog lamp projector.
