Windshield Washer Solvent Level Sensor Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

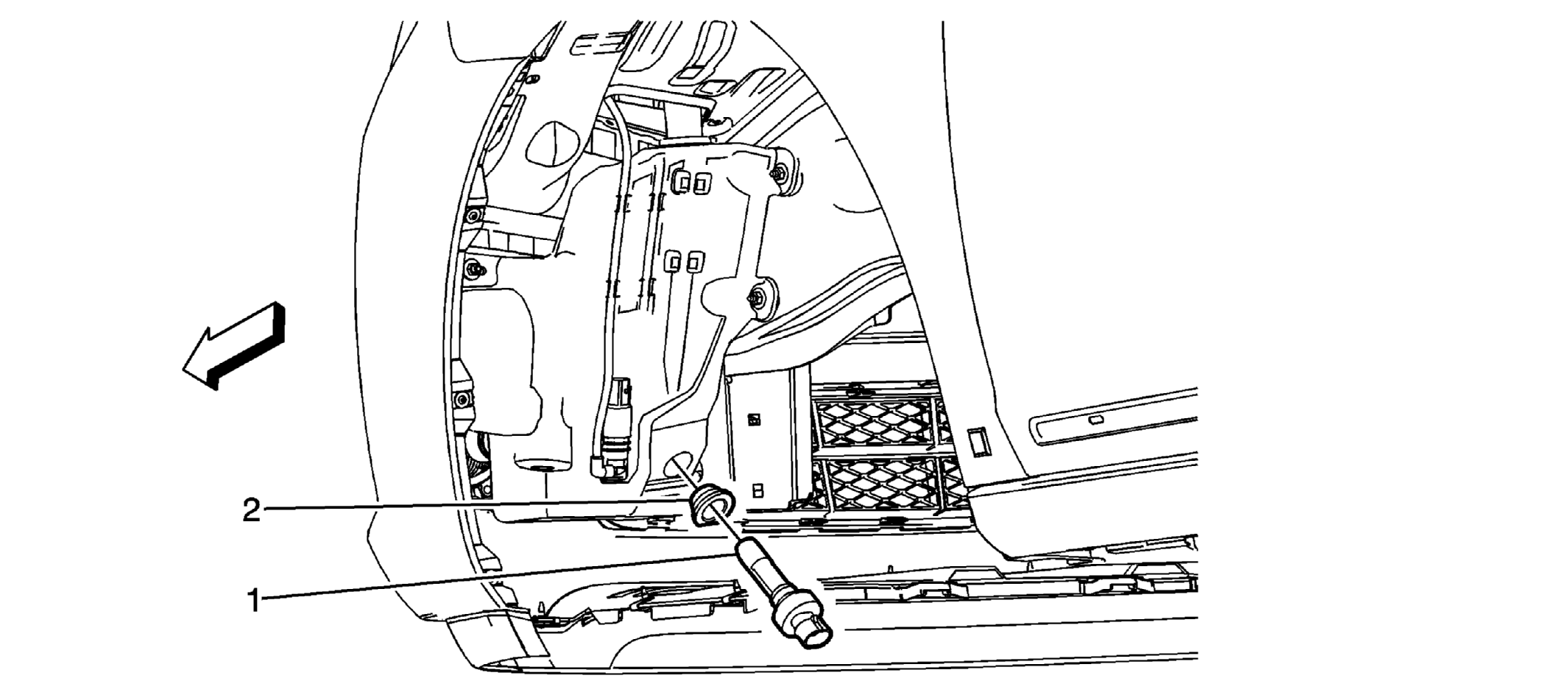

Fig 1: Windshield Washer Solvent Level Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the LF wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement . Disconnect the windshield washer level sensor electrical connector. Place a clean suitable drain pan under the level sensor area in order to contain loss windshield washer solvent. Use two medium sized flat-bladed tools under the level sensor grommet and pry in opposite, disengage the level sensor from the windshield washer container. Remove and discard the level sensor grommet.
1	Windshield Washer Solvent Container Level Sensor
2	Windshield Washer Solvent Container Level Sensor Grommet

Callout

Component Name

Preliminary Procedure

Remove the LF wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement .
Disconnect the windshield washer level sensor electrical connector.
Place a clean suitable drain pan under the level sensor area in order to contain loss windshield washer solvent.
Use two medium sized flat-bladed tools under the level sensor grommet and pry in opposite, disengage the level sensor from the windshield washer container.
Remove and discard the level sensor grommet.

Windshield Washer Solvent Container Level Sensor

Windshield Washer Solvent Container Level Sensor Grommet
