Mode Control Cam Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

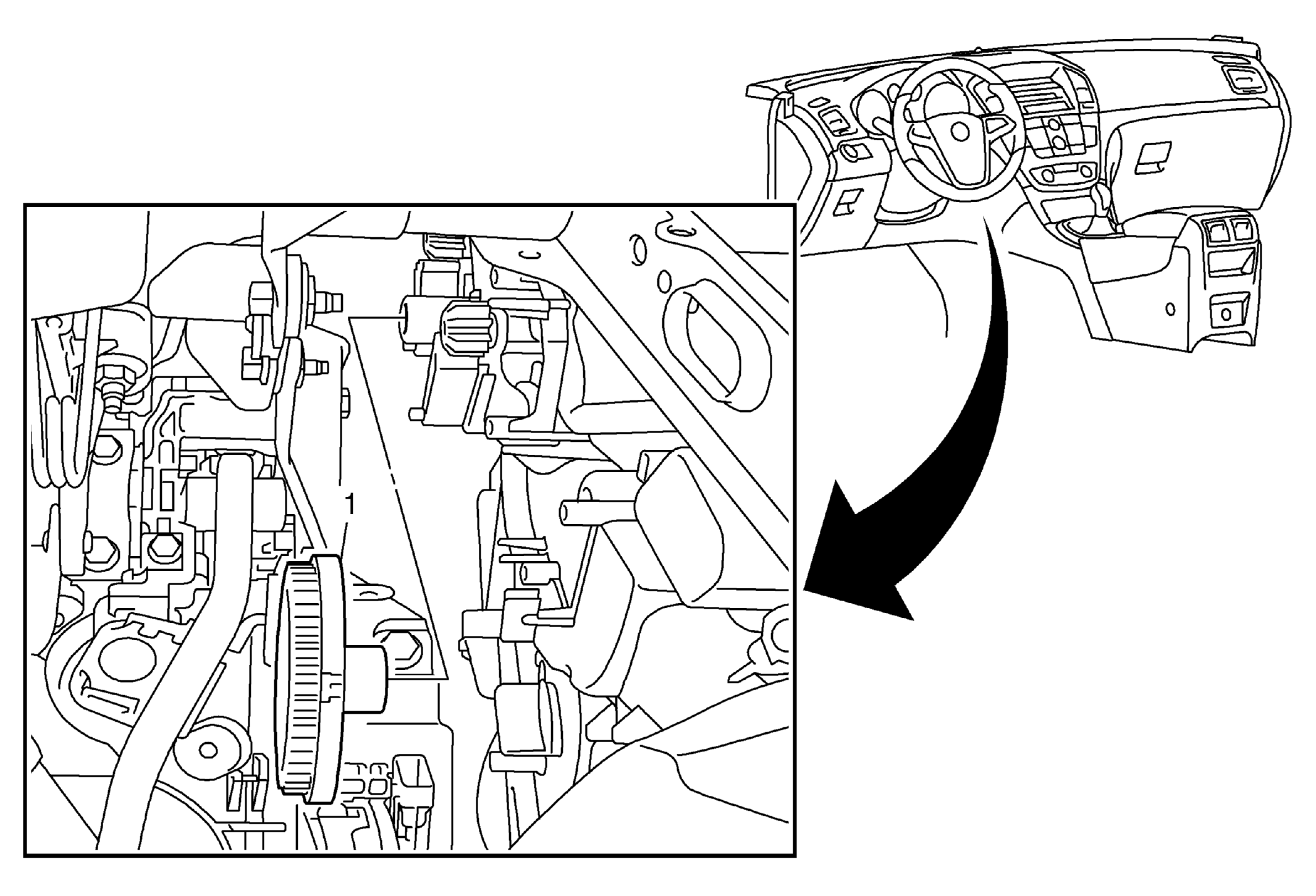

Fig 1: Mode Control Cam

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower trim panel - driver side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side . Remove the floor air outlet duct - driver side. Refer to Floor Air Outlet Duct Replacement - Left Side . Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement (Left Hand Drive) .
1	Mode Control Cam Procedure Release and pull off the control cam. The mode control cam can only be fitted in one position.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel lower trim panel - driver side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
Remove the floor air outlet duct - driver side. Refer to Floor Air Outlet Duct Replacement - Left Side .
Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement (Left Hand Drive) .

Mode Control Cam

Procedure

Release and pull off the control cam.
The mode control cam can only be fitted in one position.
