Rear Object Sensor Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

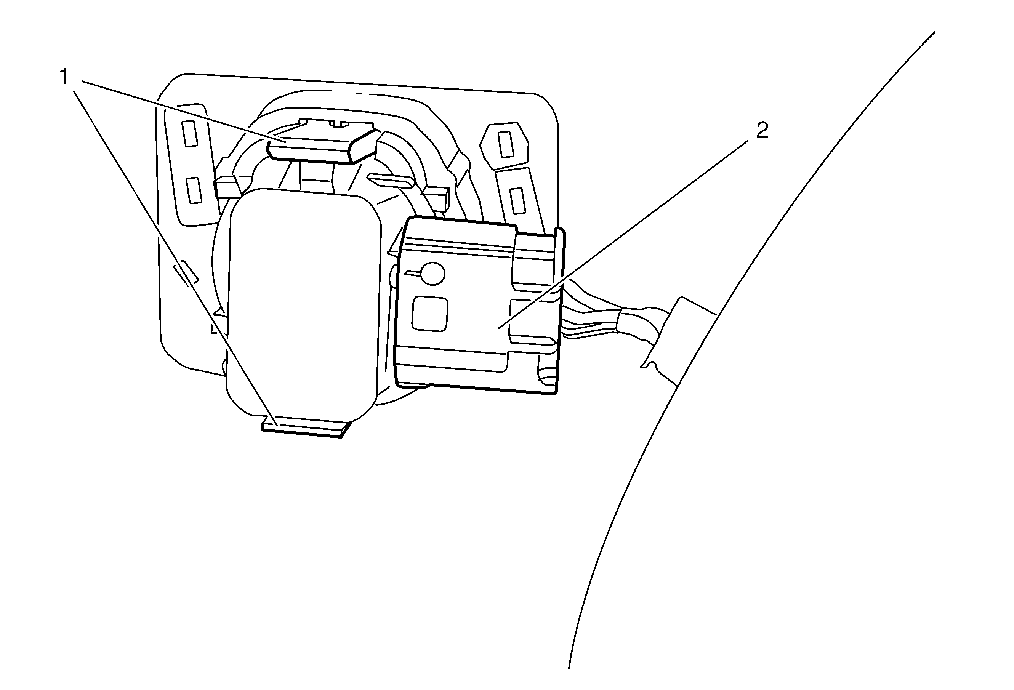

Fig 1: Rear Object Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Object Sensor Retainer (Qty: 2) Procedure Disconnect the rear object sensor electrical connector. Release the locking retainer from the rear object sensor support.
2	Rear Object Sensor

Callout

Component Name

Preliminary Procedure:
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Rear Object Sensor Retainer (Qty: 2)

Procedure

Disconnect the rear object sensor electrical connector.
Release the locking retainer from the rear object sensor support.

Rear Object Sensor
