Plenum Water Deflector Support Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

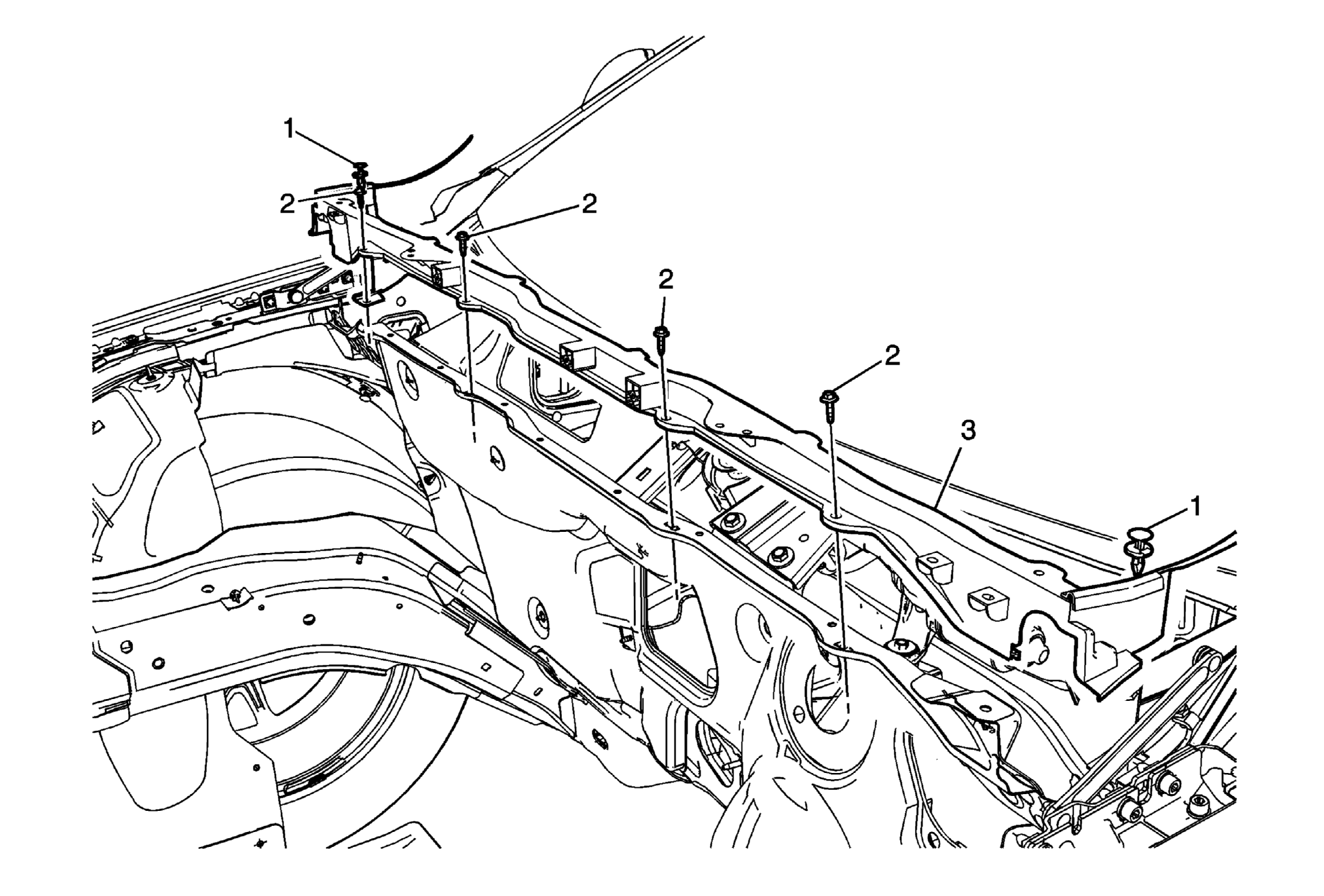

Fig 1: Plenum Water Deflector Support & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the hood assembly. Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement . Remove the air inlet grille panel water deflector. Refer to Air Inlet Grille Panel Water Deflector Replacement .
1	Push Pin Retainer (Qty: 2)
2	Plenum Water Deflector Support Screw (Qty: 4)
3	Plenum Water Deflector Support
