Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

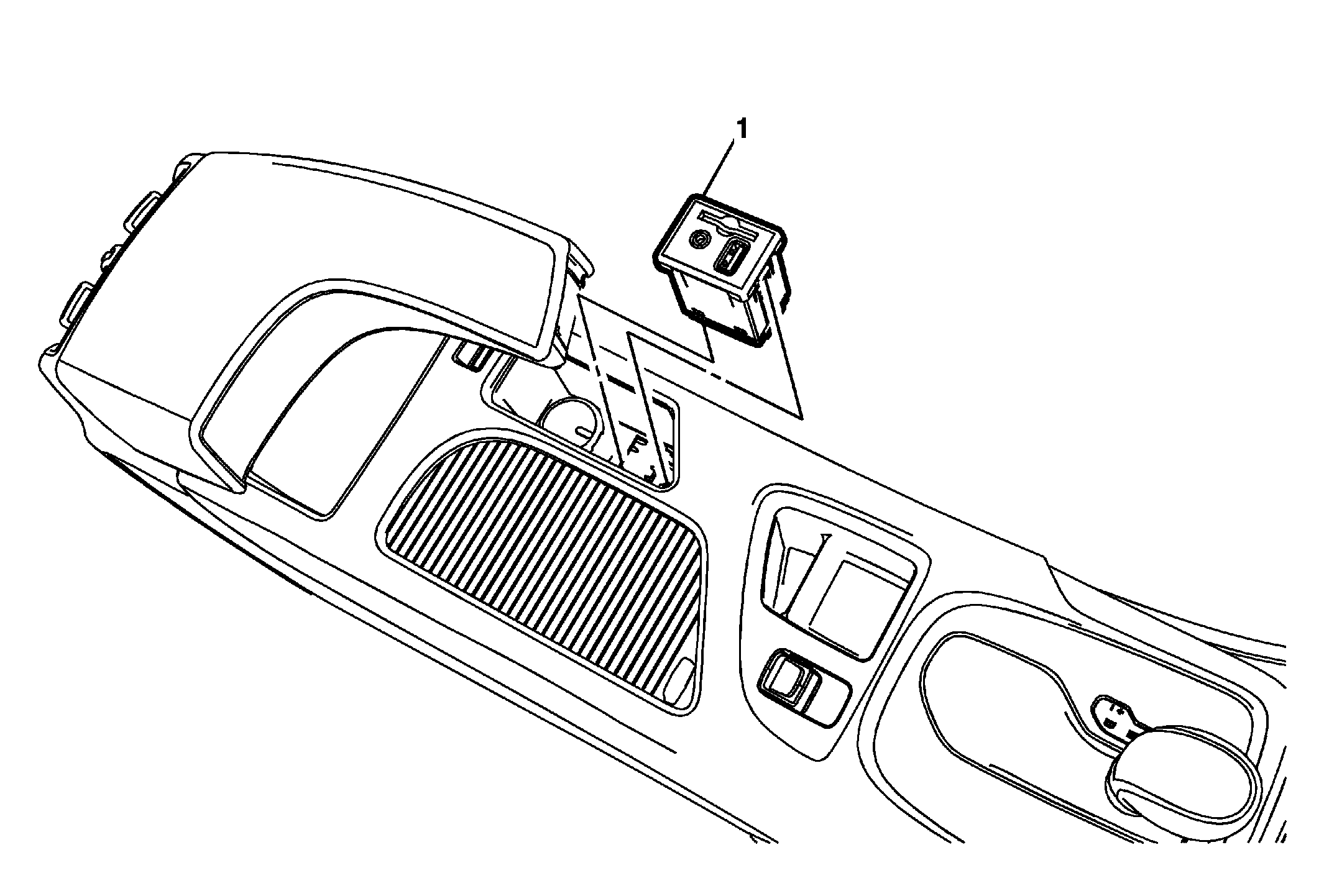

Fig 1: Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor upper console trim plate. Refer to Front Floor Upper Console Trim Plate Replacement .
1	Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Procedure Depress tabs to release the receptacle. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the front floor upper console trim plate. Refer to Front Floor Upper Console Trim Plate Replacement .

Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle

Procedure

Depress tabs to release the receptacle.
Disconnect the electrical connector.
