Drain Bolt/Sealing Bolt Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When installing the drain bolt and/or sealing bolt, always use a new washer.

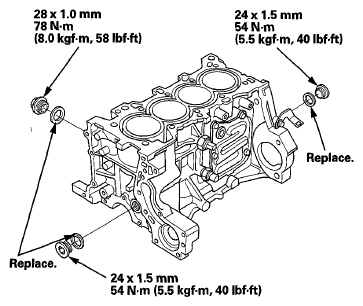

Fig 1: Drain and Sealing Bolt With Torque Specifications
G06429035Courtesy of AMERICAN HONDA MOTOR CO., INC.
