EPS Control Unit Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Do the 12 volt battery terminal disconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
Disconnect EPS control unit connector A (2P), connector B (2P), and connector C (16P).

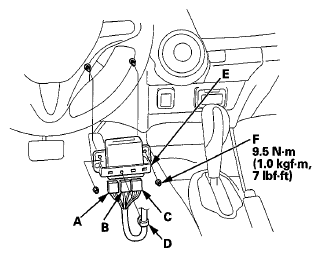

Fig 1: EPS Control Unit Bracket and Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness clip (D) from EPS control unit bracket (E).
Remove the nuts (F) from the EPS control unit bracket.
Remove the EPS control unit.
Install the EPS control unit in the reverse order of removal.
Do the 12 volt battery terminal reconnection procedure (see 12 VOLT BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Do the memorizing of the torque sensor neutral position (see MEMORIZING THE TORQUE SENSOR NEUTRAL POSITION ).
After installation, start the engine, allow it to idle, and turn the steering wheel to full left or full right. Check that the EPS indicator does not come on.
