Drive Motor Generator Control Module Tray Replacement

WARNING: This page is about a different variant/trim than selected.

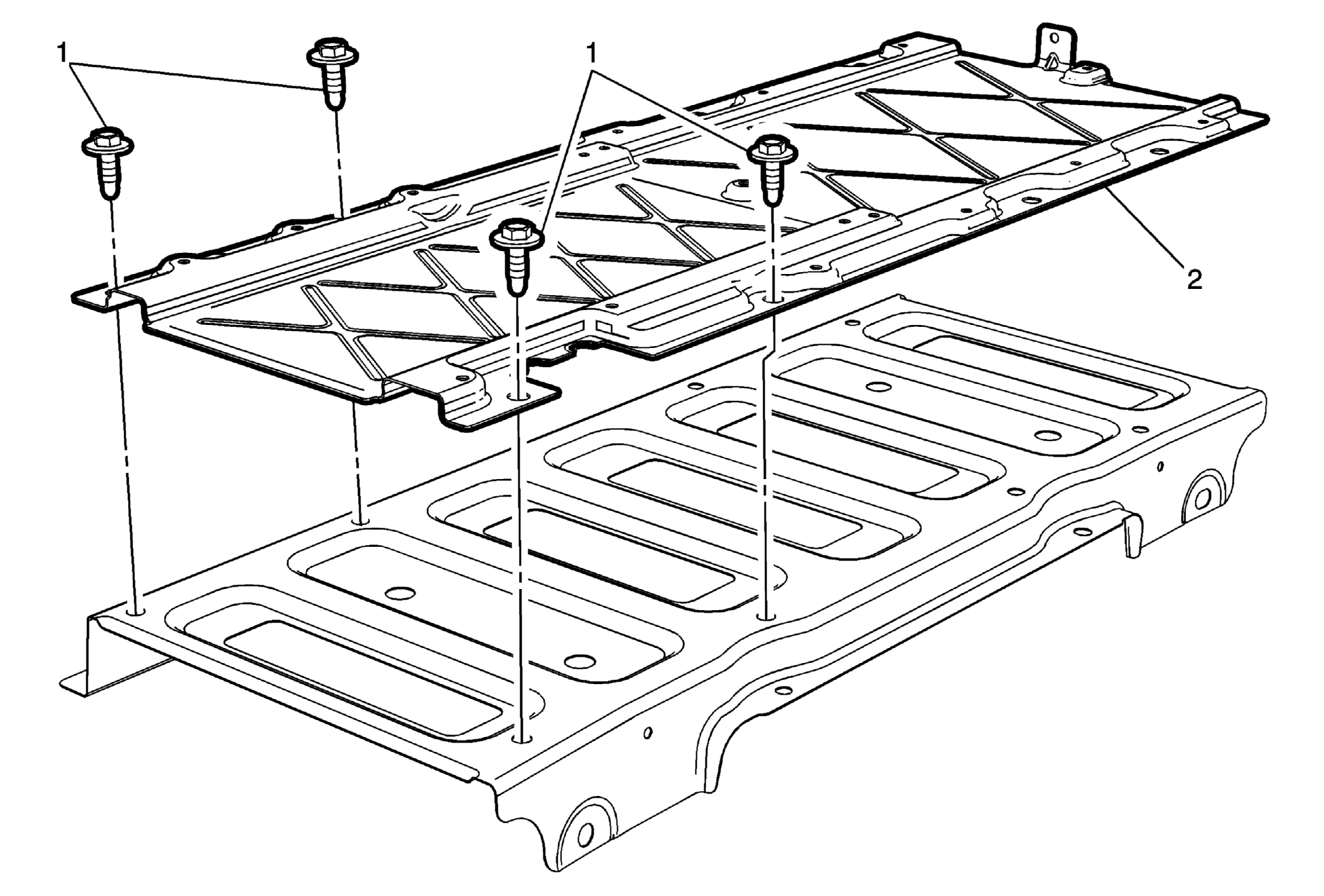

Fig 1: Drive Motor Generator Control Module Tray

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Ensure all High Voltage safety procedures are followed. Failure to follow the procedure exactly as written may result in serious injury or death. WARNING: Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed. The High Voltage Disabling procedure will perform the following tasks: Identify how to disable high voltage. Identify how to test for the presence of high voltage. Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed. Before working on any high voltage system, be sure to wear the following Personal Protection Equipment: Safety glasses with appropriate side shields when within 15 meters (50 feet) of the vehicle, either indoors or outdoors. Certified and up-to-date Class "0" Insulation gloves rated at 1000V with leather protectors. Visually and functionally inspect the gloves before use. Wear the Insulation gloves with leather protectors at all times when working with the high voltage battery assembly, whether the system is energized or not. Failure to follow the procedures exactly as written may result in serious injury or death. Preliminary Procedure Remove the battery energy control module. Refer to Battery Energy Control Module Replacement . Remove the generator control and battery module. Refer to Generator Control and Battery Module Replacement and Shipping Preparation . Remove the generator control module cooling air inlet duct. Refer to Generator Control Module Cooling Air Inlet Duct Replacement
1	Drive Motor Generator Control Module Cable Tray Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft).
2	Drive Motor Generator Control Module Cable Tray NOTE: Replace the drive motor generator control module seal.

Callout

Component Name

WARNING:

Ensure all High Voltage safety procedures are followed. Failure to follow the procedure exactly as written may result in serious injury or death.

WARNING:

Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed.

The High Voltage Disabling procedure will perform the following tasks:

Identify how to disable high voltage.
Identify how to test for the presence of high voltage.
Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed.

Before working on any high voltage system, be sure to wear the following Personal Protection Equipment:

Safety glasses with appropriate side shields when within 15 meters (50 feet) of the vehicle, either indoors or outdoors.
Certified and up-to-date Class "0" Insulation gloves rated at 1000V with leather protectors.
- Visually and functionally inspect the gloves before use.
- Wear the Insulation gloves with leather protectors at all times when working with the high voltage battery assembly, whether the system is energized or not.

Failure to follow the procedures exactly as written may result in serious injury or death.

Preliminary Procedure

Remove the battery energy control module. Refer to Battery Energy Control Module Replacement .
Remove the generator control and battery module. Refer to Generator Control and Battery Module Replacement and Shipping Preparation .
Remove the generator control module cooling air inlet duct. Refer to Generator Control Module Cooling Air Inlet Duct Replacement

Drive Motor Generator Control Module Cable Tray Fasteners (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft).

Drive Motor Generator Control Module Cable Tray

NOTE:

Replace the drive motor generator control module seal.
