Installation Procedure

WARNING: This page is about a different variant/trim than selected.

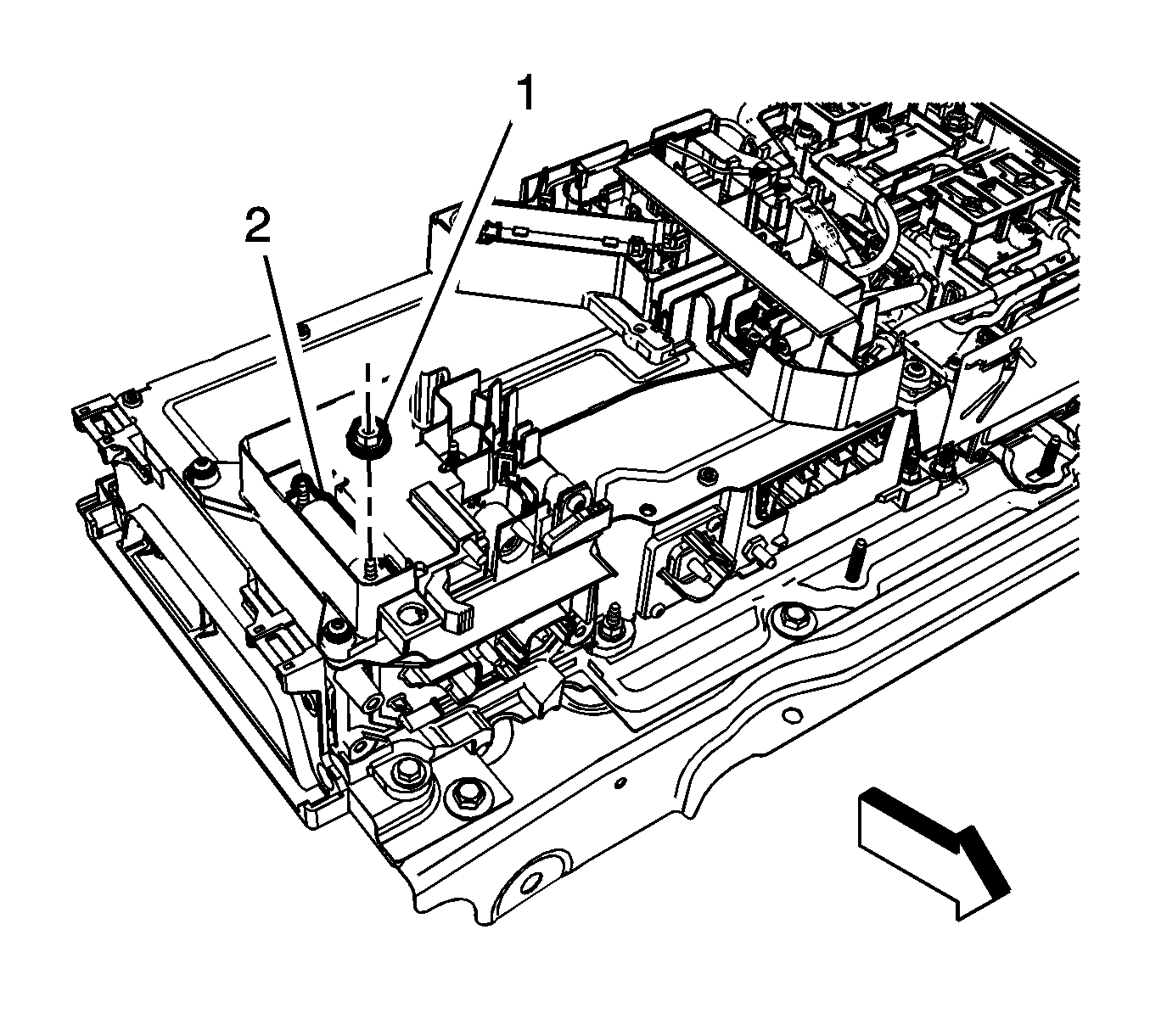

Fig 1: Generator Fuse Fastener

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the generator battery fuse (2) and tighten the fastener (1) to 9 N.m (80 lb in).

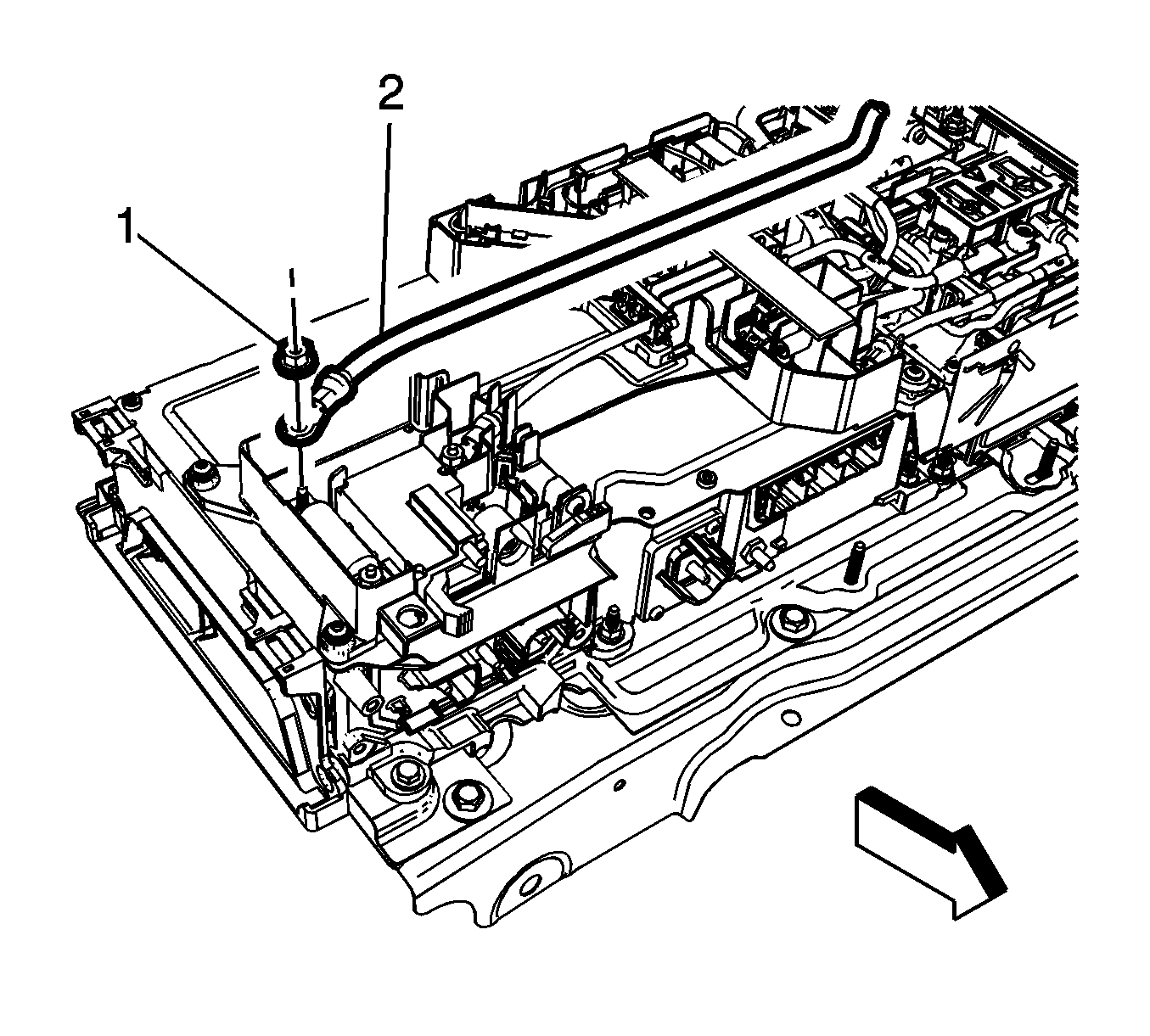

Fig 2: High Voltage Fasteners And High Voltage Cables

Courtesy of GENERAL MOTORS COMPANY

Install the high voltage cable (2) to the generator battery fuse and tighten the fastener (1) to 9 N.m (80 lb in).
Enable the hybrid battery. Refer to High Voltage Enabling .
