Installation Procedure
WARNING: This page is about a different variant/trim than selected.

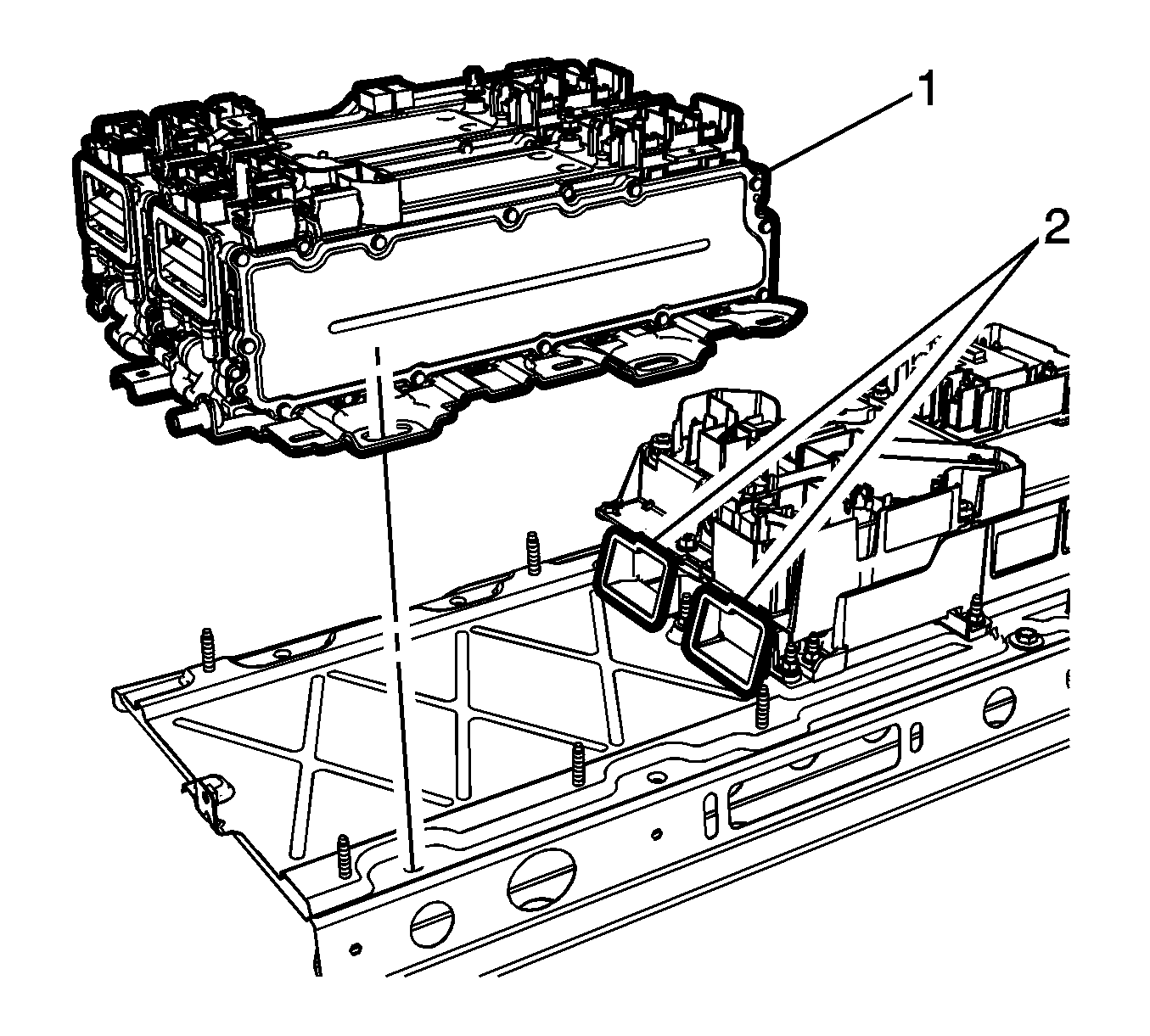

- With the help of a technician, install the generator battery (1) to the mounting studs.

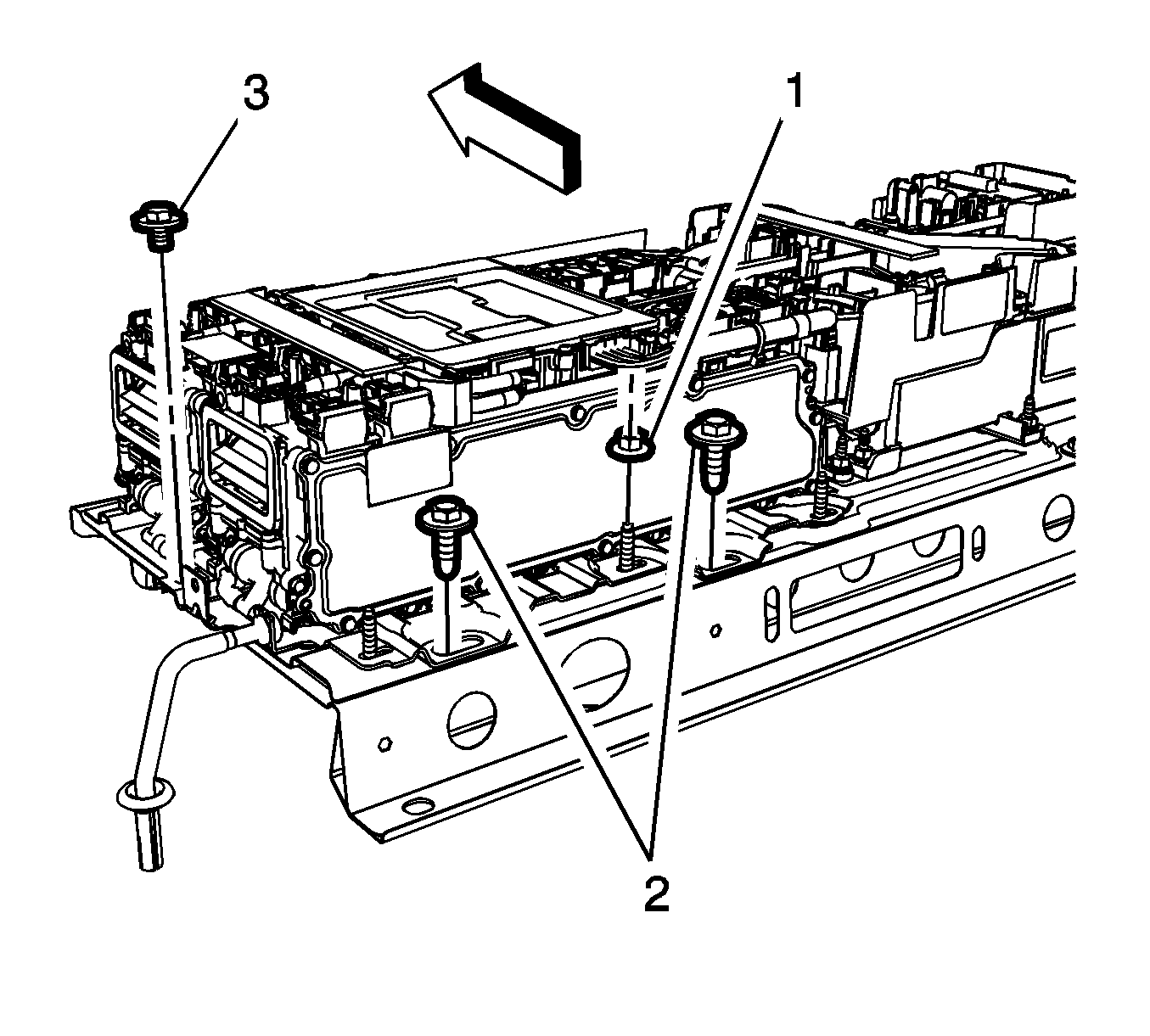

- Slide the generator battery towards the intermediate duct seals and install the locating fastener (3). Tighten the fastener (3) to 22 N.m (16 lb ft).
- Install the generator battery fastener (2) and tighten to 22 N.m (16 lb ft).
- Install the generator battery fasteners (2) and tighten to 22 N.m (16 lb ft).

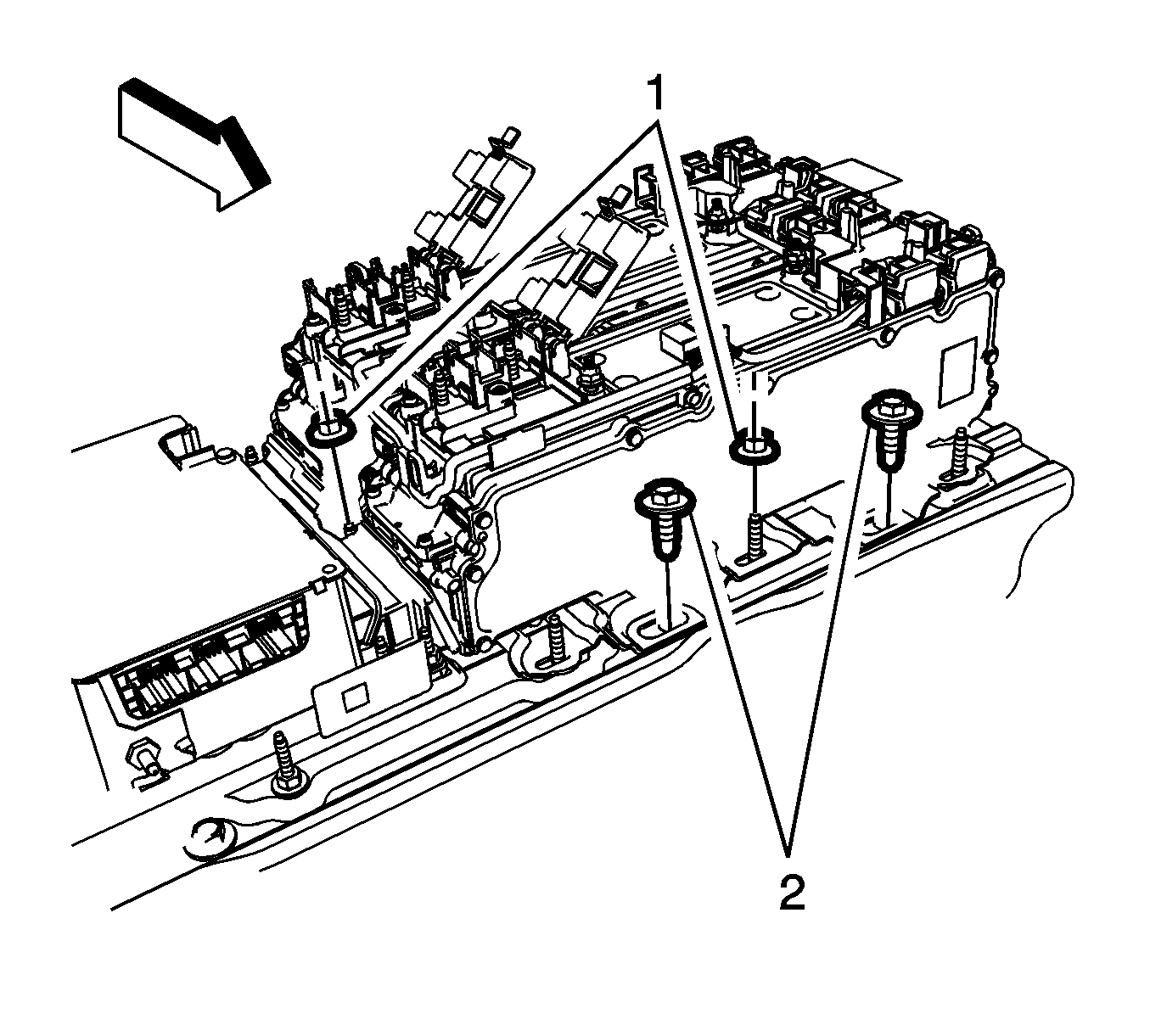

- Install the generator battery fasteners (1) and tighten to 22 N.m (16 lb ft).
- Install the generator battery fasteners (2) and tighten to 22 N.m (16 lb ft).
- Install the battery energy control module. Refer to Battery Energy Control Module Replacement .
- Install the battery energy control module wiring junction block. Refer to Battery Energy Control Module Wiring Junction Block Replacement .
- Install the battery energy control module harness. Refer to Battery Energy Control Module Wiring Harness Replacement (BDU, BECM and BPIM) , Battery Energy Control Module Wiring Harness Replacement (HV Measuring Harness 1 and 2) .
- Enable the hybrid battery. Refer to High Voltage Enabling .
CAUTION:
Refer to Fastener Caution .
