Installation Procedure
WARNING: This page is about a different variant/trim than selected.

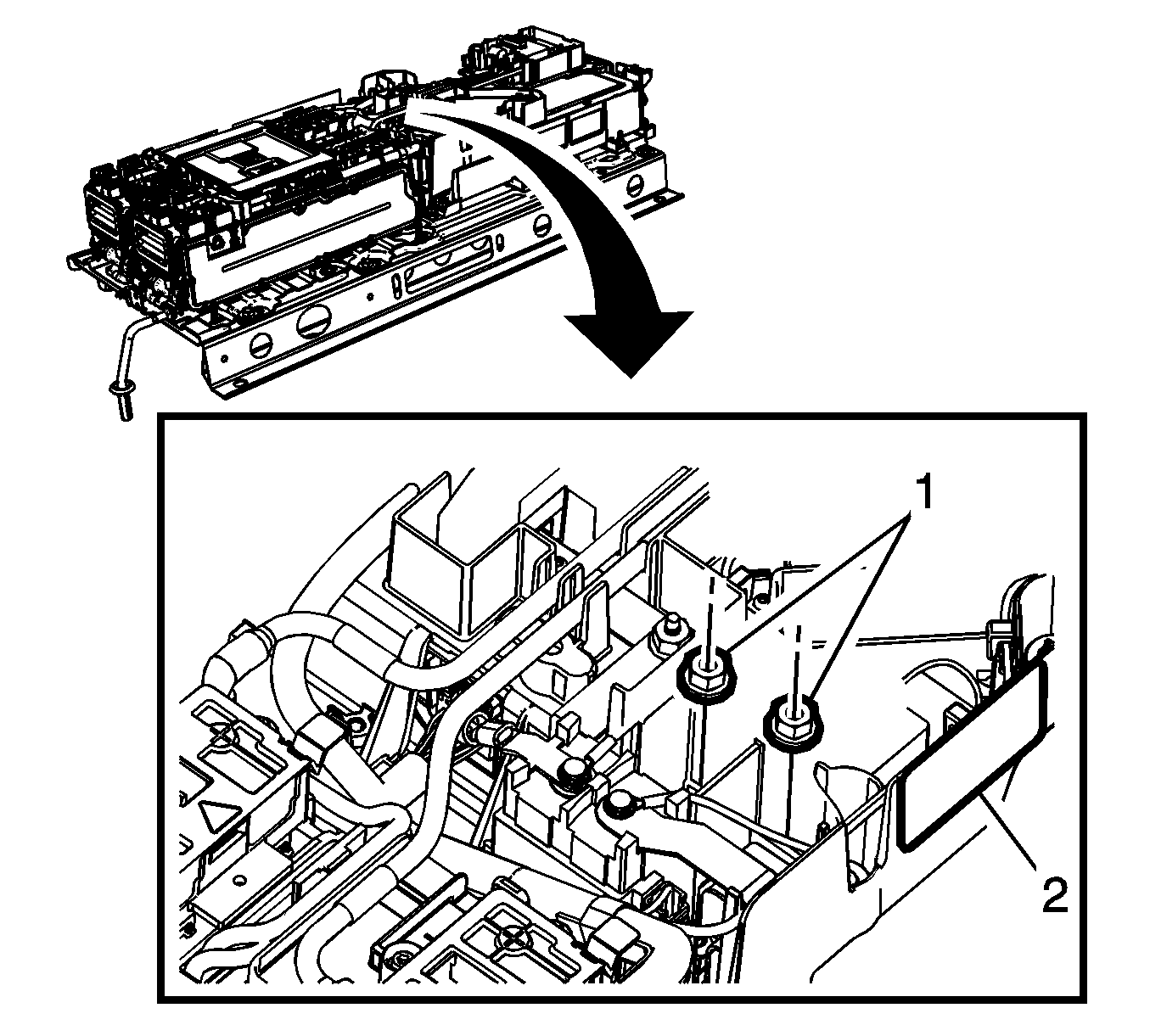

- Inspect the foam seals for tears and leak paths, to ensure they will not compromise the internal air flow through the generator control module assembly.

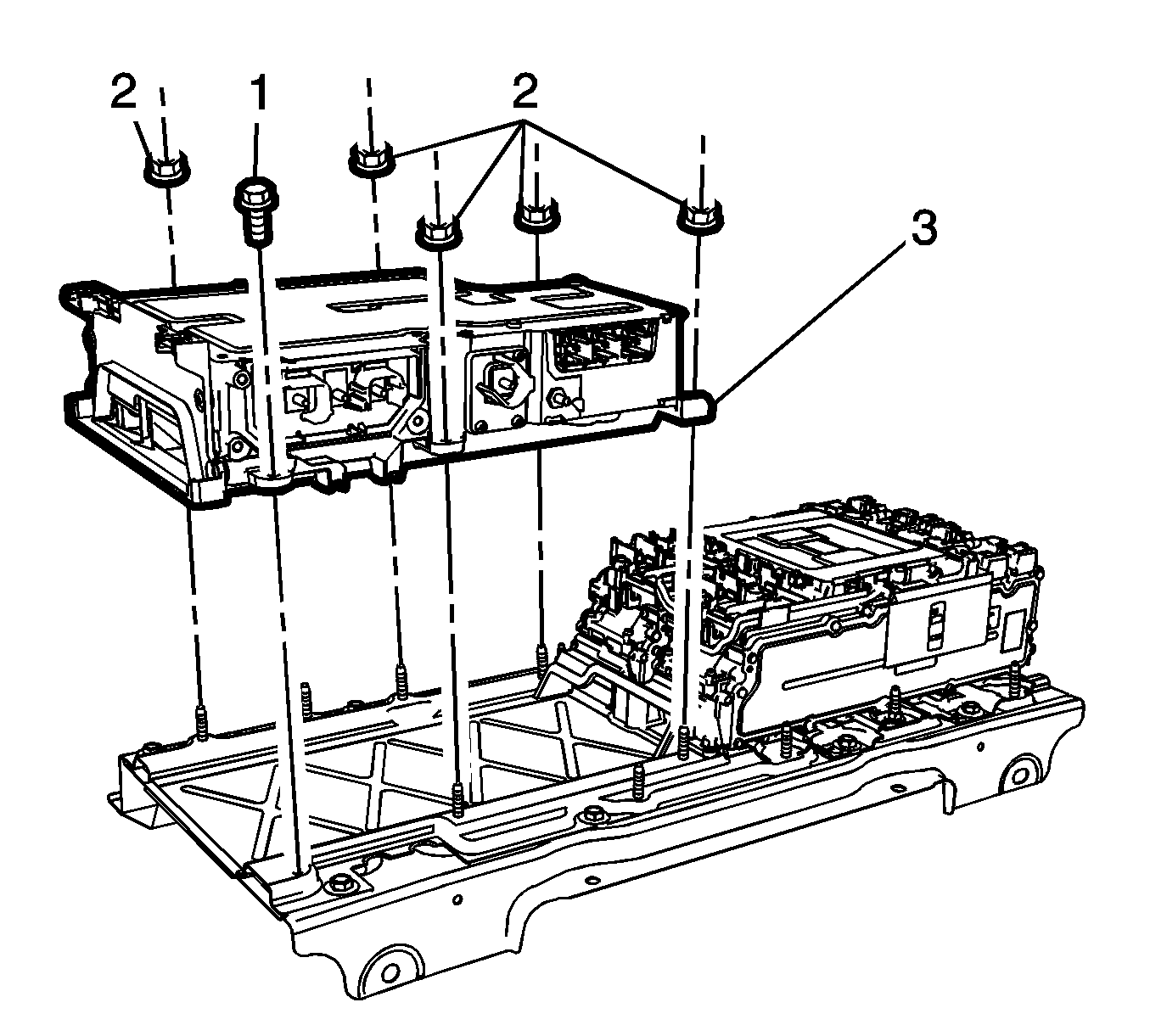

- Install the generator control module (3) to the support tray studs. Tighten the fastener (1) to 9 N.m (80 lb in).
- Tighten the remaining fasteners (2) to 9 N.m (80 lb in).

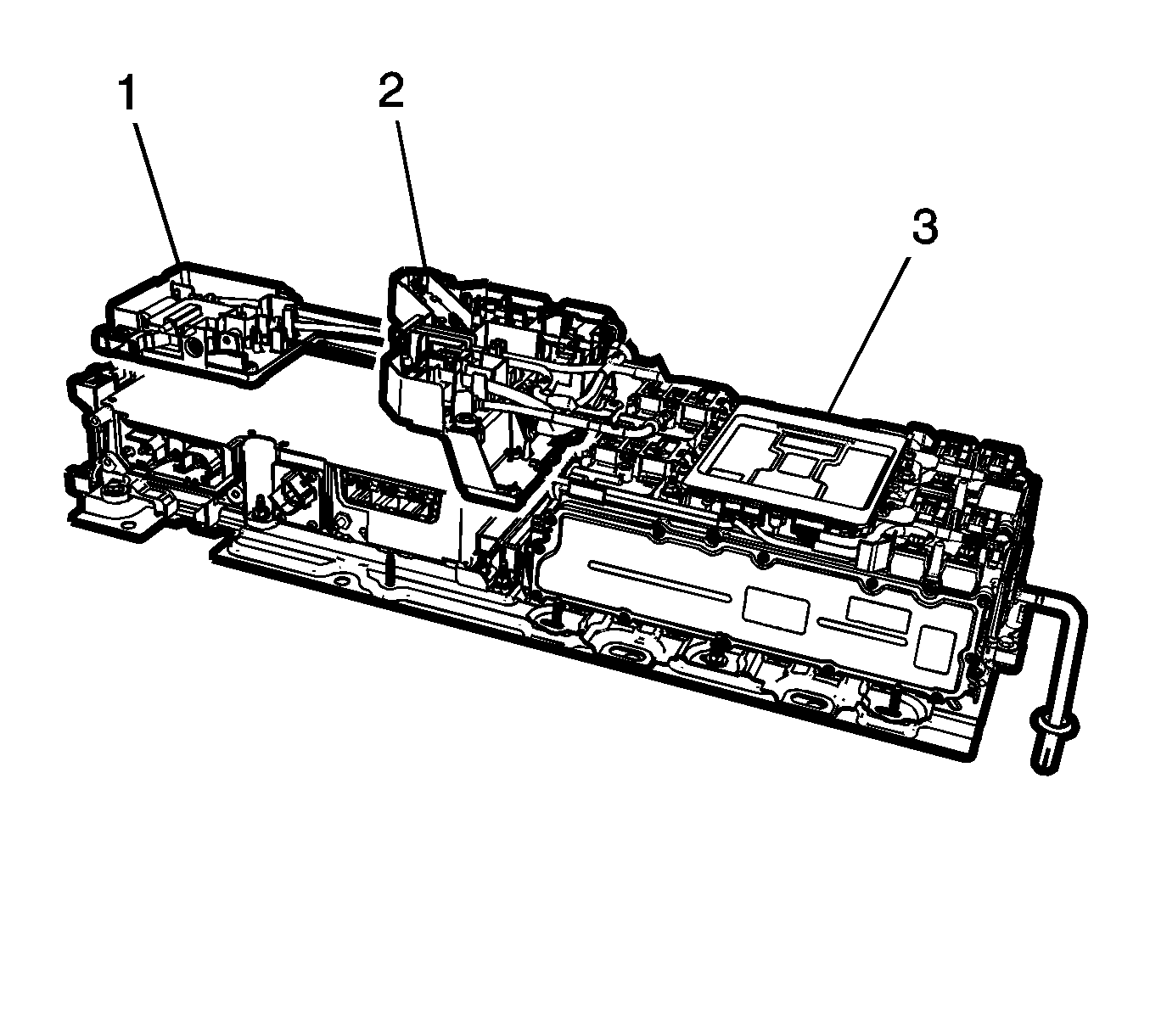

- Place the drive motor battery wire junction block relay (1) and the battery energy control module wiring junction block (2), on top of the generator control module.

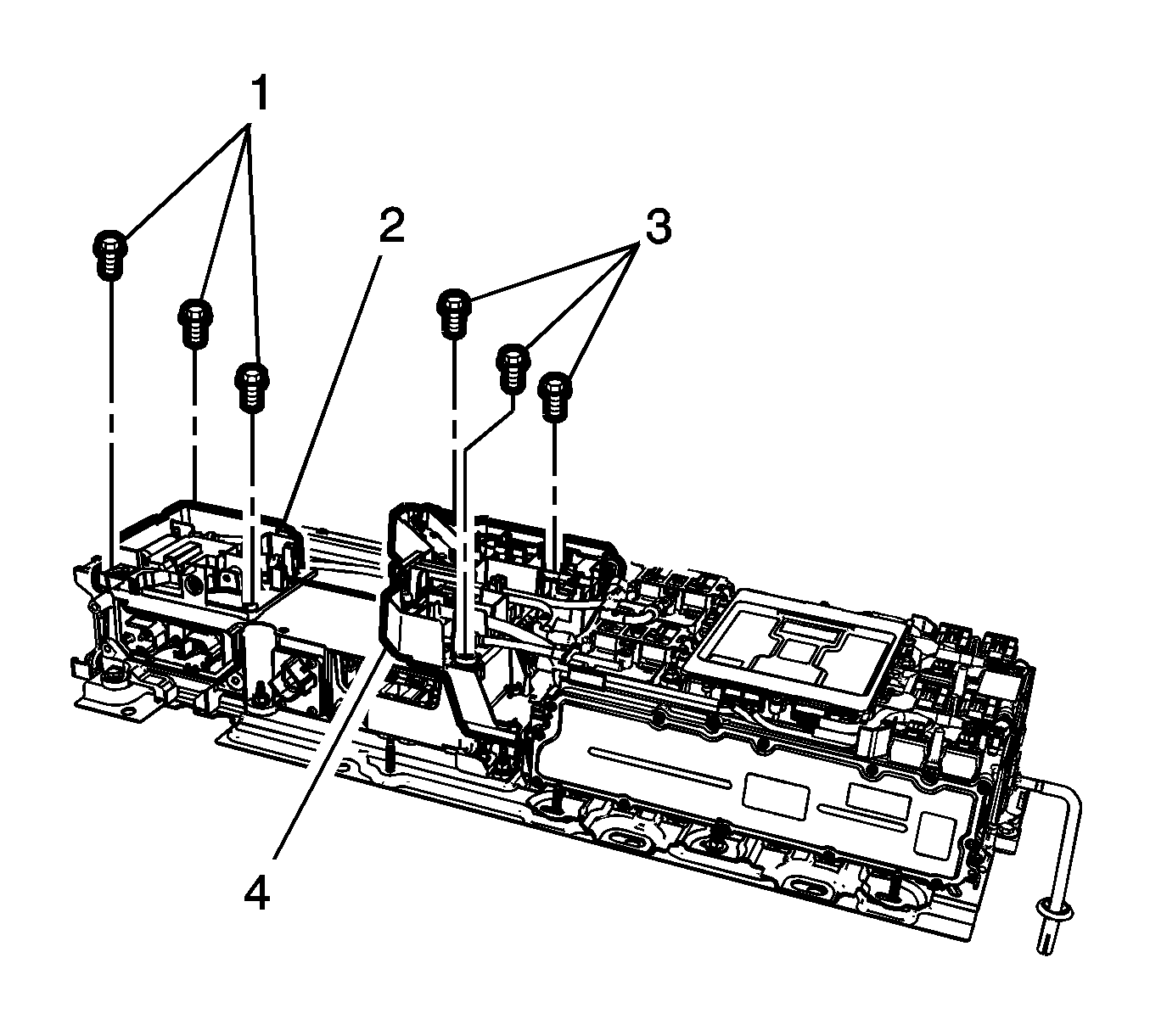

- Install the high voltage bus fasteners (1) to the battery energy control module wiring junction block (2) and tighten to 9 N.m (80 lb in).
- Install the battery energy control module wiring junction block fasteners (1) and tighten to 9 N.m (80 lb in).
- Install the battery energy control module wiring junction block fasteners (2) and tighten to 9 N.m (80 lb in).
- Connect the generator control module connector (1).
- Enable the high voltage at the A4 hybrid battery pack. Refer to High Voltage Enabling .
- Program the generator control module. Refer to Control Module References .
CAUTION:
Refer to Fastener Caution .
NOTE:
Do not slide the generator control module on the foam seals as the seals may become damaged.
