Generator Control Module Coolant Pump Hose Replacement

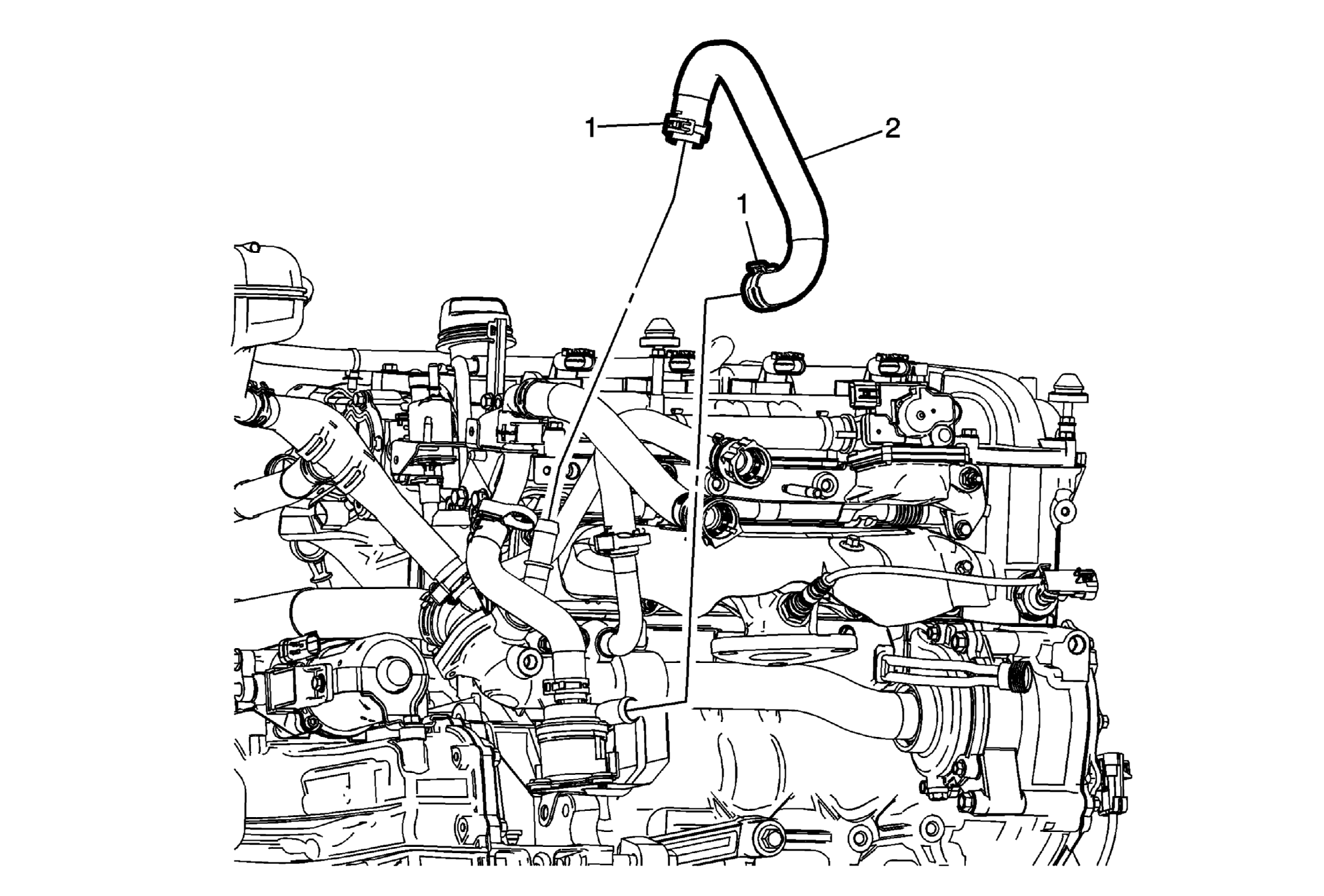

Fig 1: Generator Control Module Coolant Pump Hose

Courtesy of GENERAL MOTORS COMPANY

Generator Control Module Coolant Pump Hose Replacement

Callout	Component Name
Preliminary Procedures  Remove intake manifold cover. Refer to. Intake Manifold Cover Replacement
1	Hose clamps (Qty2)
2	Heater coolant pump hose.
